SA (Spectrum Analyzer) Mode (Option 233–Mixed Analyzers)FUTURE
SA Mode Settings

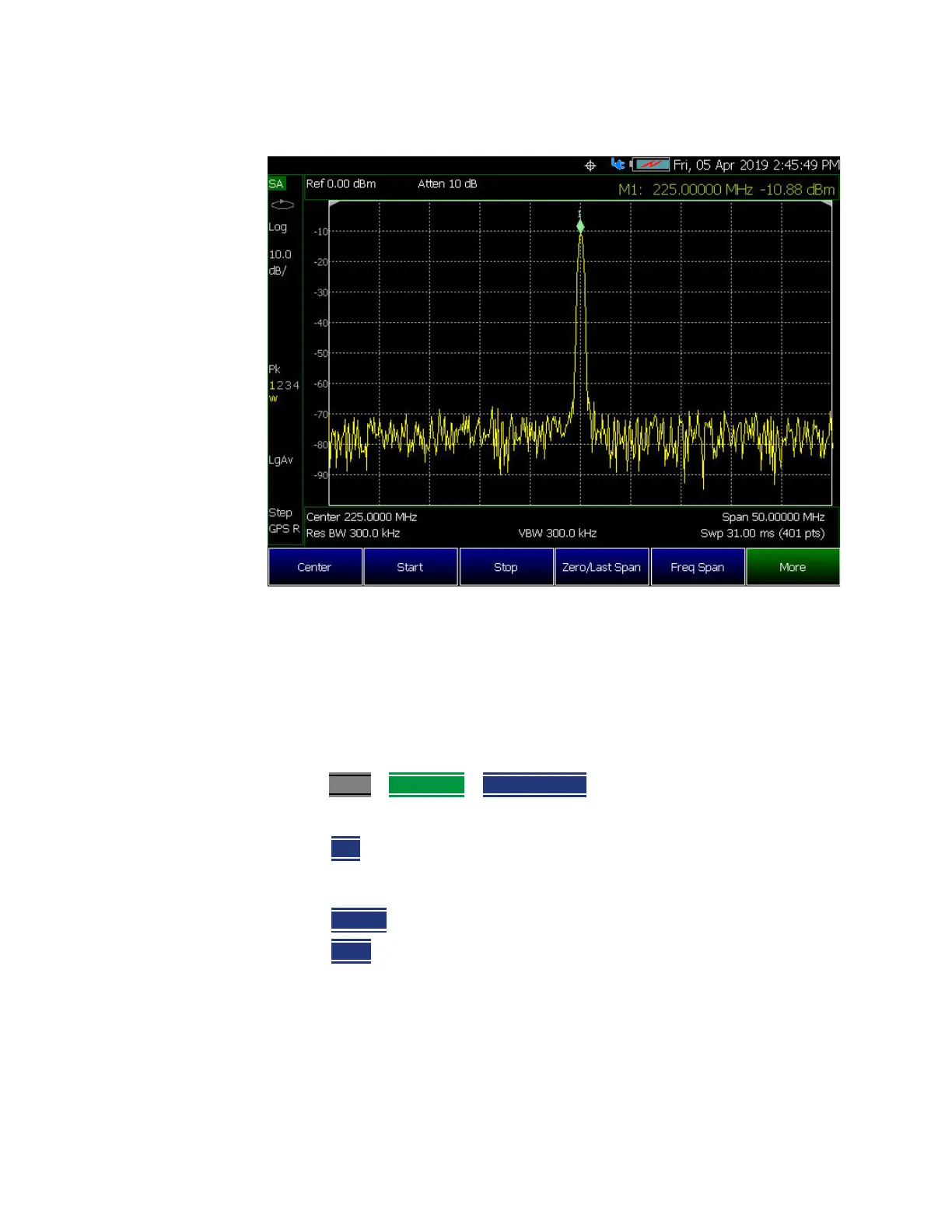

Figure 9-12 IF Output Wide with CF=225 MHz (Requires Option B04 or Option B10)
How to select IF Output
The IF Output signal is useful only in Zero Span. Learn more about Zero Span in
“Zero Span Measurements” on page 195.
At least one sweep must be made in order to tune the FieldFox.
1. Press BW 2
> Advanced > IF Output Use
2. Then choose from the following:
— OFF The translated IF signal at the IF OUT connector is no longer
guaranteed to be centered at 33.75 (Narrow) or 225 MHz (Wide).
Requires Option B04 or B10 respectively.
—
Narrow The IF output signal has approximately 10 MHz bandwidth.
—
Wide Requires B04 or B10. The IF output signal has approximately
100 MHz bandwidth with either B04 or Option B10.
