244 Keysight N9915-90020 User’s Guide
SA (Spectrum Analyzer) Mode (Option 233–Mixed Analyzers)FUTURE
Spectrum Emission Mask (SEM) — (SA Mode Only)
— Spectrum Emission Mask Pass/Fail – A PASS indicates the displayed SEM
is within the current boundaries specified. A FAIL indicates the current
signal fails with the specified parameters.

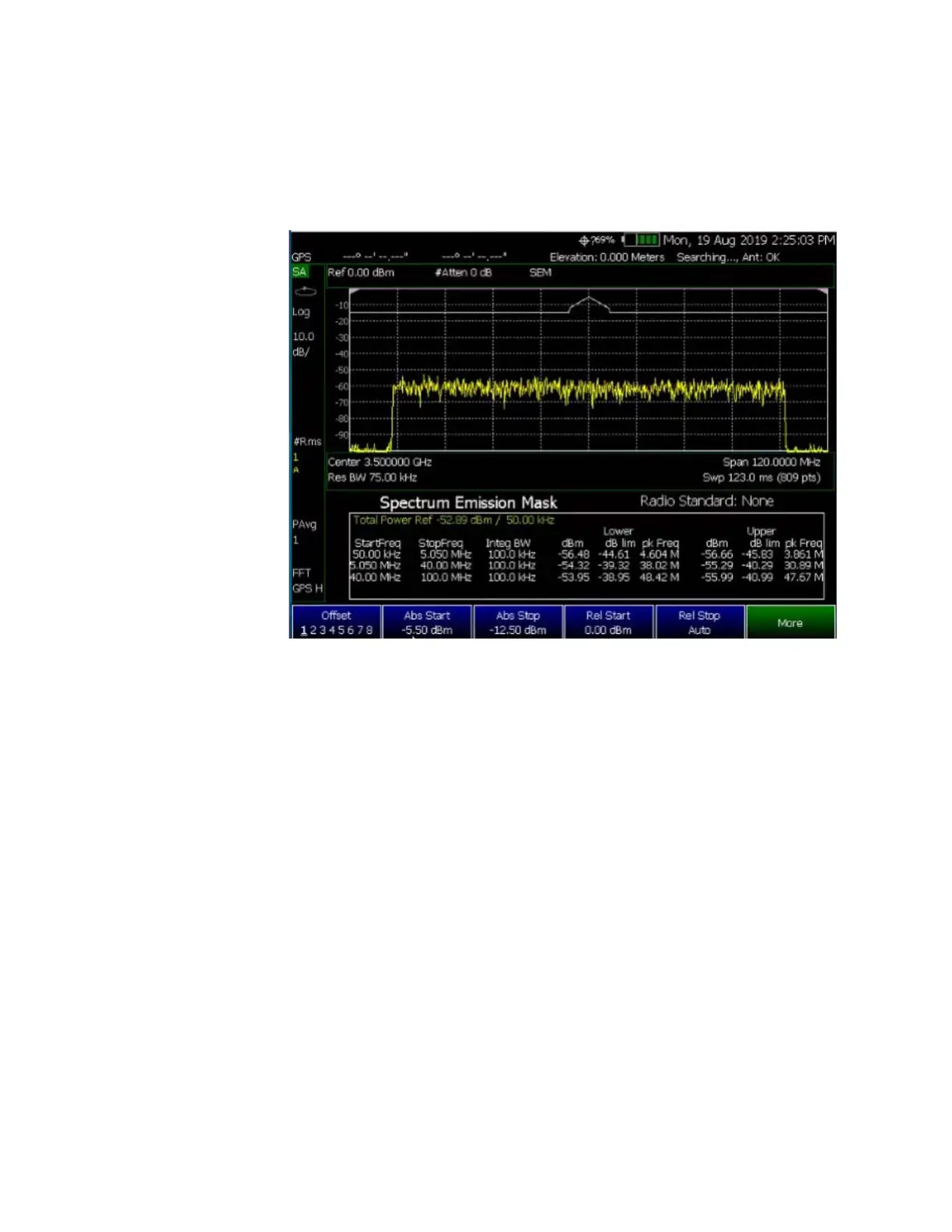

Figure 9-27 SEM Example
