Keysight N9915-90020 User’s Guide 379
Over–the–Air Measurements (OTA) – LTE FDD Option 370, LTE TDD Option 371, 5G TF
Option 377, 5G NR / 5G NR EVM Conducted Option 378
How to Set Up Over–the–Air (OTA) Mode Settings

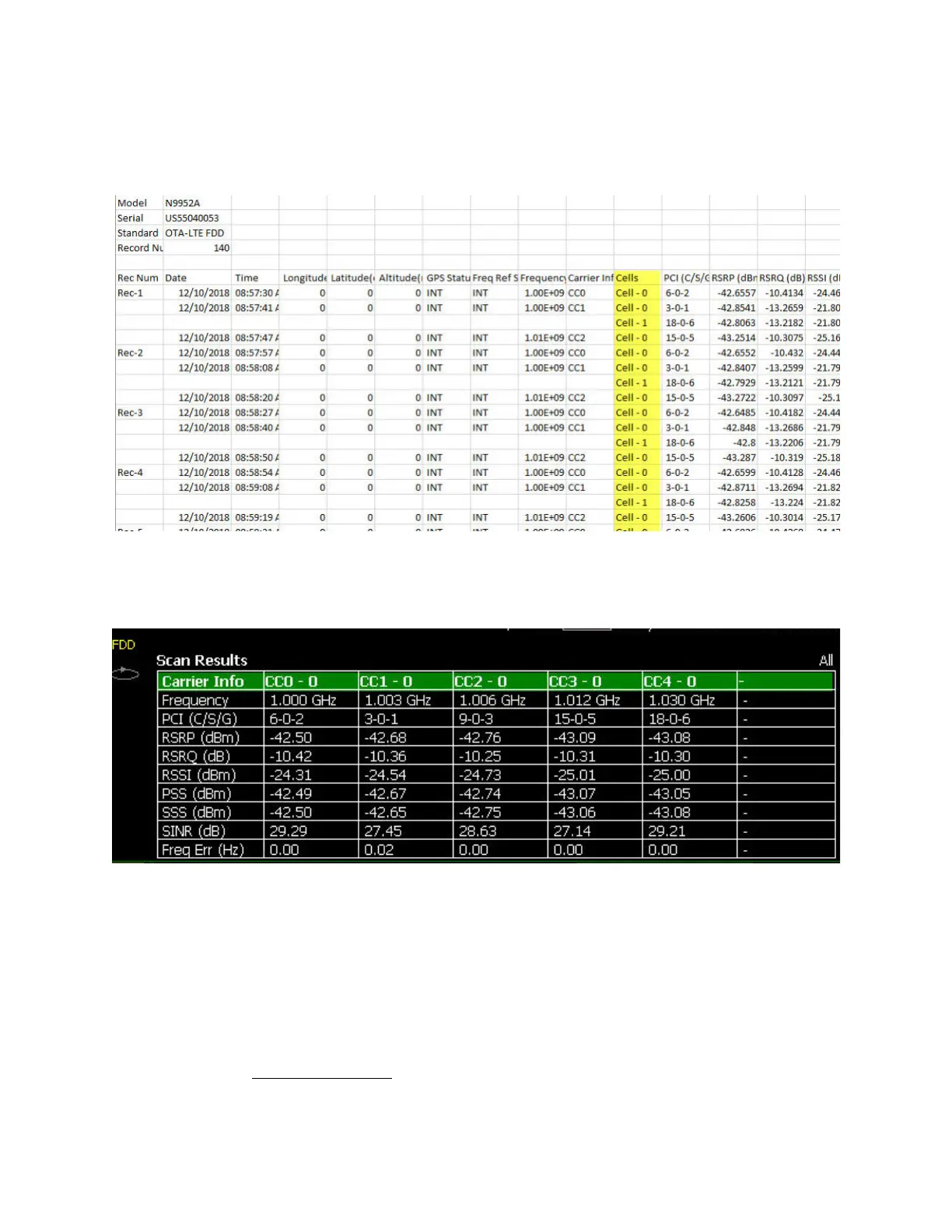

Figure 13-17 Single cell selected, but other cells displayed when CC0 to CCn has been
enabled. If ALL is selected, only the CC with the highest power is displayed.
(Not all of the detected data is displayed.)
Figure 13-18 Example of the LTE FDD Scan Results Table (Five CCs and one cell) – LTE TDD
is similar
1
1. When multiple component carriers are selected, the results of the component carrier (CC) with the highest
power is displayed.
