Keysight N9915-90020 User’s Guide 413

Over–the–Air Measurements (OTA) – LTE FDD Option 370, LTE TDD Option 371, 5G TF

Option 377, 5G NR / 5G NR EVM Conducted Option 378

About the Auto-Range Feature

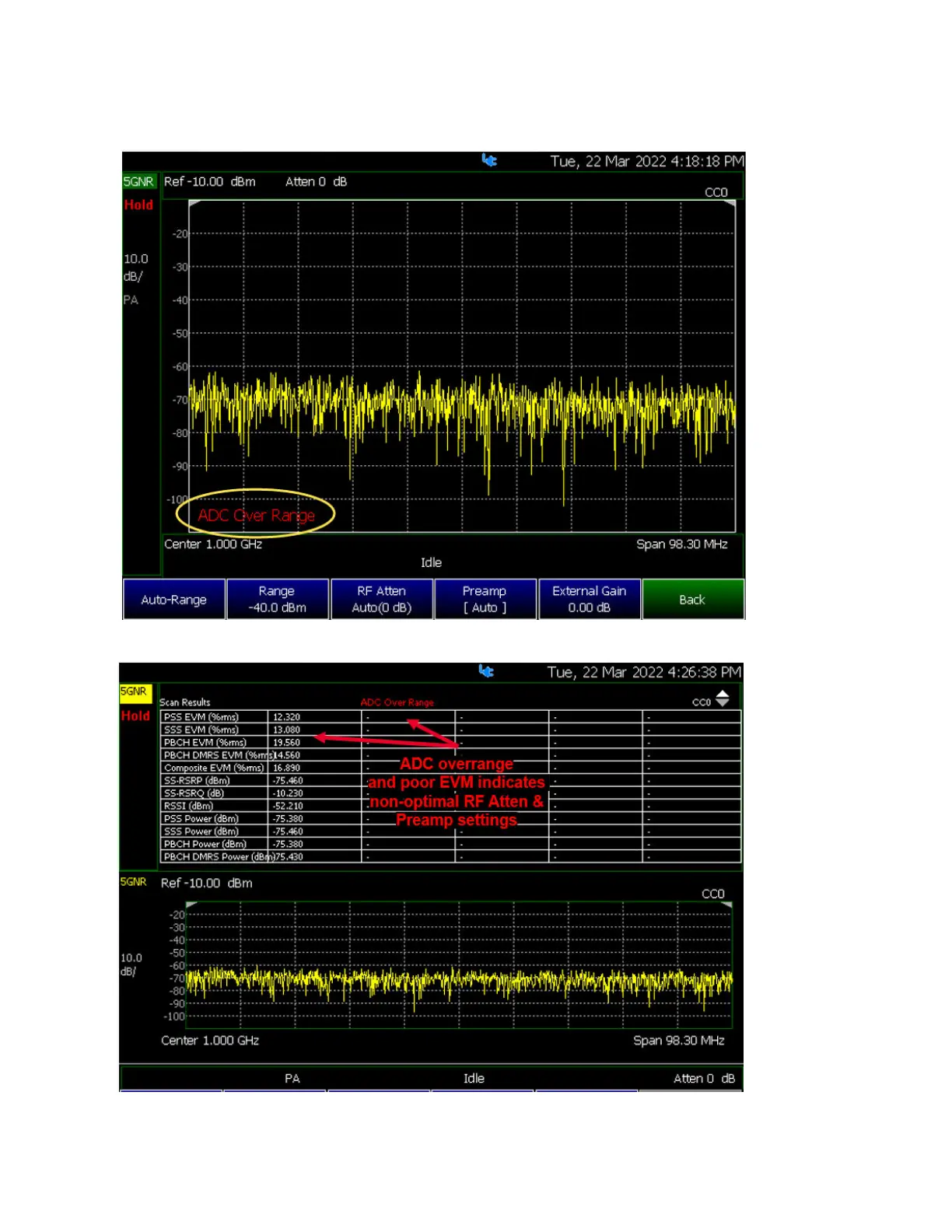

Figure 13-35 OTA 5G NR Signal Before Auto-Range – Spectrum

Figure 13-36 OTA 5G NR Before Auto-Range – Windows State ON
