428 Keysight N9915-90020 User’s Guide

5G Rapid Prototype Phased Array Antenna – Option 360

About Phased Array Antenna Measurements

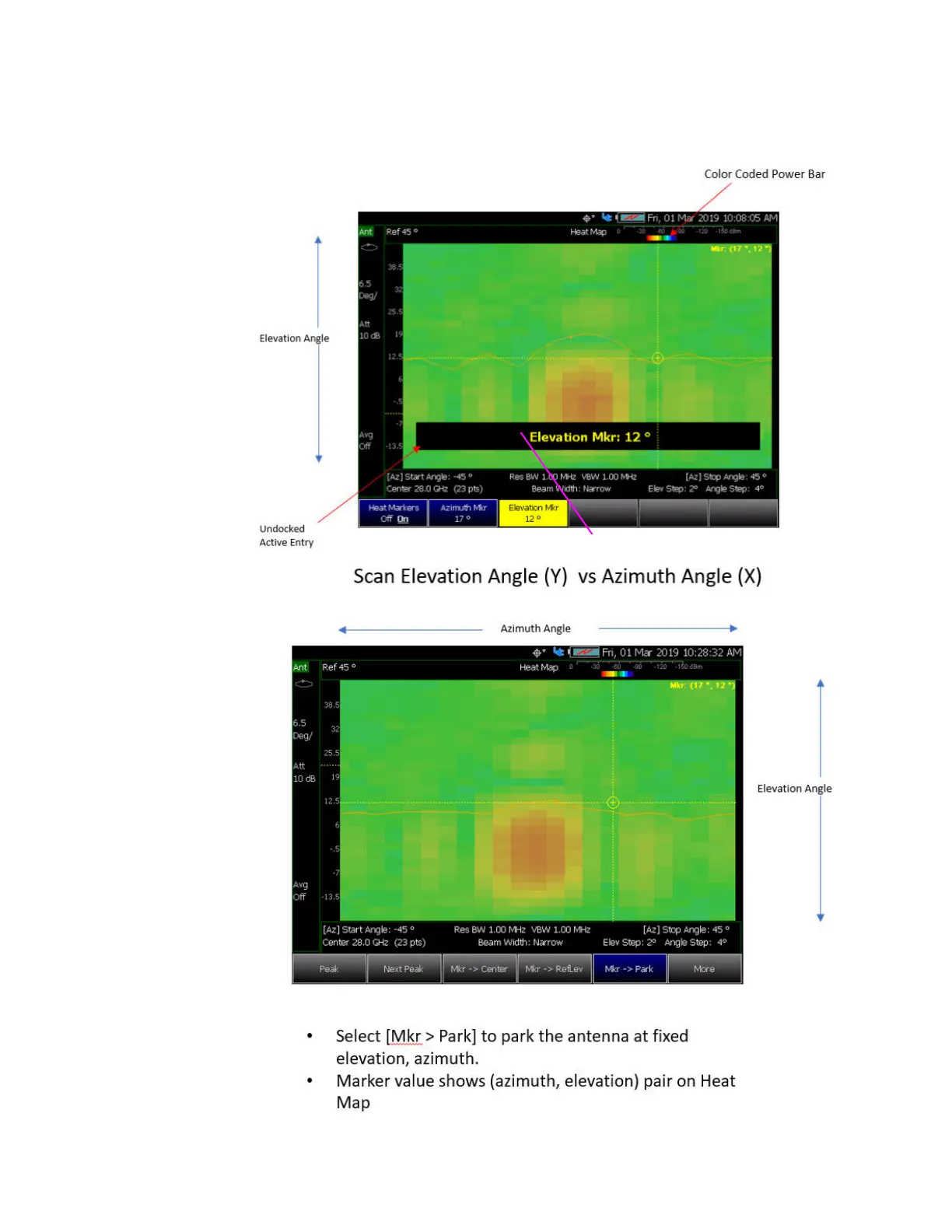

Figure 14-5 Heat Map and Undocked Active Entry – Parked Antenna

Scan elevation angles ±90 degrees and azimuth ±60 degrees
