Keysight N9915-90020 User’s Guide 515

Indoor and Outdoor Mapping – Option 352 (Requires Spectrum Analyzer Mode (Option

233), and GPS Receiver (Option 307))

How to Use Data Logging (Option 352)

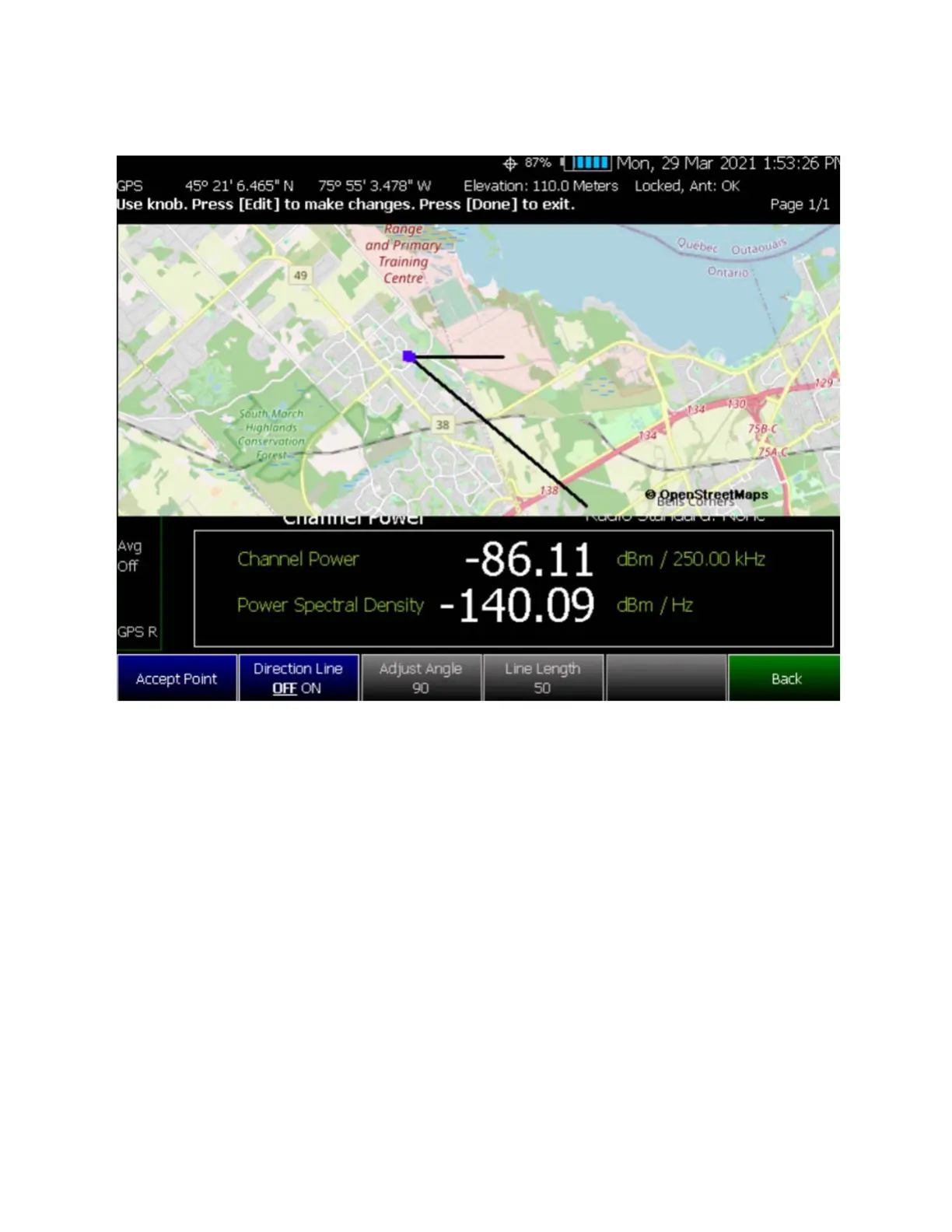

Figure 16-23 Directional Finding (DF) Bearing – Outdoor Map Data Logging Example
