778 Keysight N9915-90020 User’s Guide

System SettingsFUTURE

Utilities

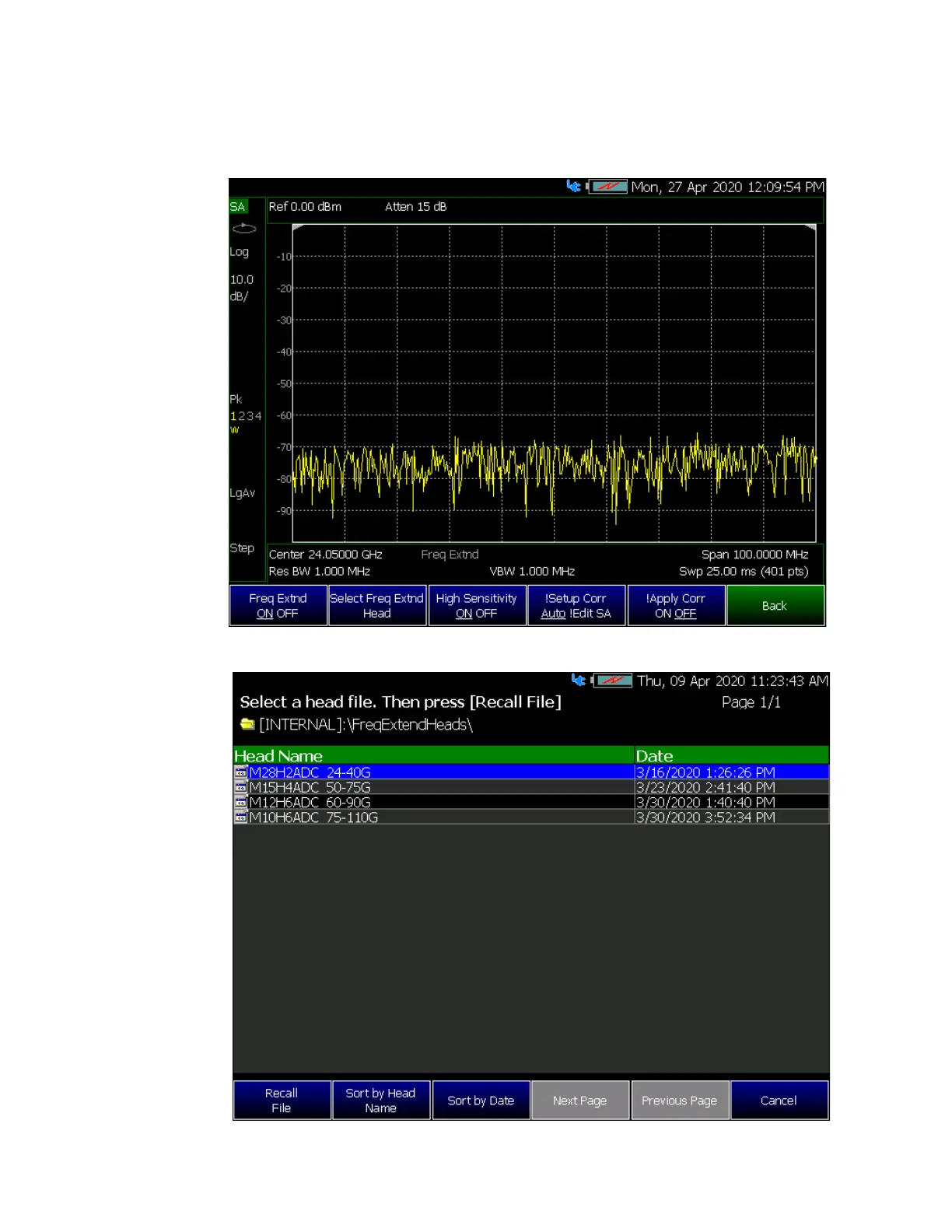

Figure 31-2 FieldFox Frequency Converter High Sensitivity (ON: Narrow—Lowest Noise

Floor—Displayed)

Figure 31-3 FieldFox Frequency Extender Select Frequency Extender Head
