Keysight E4980A/AL Precision LCR Meter 213
Measurement Procedure and Examples
Capacitor Measurements

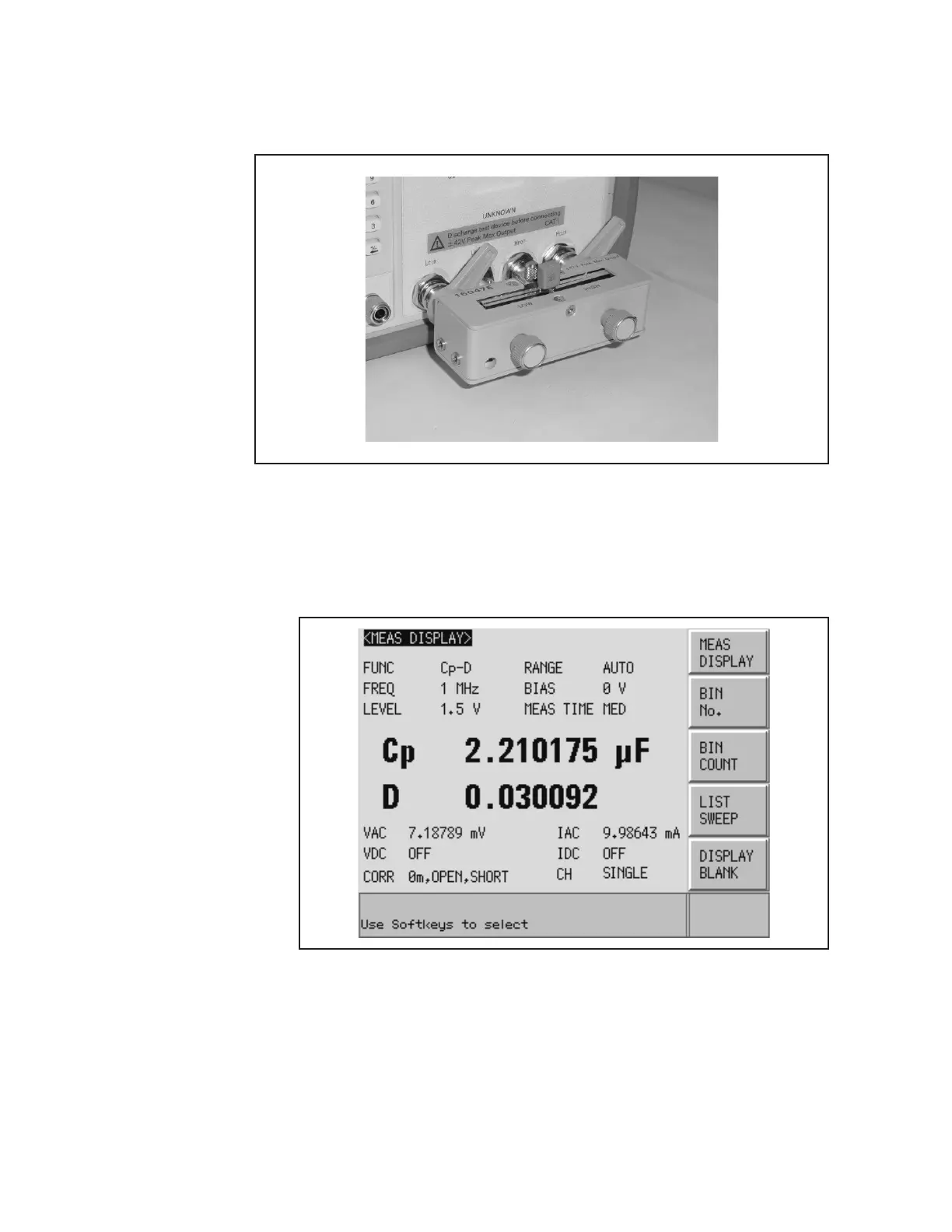

Figure 7-20 Connecting DUT
Step 6. Press the [Meas Setup] key. Measurements are performed continuously by
the internal trigger, and the measured Cp and D values of the capacitors are
displayed as shown in Figure 7-21.
Figure 7-21 Measurement results of Capacitor
