Keysight E4980A/AL Precision LCR Meter 89
Configuring Measurement Conditions (Display and Function Related Settings)
MEAS SETUP page
• DC bias (BIAS field)
• Measurement signal level (LEVEL field)
• Measurement time mode (MEAS TIME field)
For more information on the fields listed above, refer to the description in
Chapter 3 “Display Format” The following sections gives descriptions on the
fields that are only accessible through the MEAS SETUP.

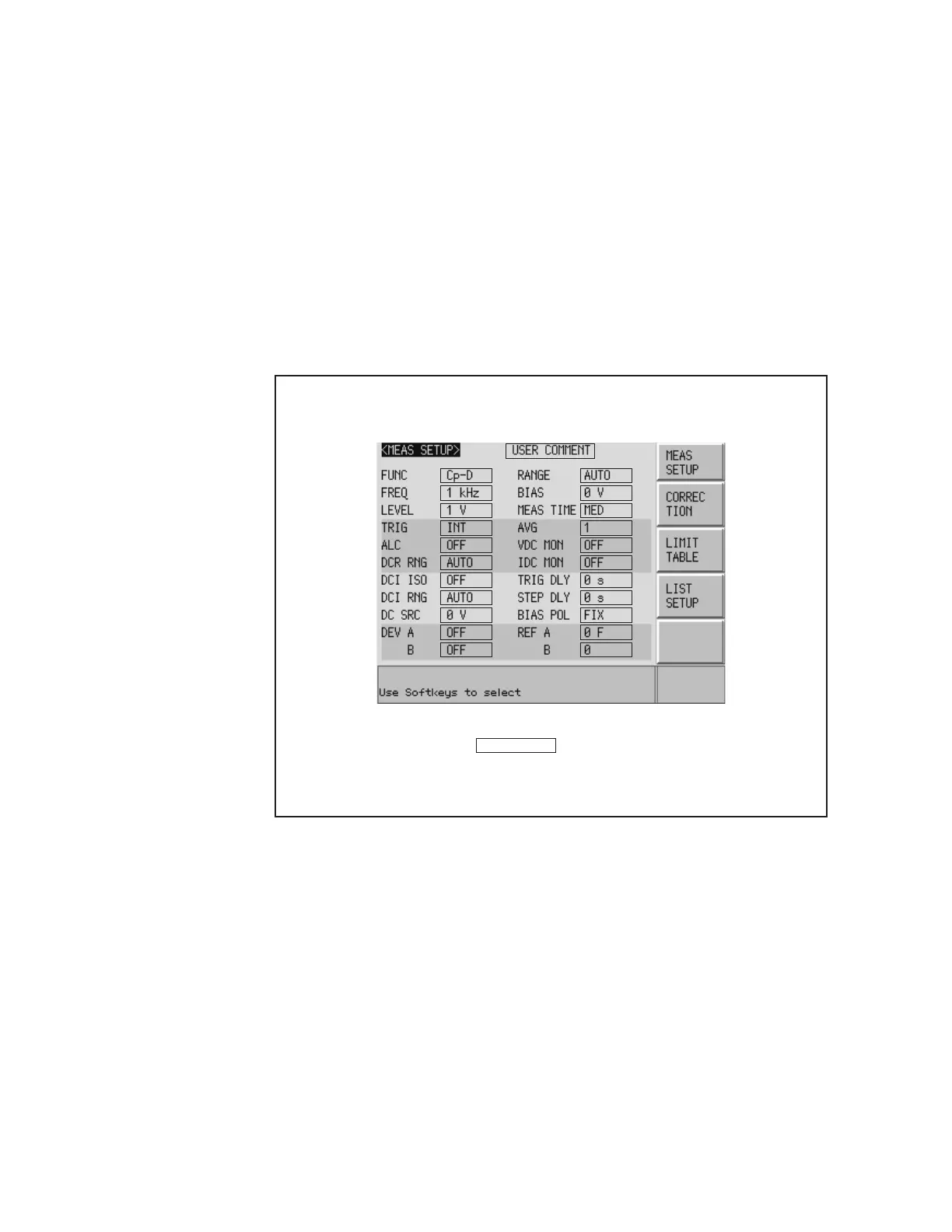

Figure 4-1 shows the fields available on this page along with the softkeys
corresponding to them.
Figure 4-1 MEAS SETUP page
㪼㪋㪐㪏㪇㪸㫌㪼㪈㪇㪍㪐
㪑㩷㩷㪝㫀㪼㫃㪻

Keysight E4980A Specifications

General

Frequency Range	20 Hz to 2 MHz
Basic Accuracy	0.05%
DC Bias Voltage	0 V to ±40 V
Measurement Functions	L, C, R, Z, D, Q
DC Bias Current	0 A to 20 mA (using external DC bias source)
Display	LCD
Interface	LAN, USB, GPIB
Dimensions	426 mm (W) x 177 mm (H)
Weight	13.5 kg
