Comfort Control Unit
124
Pos: 21.15.5 /B A/Info-Center/La dewagen/Ha uptmenüs/Hau ptmenü 4 Servic e/Diagnose Na mursensoren @ 28\mod_125 0075727338_7 8.doc @ 2736 78

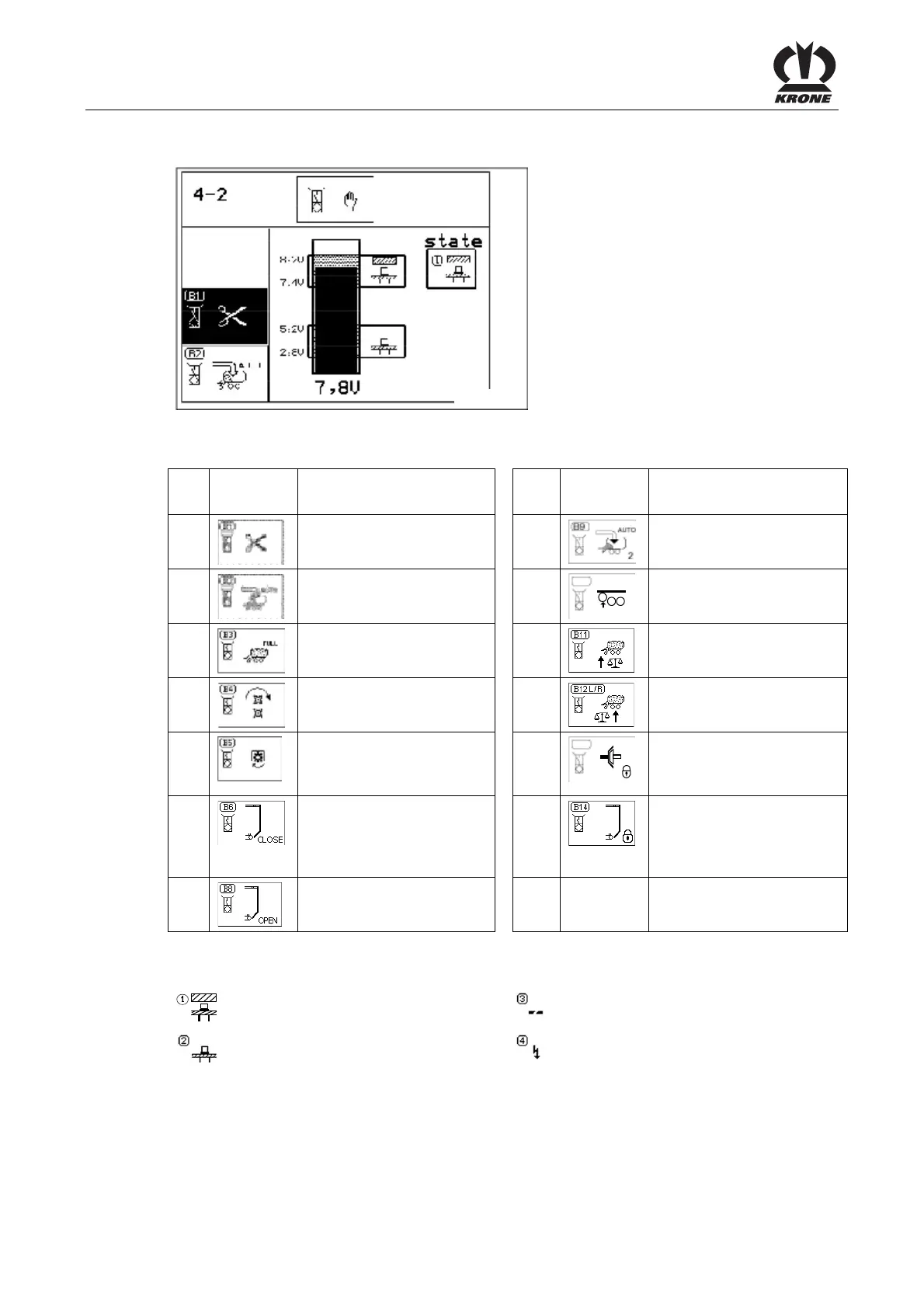

Diagnostics – Namur sensors
L400201
Fig. 87
Possible sensors (depending on how the machine is equipped)
No.
Sensor
icon
Description
No. Sensor
icon
Description
B1
Cutter active
B9
Automatic loader, bottom
B2
Automatic loader, top
B10
B10
Lift axle
B3
Floor conveyor stop
B11
Load bolt drawbar
B4
Metering rollers (GD)
B12
Load bolt axle
B5
P.T.O. speed (GD)
B13
B13
Hand lever for metering
roller coupling (optional
cross conveyor)
B6
Tailgate closed
B14
Lock the switching valve
of the tailgate (Titan
series with cross conveyor
only)
B8
Tailgate open (GD)
Pos: 21.15.6 /B A/Info-Center/Se nsoren/Statusa nzeigen Sensor ( 1,2,3,4) @ 0\mod_120091 0680947_78.d oc @ 47748
State:
Alive (iron) Broken cable
Not alive (no iron) Short circuit
