Commissioning
36
Pos: 12.13 /Üb erschriften/Üb erschriften 2/A-E/D eichselhöhe anpassen und Z ugöse einstelle n @ 0\mod_ 11997040393 19_78.doc @ 33461
5.4 Changing the Drawbar Height and Adjusting the Hitch
Pos: 12.14 /BA/Sic herheit/Lad ewagen/Höhen verstellung Knic kdeichsel @ 0\ mod_1199703 652225_78.doc @ 33442
Danger!
• The following general rules apply to all maintenance, assembly, repair and adjustment
work: Bring the machine to a complete stop. Switch off the engine. Remove the ignition
key.
• Secure the tractor and machine against the possibility of rolling back.
• The height adjustment (offset drawbar) and angle setting of the hitch must only be made
by the authorised dealer.
• The hydraulic height adjustment must only be used for unloading on an even section.
• Road travel is only permitted with the offset drawbar lowered!
• Repair work on the hydraulic system may be performed only by trained and authorised
personnel.
• When working on the drawbar, protect it against being lowered unintentionally.
Pos: 12.15 /BA/Ers tinbetriebna hme/Ladewage n/Deichselhö he anpassen un d Zugöse ei nstellen MX @ 4\m od_12117770 26187_78.doc @ 83726
KDW03320
x

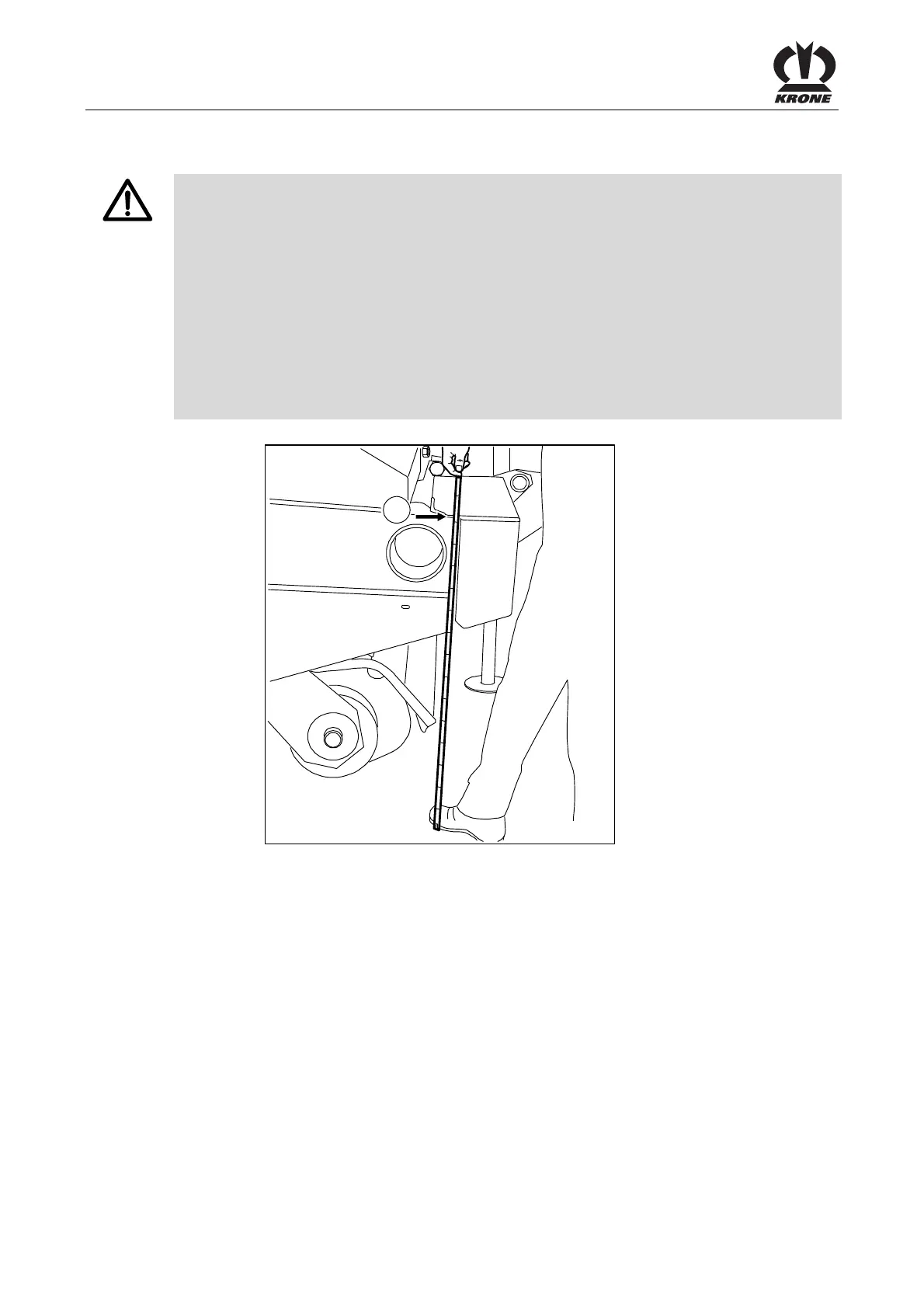

Fig. 8:
To ensure optimum crop collection, the height of the drawbar must be adjusted to the relevant
tractor type. When hitched up, the dimension between the top of the frame and the ground,
measured in front, must be x = 1.35 - 1.40 m (MX 310) or 1.45 - 1.50 (MX350).
