Start-up
47
Pos: 14.29 /BA/I nbetriebnahm e/Ladewagen/El ektrischer A nschluß allgem ein bei Standar d und Komfort @ 0\mod_119 9780575200_78 .doc @ 34446

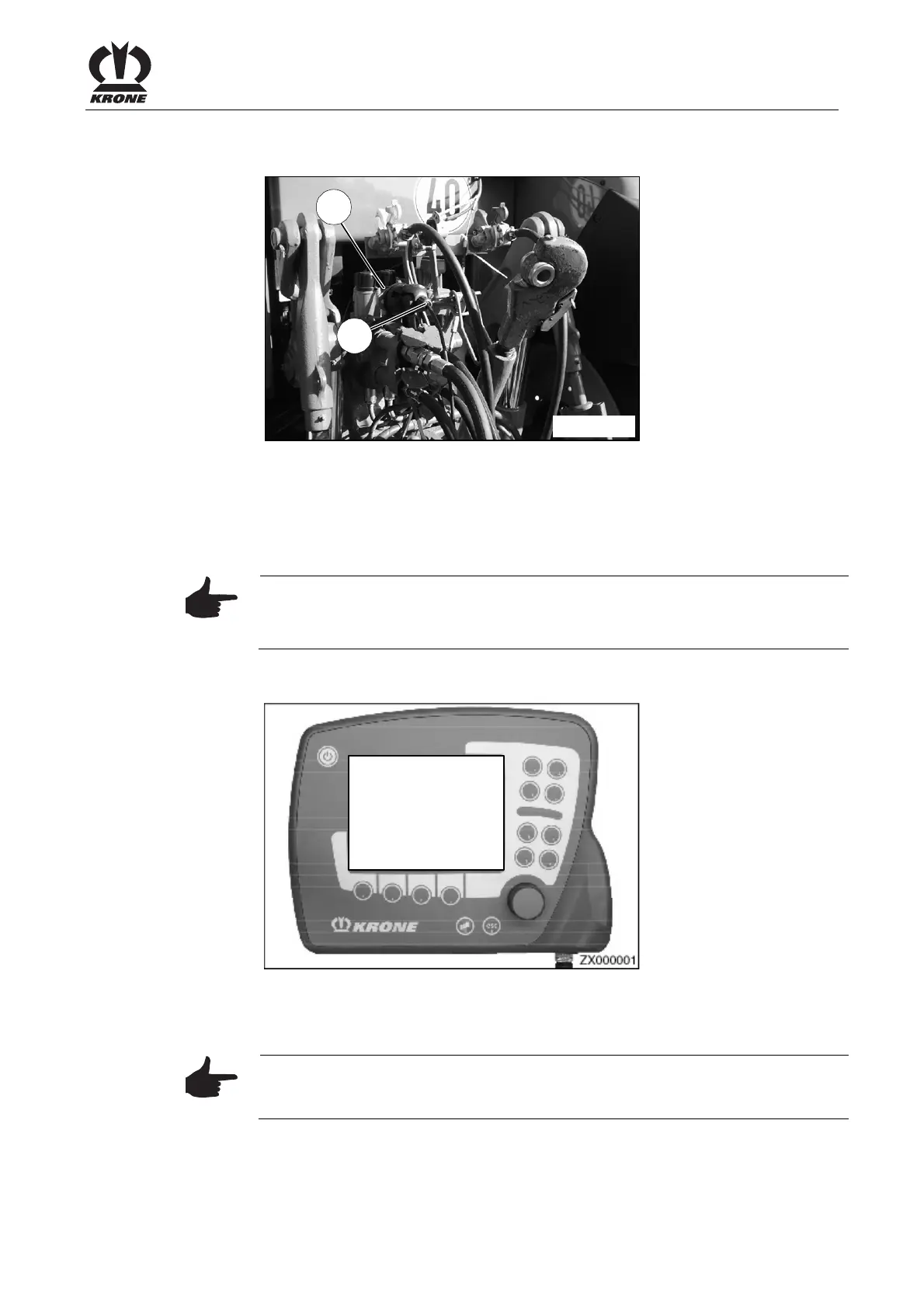

6.7 Electrical Connection in General for Standard and Comfort Versions
3
1
ZX400043
Figure 13:
• Connect the 7-pin lighting equipment connection cable (3) to the 7-pin plug-in connector
(1) of the tractor’s electrical system.
• Connect the power supply cable (4) to the 3-pin power supply socket (2).
• Position the cables so that they will not come in contact with the wheels.
Note
If there is no connection present on the tractor, – request a socket with
connection cables from the spare parts service (Part No.: 0302-068-0)
Pos: 14.30 /BA/I nbetriebnahm e/Ladewagen/A nschluß der Ko mfortbedienung @ 0\mod_11 99780826044 _78.doc @ 34 465
Figure 14:
Connection for in-cab Comfort kit (see section on control unit "Mounting")
Note
Lay the connection cables between the tractor and machine so that they are
not tight during cornering and do not come in contact with the tractor wheels.
