6.9 PTO shaft
Pos: 14.37 /BA/I nbetriebnahm e/Ladewagen/A nbau Gelenkw elle @ 0\mo d_11997819726 53_78.doc @ 34 603
ZX400044
1
2
ZX400040

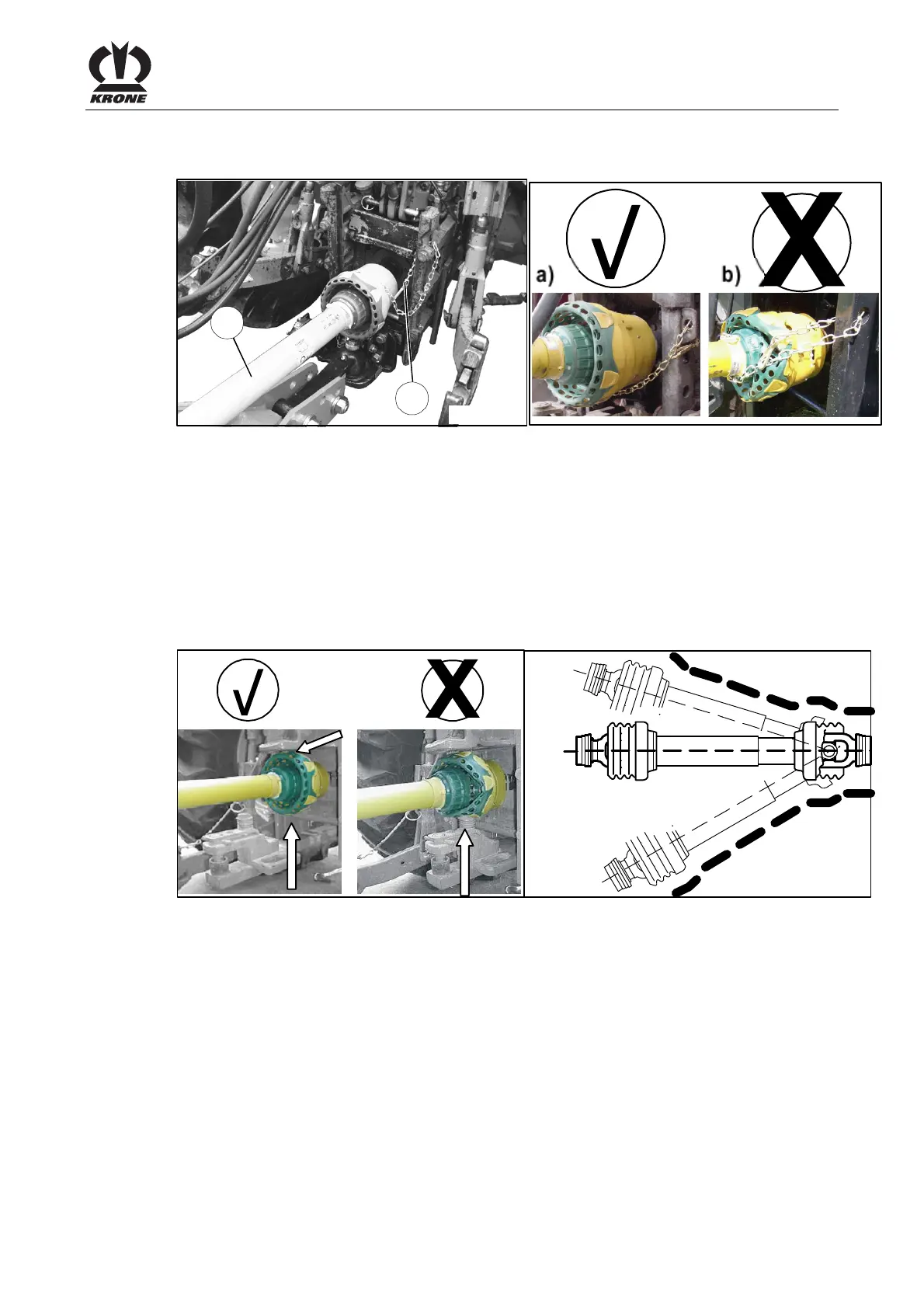

Figure 16
• Push on the PTO shaft (1) with overload protection on the machine side until the
protection mechanism locks into place (see PTO shaft manufacturer’s operating
instructions).
• Secure the PTO shaft guard retaining chains (2).
• For length adjustment on the tractor see Section on Initial Start-up "PTO Shaft".
Make certain the chain connection is ideal:
• The chain guide should be as close as possible to perpendicular to the PTO shaft. (see
view (a))
• The chain guide should never be diagonally connected via the guard cone. (see view (b))
ZX400041
Figure 17
• Make certain there is sufficient free room in the swivel range of the PTO shaft in all
operating states. Contact with parts of the tractor or device may result in destruction.
