13.23 Conveyor drum
Pos: 31.29.7.2 /BA /Wartung/Öl kontrolle_Wech sel/Ladewag en/Fördertrom mel 100 h @ 38\ mod_12670894 06134_78.d oc @ 354803
The oil level inspection screw (1) for the conveyor drum (4) and for the discharge roller gear rear
(5) is located at the front right-hand side of the loading wagon, underneath the protective
panelling.
The filling level must be checked every 100 hours .
Pos: 31.29.7.3 /Ü berschriften/Ü berschriften 2/ A-E/Dosierwalz engetriebe vorne (GD) @ 0\ mod_1199975 429710_78.doc @ 38315
13.24 Discharge roller gear front (GD)
Pos: 31.29.7.4 /A bkürzungen / Abkürzungen spr achneutral/L adewagen/MX 350 GD @ 3 8\mod_1267086 354290_0.doc @ 354613
MX 350 GD
Pos: 31.29.7.5 /BA /Wartung/Öl kontrolle_Wech sel/Ladewag en/Bild_Fördertro mmel Dosier walzengetriebe vorne MX 350 GD @ 38\m od_1267086556 212_78.doc @ 3 54690
MX000008
2
3
1
2
4
5

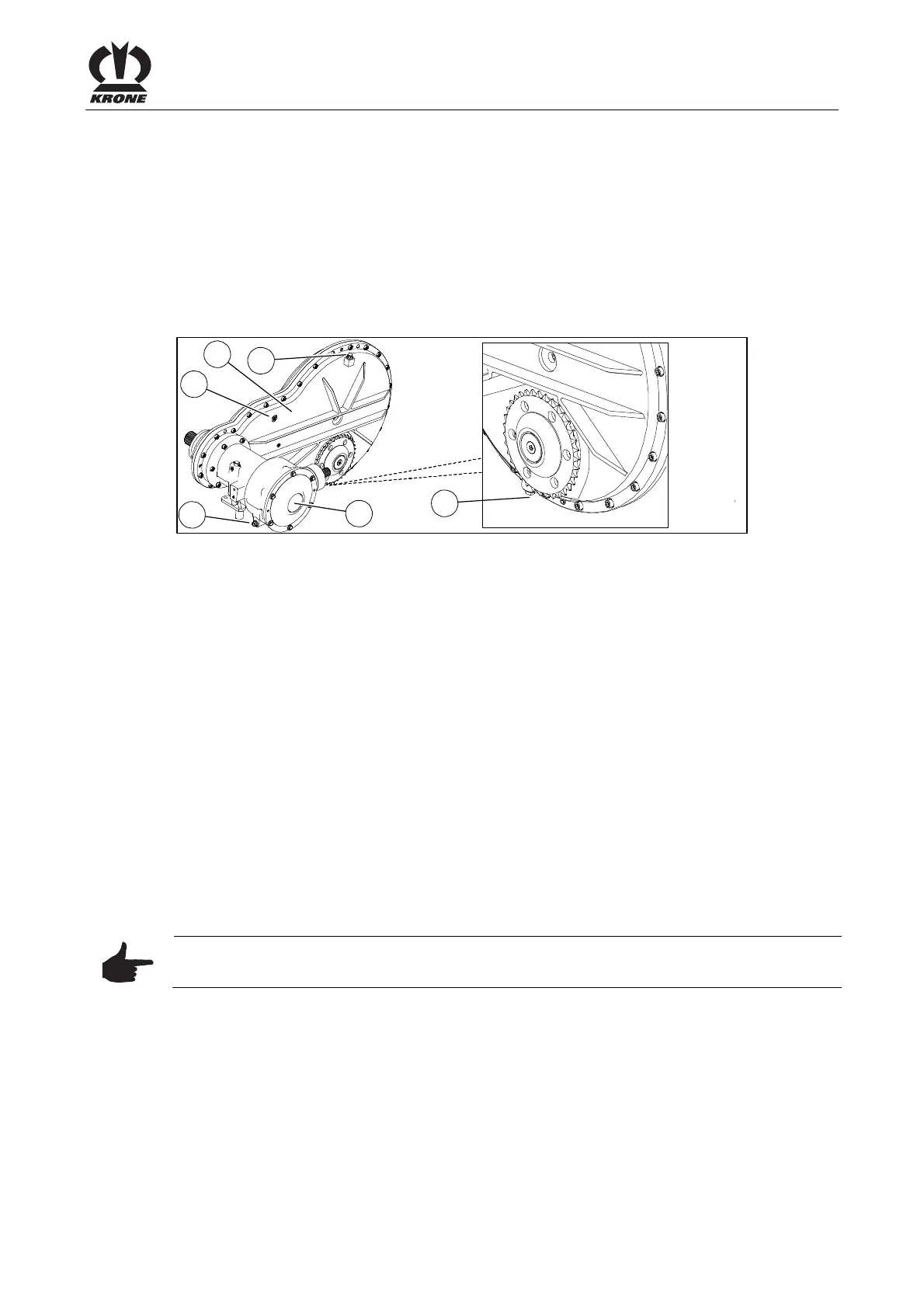

Fig. 132
Pos: 31.29.7.6 /BA /Wartung/Öl kontrolle_Wech sel/Ölkontrolle SAE 90 @ 0\ mod_1197008 973815_78.doc @ 15649
Oil level check:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Unscrew the inspection screw (1)
• Oil level up to bore hole (1)
• If necessary, top up the oil (SAE 90)
• Screw the check screw (1) back in.
Pos: 31.29.7.7 /BA /Wartung/Öl kontrolle_Wech sel/Ölwechsel Version3 @ 1\mod_1201255 900073_78.d oc @ 52826
Oil change:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Screw out the oil drain plug (2)
• Collect the used oil in a suitable drip pan
• Screw in the oil drain plug (2)
• Top up the oil (3) (oil level up to hole (1))
• Screw the inspection screw (1) and locking screw (3) back in.
Pos: 31.29.7.8 /BA /Wartung/Öl kontrolle_Wech sel/Ölqualität / Ölmenge: siehe Kapitel @ 0\ mod_1197007 859486_78. doc @ 15531
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 31.29.7.9 /BA /Wartung/Öl kontrolle_Wech sel/Altöl ord nungsgemäß entsorg en @ 0\ mod_1197008117 002_78.doc @ 15550
Note
The used oil must be disposed of correctly
