Maintenance
207
Pos: 31.36 /BA/ Wartung/Ladew agen/Kratzbode n-Vorschub AX @ 3\mod_ 12036041421 73_78.doc @ 67 683
13.29 Floor conveyor feed
AX000018
2
1
a
=
=
2
1

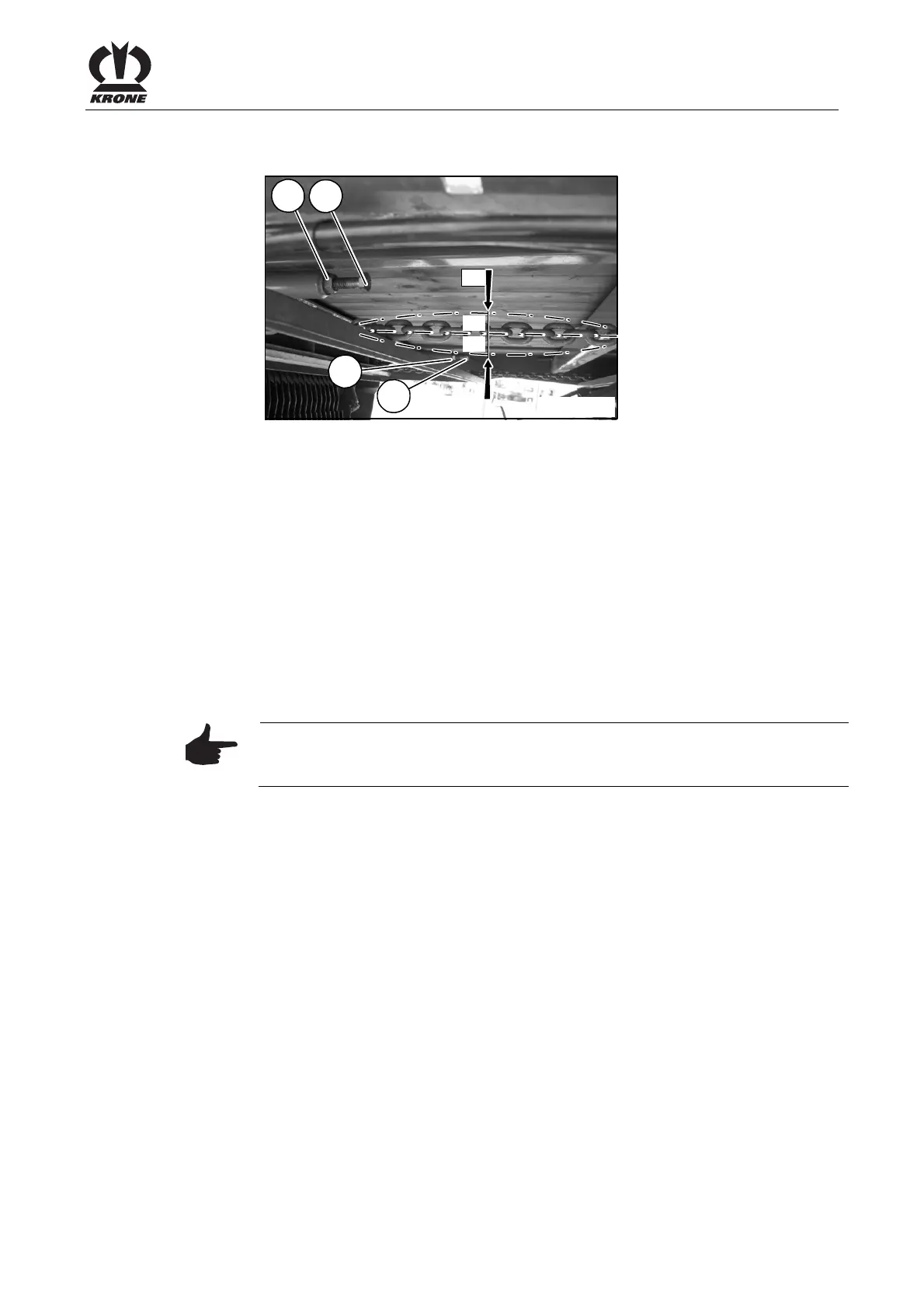

Figure 138:
The floor conveyor chain tensioner is located above the cutting system underneath the floor
conveyor. Before starting work, check the floor conveyor chain tensioner for the loading wagon
and readjust if necessary.
Checking the chain tension for the floor conveyor:
Check the chain tension for the floor conveyor by pressing in. The pretension is correct if the
depth of pressing is "a
≥
approx. 30-60 mm". If it is not, correct the pretension.
Correct the chain tension for the floor conveyor:
To do this:
• Loosen the nuts (1)
• Increase the floor conveyor tension by screwing in the screws (2).
Note
The floor conveyor chain must not be too tight. The floor conveyor chain
must indicate a press-in depth of at least a = 30 mm
.
