Commissioning
38
Pos: 12.19 /Üb erschriften/Üb erschriften 2/U-Z/ Winkeleinst ellung der Zugös e @ 1\mod_120 1940977539_ 78.doc @ 5595 8
5.6 Angle Setting of the Hitch
Pos: 12.20 /BA/Ers tinbetriebna hme/Ladewage n/Winkeleinstellu ng der Zugö se @ 0\mod_ 11997098279 91_78.doc @ 33 610

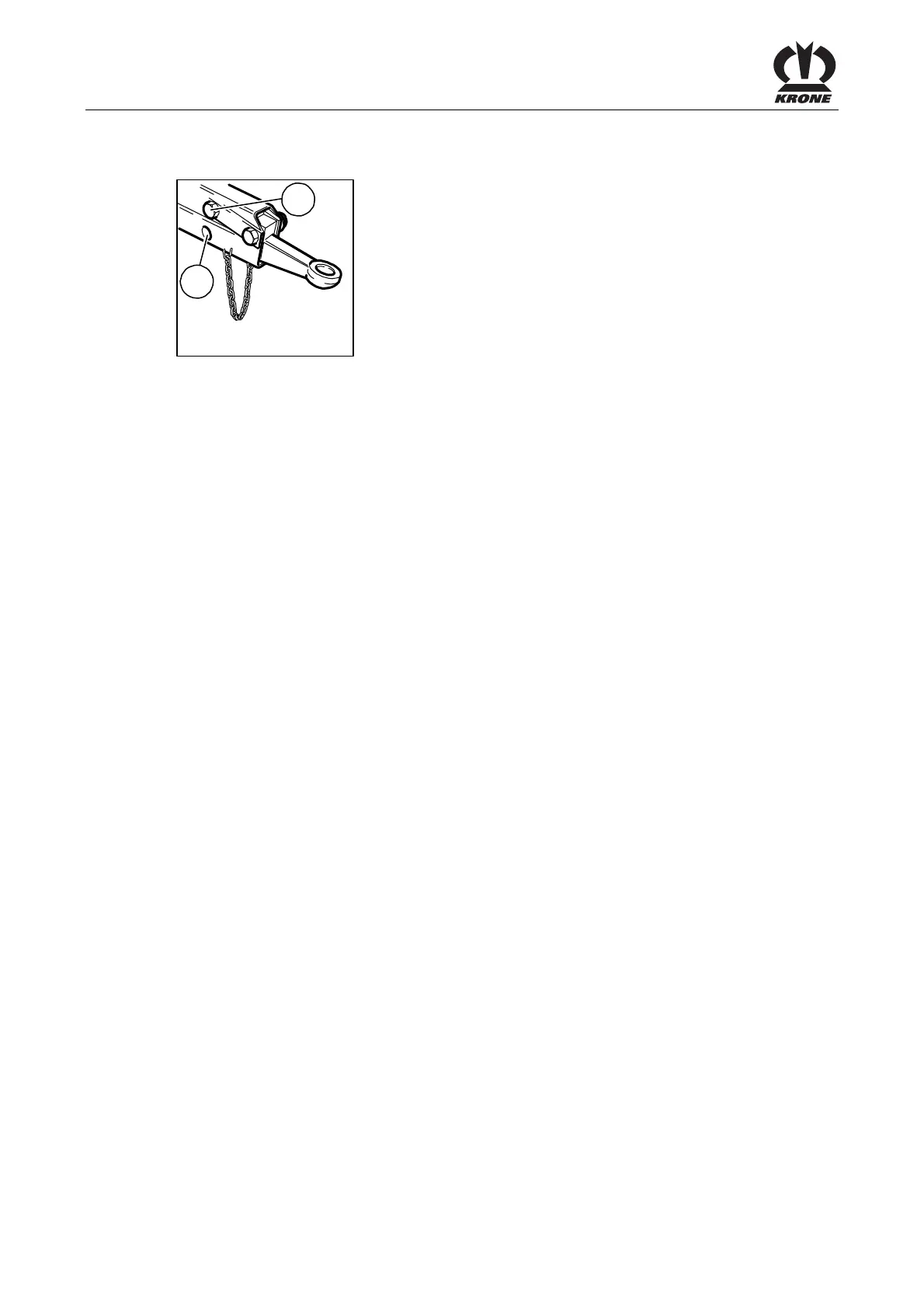

KDW02360
B
A
Figure 9
To ensure the hitch is as horizontal as possible to the trailer coupling when it is positioned, and
to prevent problems when the drawbar is bent, the hitch can be mounted in either of two
positions. You can use "A" or "B" depending on the height of the tractor coupling.
Tightening torque of fastening bolts: 1,450 Nm
