6.3.2 Connecting the hydraulic lines
Pos: 14.21 /BA/I nbetriebnahm e/Ladewagen/H ydraulikanschl uss MX @ 35\ mod_1256810 068016_78.doc @ 327581
AX000007
2 1

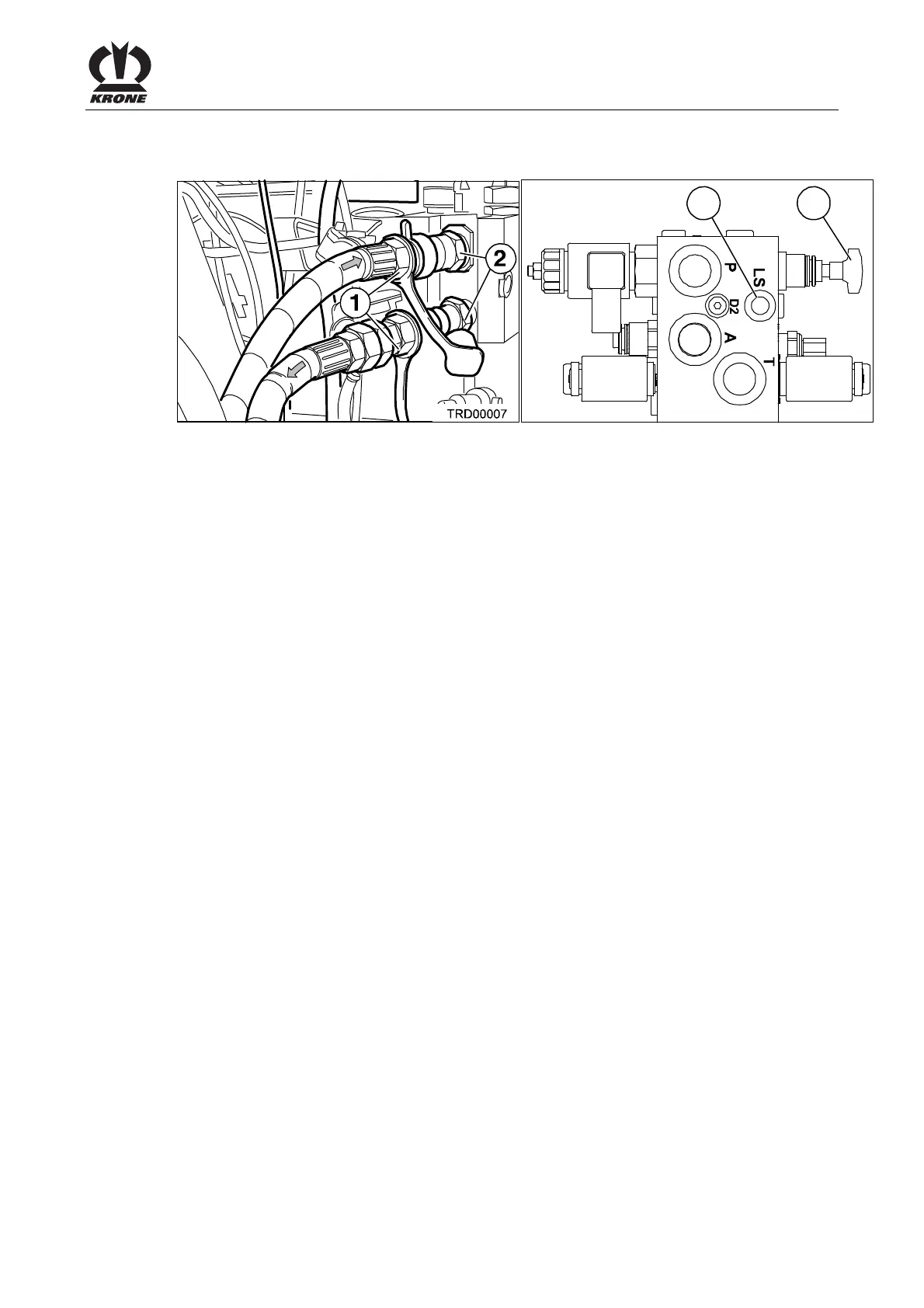

Fig. 12
The following control units are required on the tractor to operate the machine:
Medium:
Control unit double-action (red1/blue1): Connection for the hydraulic system
Comfort:
Control unit single-action (red1) with free return (blue1): Connection for the hydraulic system
• Pressure line ((red1) nominal width 18)
• Return line ((blue1) nominal width 18)
• If necessary, couple load-sensing pipe - nominal width 12 - (red3) to the LS connection of
the tractor (optional for Comfort design) (further information can be obtained from the
operating instructions provided by the manufacturer of the tractor).
• Remove the hydraulic hoses from the support on the drawbar.
• Remove the cover caps of the hoses.
• Clean the hydraulic hose plugs (1) before connecting them.
