13.25 Floor conveyor drive
Pos: 31.29.9.2 /BA /Wartung/Öl kontrolle_Wech sel/Ladewag en/Bild Kratzb odenantrieb MX @ 23\mod_1 24037827253 6_78.doc @ 238 875
3
MX000007
1
2

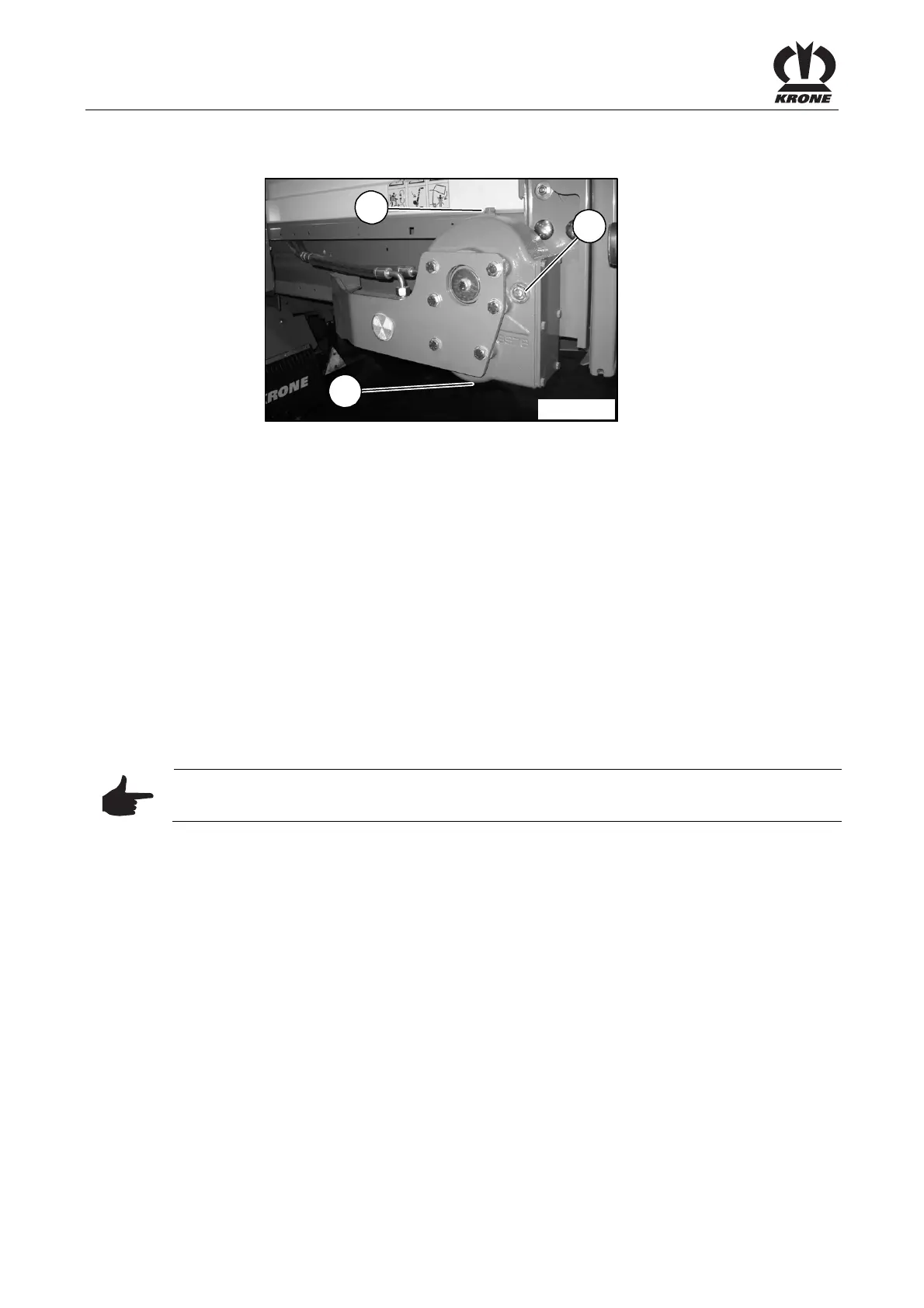

Figure 133:
Pos: 31.29.9.3 /BA /Wartung/Öl kontrolle_Wech sel/Ölkontrolle Schauglas @ 0\ mod_119997 3375100_78.d oc @ 38193
Oil level check:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Oil level up to inspection glass (1)
• If necessary, top up the oil (SAE 90)
Pos: 31.29.9.4 /BA /Wartung/Öl kontrolle_Wech sel/Ölwechsel Schauglas X-Di sc 6200 @ 12\ mod_122483 7898010_78.d oc @ 153785
Oil change:
• For time intervals, see Chapter entitled "Oil Level Check and Oil Change Intervals
(Gearboxes)".
• Screw out the oil drain plug (2)
• Collect the used oil in a suitable drip pan
• Screw in the oil drain plug (2)
• Top up the oil (3) (the oil level must be visible at least halfway up the inspection window
(1)).
Pos: 31.29.9.5 /BA /Wartung/Öl kontrolle_Wech sel/Ölqualität / Ölmenge: siehe Kapitel @ 0\ mod_1197007 859486_78. doc @ 15531
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 31.29.9.6 /BA /Wartung/Öl kontrolle_Wech sel/Altöl ord nungsgemäß entsorg en @ 0\ mod_1197008117 002_78.doc @ 15550
Note
The used oil must be disposed of correctly
