9.12.4 Menu 4-5 "Sensor/actuator test axle suspension"
(depending on how the machine is fitted)
L400281
L400521

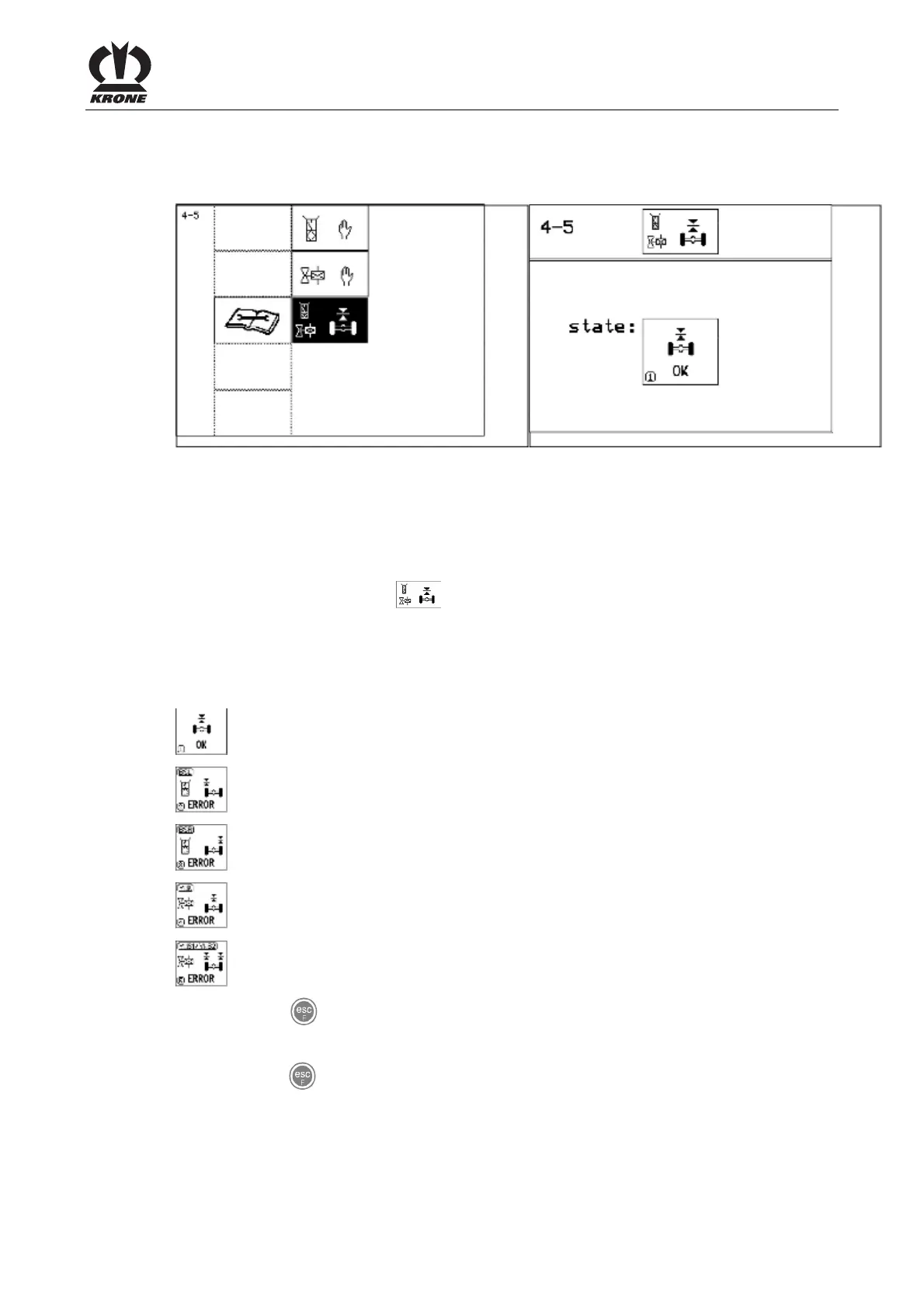

Figure 93
The actuator test is used to test the sensors and actuators installed on the machine for the axle
suspension.
Displaying the menu
Main menu 4 "Service" is called.
• You can select menu 4-5 with the rotary potentiometer. The icon is shown in
reverse colours.
• Press the rotary potentiometer.
The display shows menu 4-5 "Sensor/actuator test axle suspension".
State:
= No fault axle suspension
= Fault axle suspension left (BSL)
= Fault axle suspension right (BSR)
= Fault valve axis up/down (YWK)
= Fault valve axis left/right (YWS1/YWS2)
• Press the key to close the menu currently displayed.
The display shows menu level 4 "Service".
• Pressing the key and holding it down brings up the basic screen.
