15.2 Air Filter for Pipe
KLW10090
1 2 3 4 5 6 7

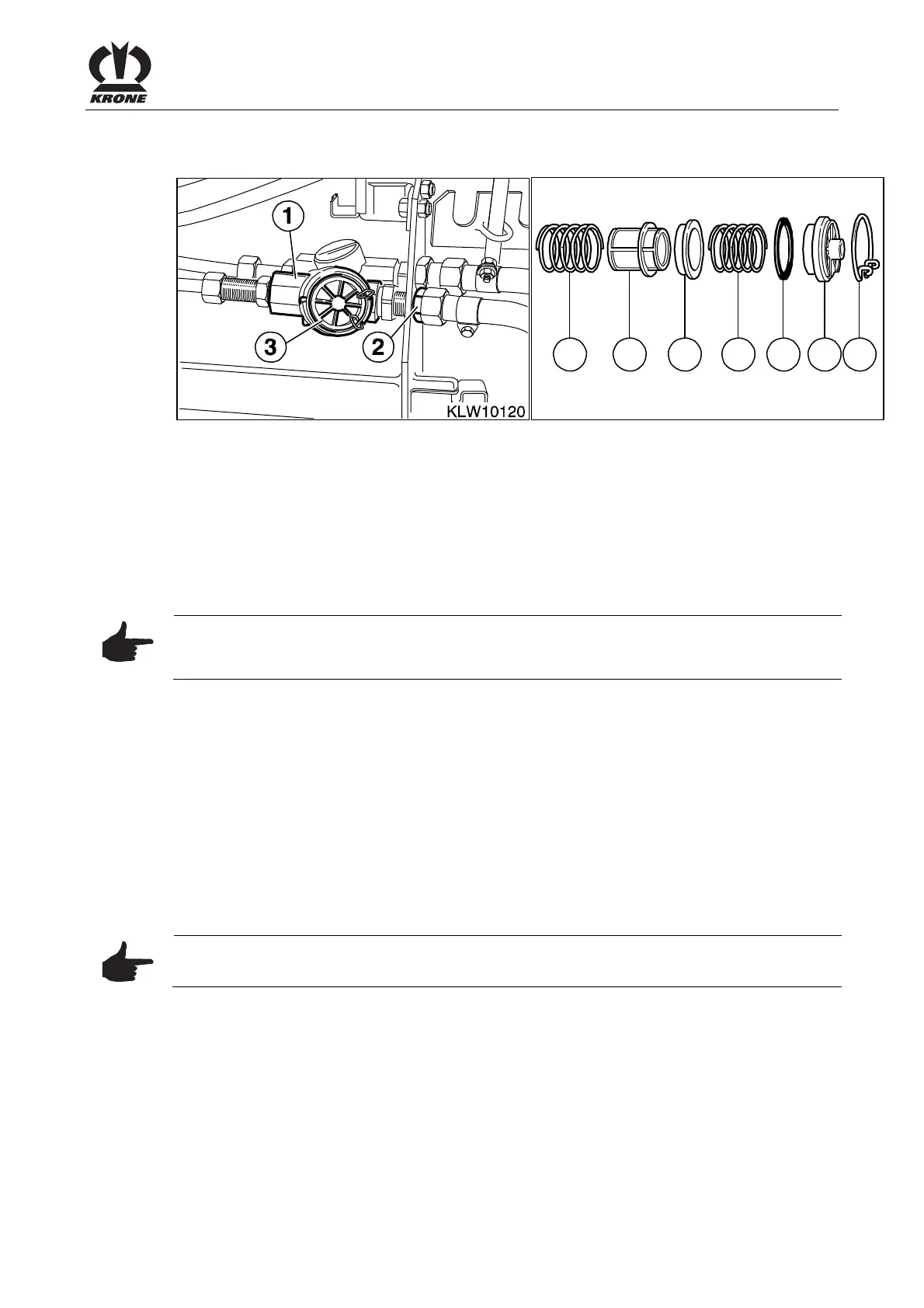

Figure 151
(1) Spring (4) Spring (7) Clasp locking ring
(2) Filter (5) Sealing ring
(3) Spacer (6) Cover cap
The air filter is installed in front of the brake valve. It cleans the compressed air, thereby
protecting the brake system from malfunctions.
Note
The brake system is ready for operation even when the filter insert is clogged in both direction
of flow.
Removing the air filter
• Unscrew the nut (2).
• Rotate the air filter (1).
• Loosen the clasp locking ring (3).
• Remove the filter insert.
Maintenance of the air filter
Clean the air filter before the beginning of the season.
Installation of the air filter
Installation is in reverse order to removal.
Note
Observe the correct sequence when assembling the filter insert.
