8.16 Parameter „Cross conveyor“ optional (GD design only)

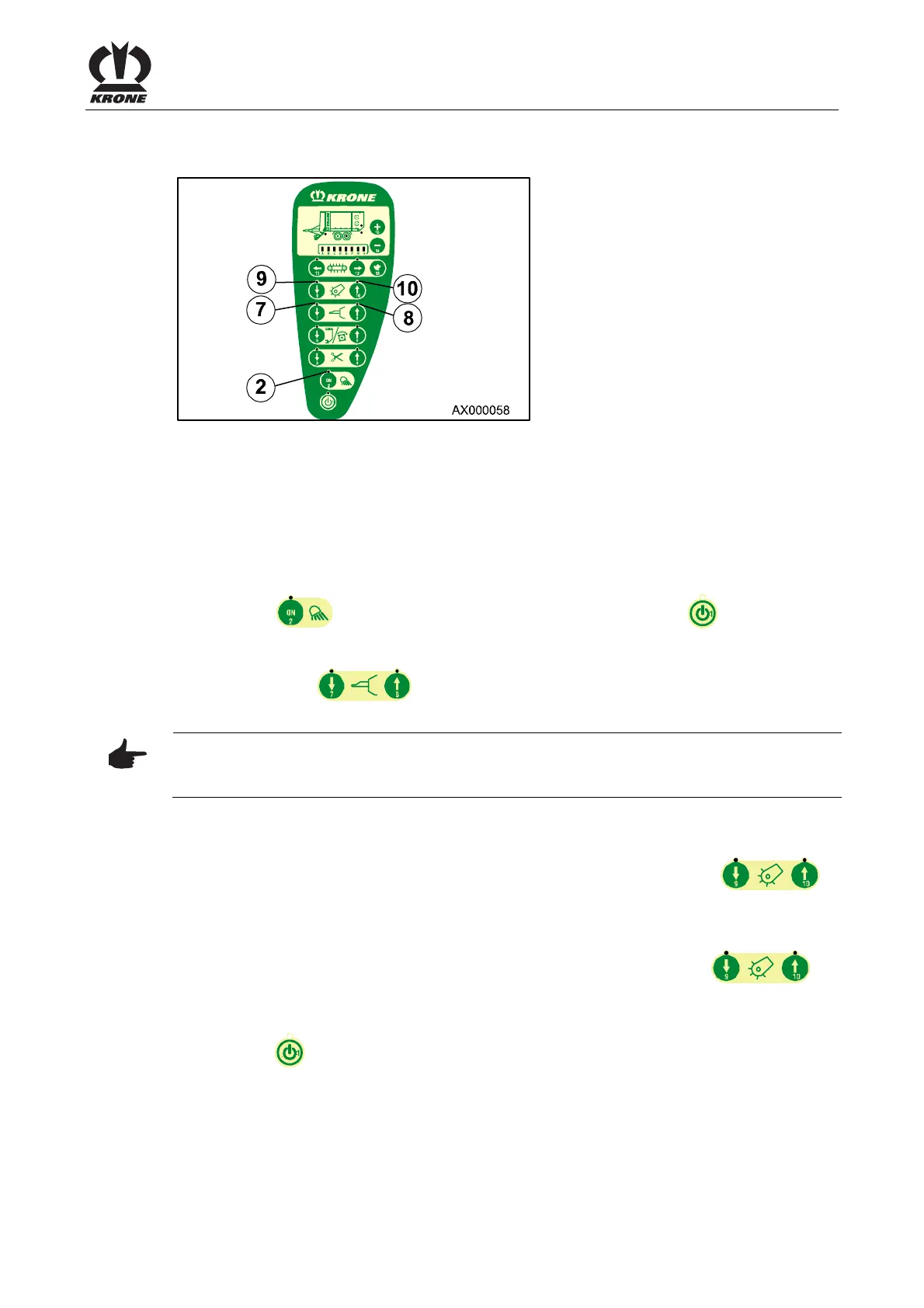

Fig. 36
In case the wagon is equipped with a cross conveyor ex works, the parameter “Cross conveyor”
is set ex works.
In case a cross conveyor is additionnaly installed, or the job computer has been exchanged,
the parameter “Cross conveyor” must be activated one-time-only.
8.16.1 Checking and, if necessary, adjusting the parameter “Cross conveyor”
Switch on sensor test.
When the key is held down , switch on the control unit via the key .
The control unit switches to the sensor test (indicator lamp (2) flashes).
• Press key (8)
(indicator lamp (2) goes out and indicator lamp (8) flashes).
Note
Bar graph on: Parameter “Cross conveyor” activated.
Bar graph off: Parameter “Cross conveyor” deactivated.
Deactivating the parameter “Cross conveyor”:
Deactivate the parameter “Cross conveyor ” (bar graph off) by pressing key (9) .
Activating the parameter “Cross conveyor”:
Activate the parameter “Cross conveyor ” (bar graph on) by pressing key (10) .
Is the parameter activated, the operation of the cross conveyor is handled with the control unit
(seperate hydraulic connection) of the tractor.
Press the key to switch off the control unit.
