13.16 Position of sensors (L/GL)
1
4
AX000023
2
3
Komfort
6
Komfort
7
5

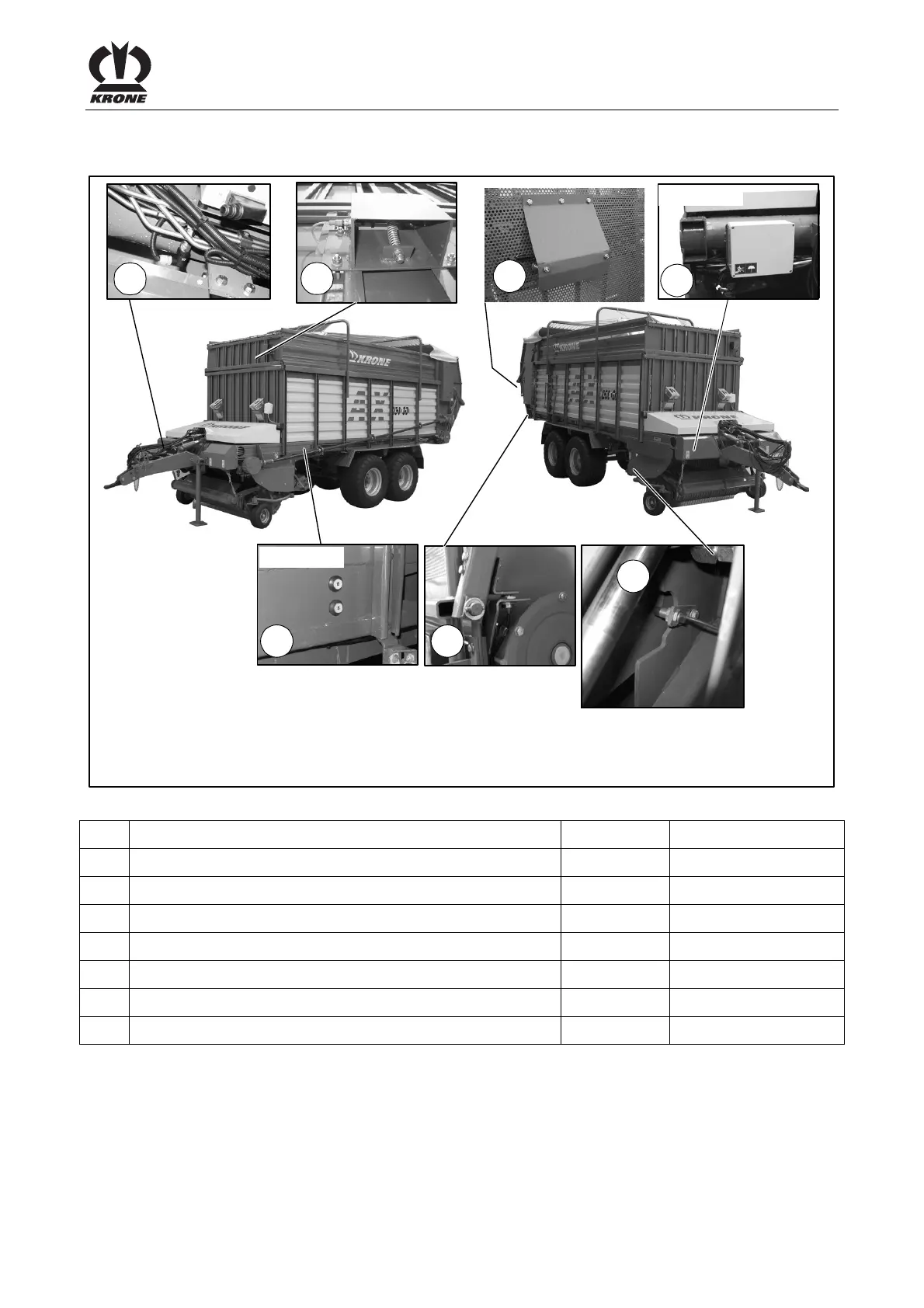

Figure 124:
Item Sensor designation Tightening torque
1 Automatic loader (B2) (Comfort) (optional) 10 Nm
2 Floor conveyor switch-off unit (B3) 10 Nm
3 Tailgate (B6) (right) (optional) 10 Nm
4 Buttons - blade bar (raise/lower) (Comfort) (optional) 10 Nm
5 Cutter active/inactive (B1) 10 Nm
6 Job computer (Comfort) (optional)
7 Axle locked (B7) (optional) 10 Nm
