Krone MX 310 GL - Setting of the Sensor for Automatic Floor Conveyor Switch-Off (GL)

Maintenance
197
Pos: 31.21 /BA/ Wartung/Ladew agen/Sensore n/Sensors Kratz bodenabschal tung 1 @ 1\mo d_120124926 3963_78.doc @ 52384
13.19 Setting of the Sensor for Automatic Floor Conveyor Switch-off (GL)
Caution!
Crush hazard!
Do not walk under the opened tailgate while the tractor is running.
Pos: 31.22 /BA/ Wartung/Ladew agen/Sensore n/Bild Sensor Kratzbodenabsc haltung Titan @ 1\mod_120 1797802030_78 .doc @ 54913
TR000003 TR000004
A
B
1
2

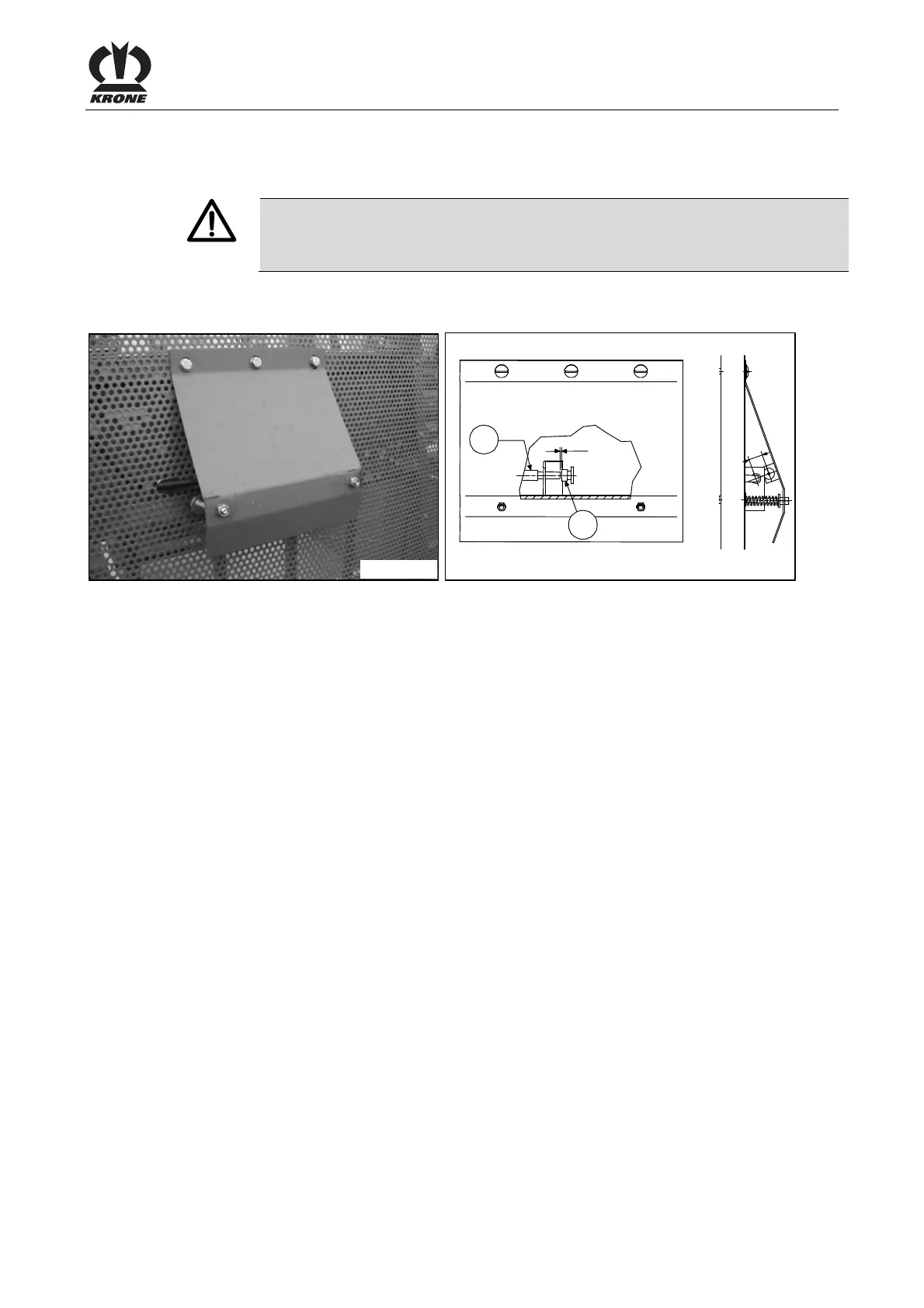

Figure 129:
Pos: 31.23 /BA/ Wartung/Ladew agen/Sensore n/Sensors Kratz bodenabschal tung 2 @ 0\mo d_119996642 6163_78.doc @ 37818
When the wagon is filled, a sensor shuts off the floor conveyor feed if the loaded crop is
pressing the feeler plate into the rear wall.
This switch-off must be checked before and during the first time it is used and after 250
operating hours for functionality. The distance A between the sensor (1) and counterpiece (2)
must not exceed the dimension 2 mm .
In unloaded condition, the distance B between the sensor and the counterpiece must be 25-30
mm.
