13.27 Discharge roller gear rear (GD)
Pos: 31.29.13.2 / BA/Wartung/Öl kontrolle_ Wechsel/Ladewage n/Bild_Dosier walzengetriebe hinten AX @ 3\ mod_120360 3977189_78.doc @ 67663
AX000017
2
1

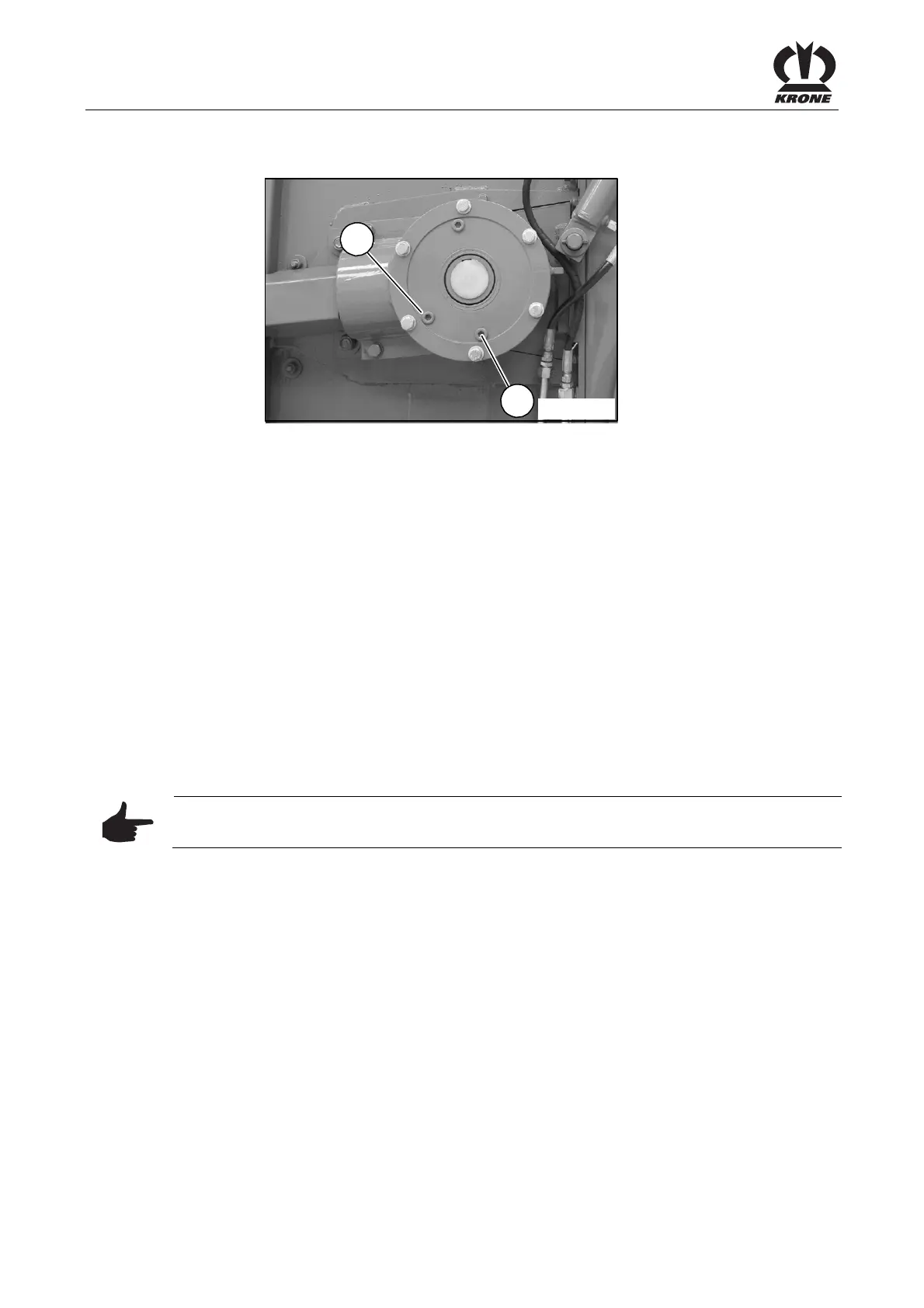

Figure 135:
Pos: 31.29.13.3 / BA/Wartung/Öl kontrolle_ Wechsel/Ölkontroll e SAE 90 @ 0\ mod_119700 8973815_78.doc @ 15649
Oil level check:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Unscrew the inspection screw (1)
• Oil level up to bore hole (1)
• If necessary, top up the oil (SAE 90)
• Screw the check screw (1) back in.
Pos: 31.29.13.4 / BA/Wartung/Öl kontrolle_ Wechsel/Ölwechs el Version2 @ 0 \mod_119701 6258486_78. doc @ 15884
Oil change:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Screw out the screw plug (2).
• Collect the used oil in a suitable drip pan
• Screw in the screw plug (2)
• Fill oil (1) (oil level up to hole (1))
Pos: 31.29.13.5 / BA/Wartung/Öl kontrolle_ Wechsel/Ölqualität /Ölmenge: sieh e Kapitel @ 0\ mod_119700 7859486_78.d oc @ 15531
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 31.29.13.6 / BA/Wartung/Öl kontrolle_ Wechsel/Altöl or dnungsgemäß e ntsorgen @ 0\mo d_119700811 7002_78.doc @ 15550
Note
The used oil must be disposed of correctly
