Maintenance
184
Pos: 31.14.20.1 /Ü berschrifte n/Überschriften 2 /F-J/Hochdruc kfilter @ 26\m od_1245836423 991_78.doc @ 264126
13.11 High-pressure filter
Pos: 31.14.20.2 / BA/Wartung/H ochdruckfilter/ Alle Maschine mit Komfort_H ydraulik @ 26\ mod_1245836 809632_78.doc @ 264151
All machines with Comfort hydraulics are equipped with a high-pressure filter in the pressure
line to the control block.
Pos: 31.14.20.3 / BA/Wartung/H ochdruckfilter/Hi nweis Filter einsatz nach jed er Saison wechs eln @ 26\m od_1245837416 929_78.doc @ 264176
Note
Change the filter element (3) after every season!
Pos: 31.14.20.4 / BA/Wartung/H ochdruckfilter/Filt erelement wechseln @ 26\ mod_124584 1608710_78.doc @ 264205
Replacing the Filter Element
Pos: 31.14.20.5 / BA/Wartung/H ochdruckfilter/H ochdruckfilter bei Komfort_H ydraulik Bild_L adewagen @ 26\mod_1245 842017257_78.d oc @ 264230
1
2
5
3
4
EIN
AUS
TRD00067

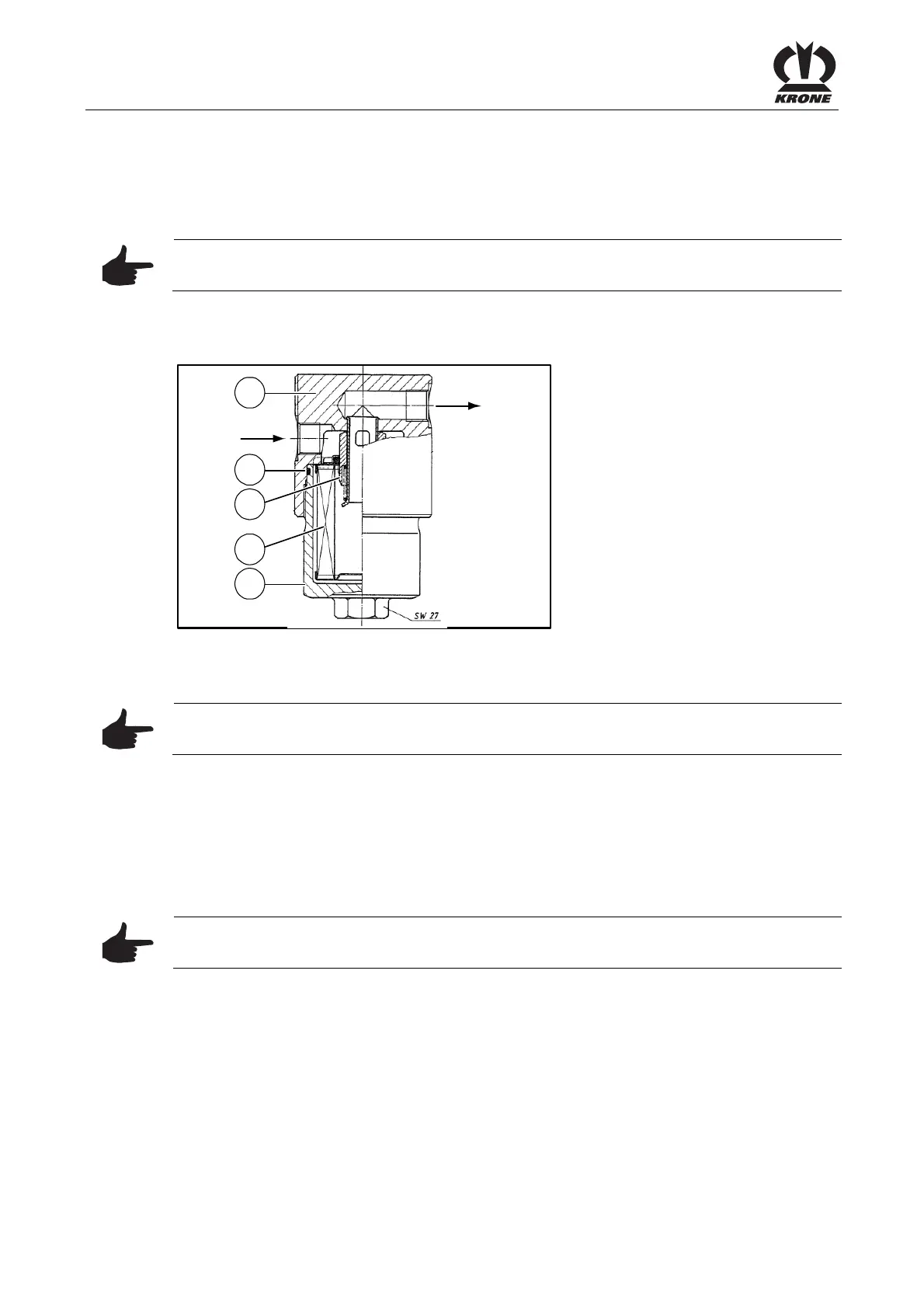

Figure 119
Pos: 31.14.20.6 / BA/Wartung/H ochdruckfilter/H ochdruckfilter T ext @ 26\ mod_1245842560 960_78.doc @ 264255
• Relieve all pressure from the hydraulic system
Note
Place a container underneath sufficiently large to collect the oil that drains out.
• Loosen the bottom of the filter (4) with a spanner W/F 27.
• Remove the bottom of the filter (4) and allow residual oil to drain out.
• Clean the bottom of the filter (4).
• Remove the old filter element (3).
• Push a new filter element (3) onto the valve sleeve (5).
• Check the O-ring seal (2) on the bottom of the filter (4).
Note
Damaged O-ring seals must be replaced by new ones.
• Set the bottom of the filter (4) in place and screw it in.
• Tighten it until it is against the filter head section (1).
• Charge the hydraulic system with pressure and check for leaks.
