Krone MX 310 GL - Pick up; Default Setting (Adjusting the Working Height); Overload Protection of the Pick-Up Drive

Settings
162
Pos: 27.4.1 /Übersc hriften/Übersc hriften 2/P-T/ Pick up @ 1\m od_120179197 5201_0.doc @ 54586
12.1 Pick up
Pos: 27.4.2 /BA/ Sicherheit/Gef ahrenhinweise/ Ladewagen/G efahr Einstellarb eiten Pick-up @ 0\mod_119 9869457628_ 78.doc @ 361 79
Danger!
• Crush hazard when working with the pick-up.
• Secure the pick-up against being lowered unintentionally.
Pos: 27.4.3 /BA/ Einstellungen/L adewagen/Pic k-up/Pick up Gr undeinstellung AX @ 14\ mod_1231319541 520_78.doc @ 171684
12.1.1 Default setting (adjusting the working height)
AX000027_1
1
3
1
2

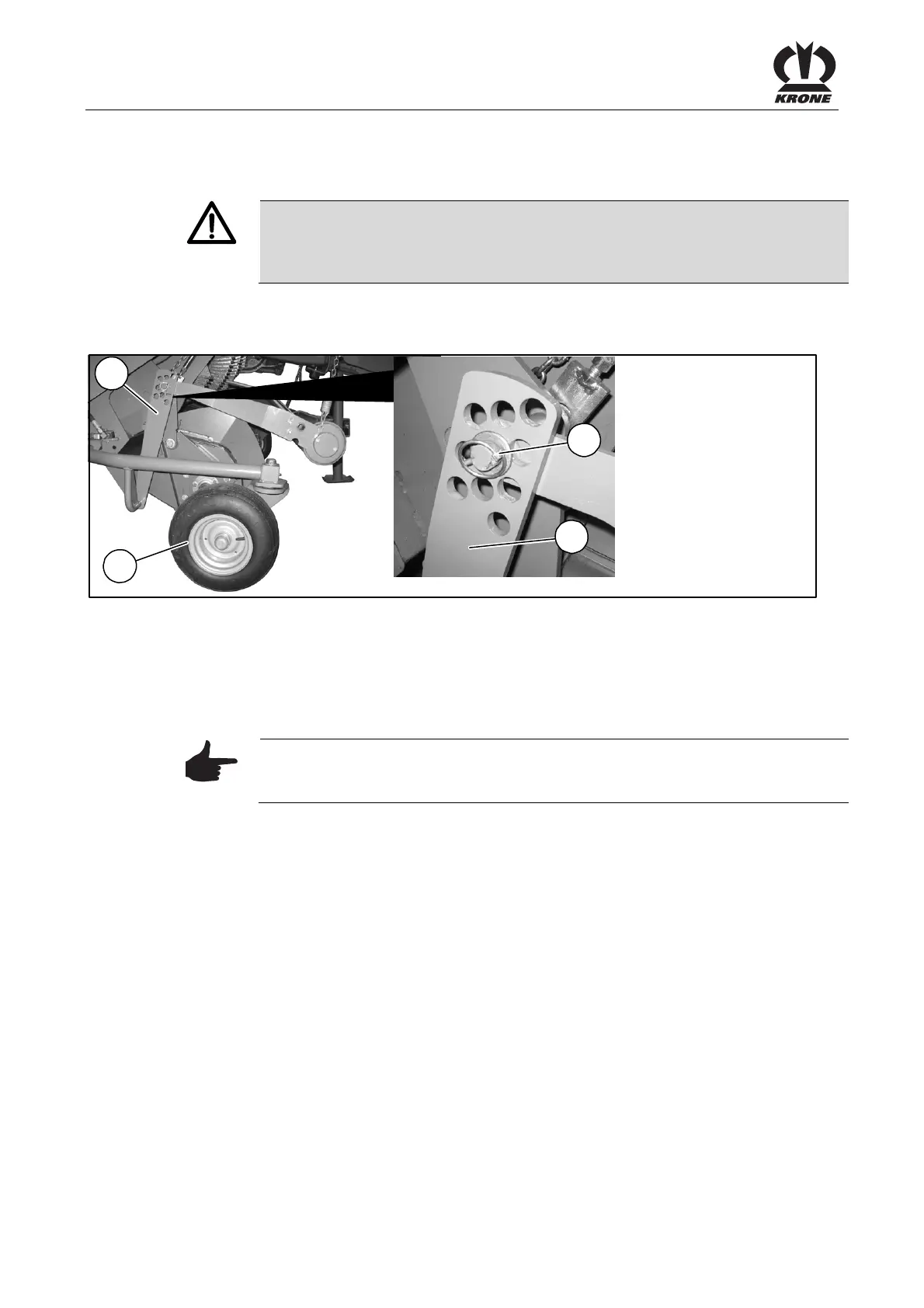

Figure 104:
The working height can be adjusted on the guide wheels (3) on either side of the pick-up. In
order to carry out the adjustment, lift and secure the pick-up. Pull the linch pin (2) and move the
guide wheels into the desired position on the perforated bar (1). Secure the guide wheels in
place with the linch pin.
Note
Make certain that the guide wheels on either side of the pick-up are in the
same position on the perforated bar
Pos: 27.4.4 /BA/ Einstellungen/L adewagen/Pic k-up/Überlastsic herung des Pic k-up-Antrieb es @ 1\mod_ 1202105009491 _78.doc @ 56 414
12.1.2 Overload Protection of the Pick-up Drive
Behind the chain guard (4) is the drive sprocket wheel with overload coupling.
