Maintenance - Brake System
222
Pos: 31.54.5 /B A/Wartung/Br emsanlage/Einstell en der Übertr agungseinricht ung @ 0\mod_ 12002912867 26_78.doc @ 39204
15.1.2 Setting the Transfer Mechanism
After the first few kilometres of driving, the transfer mechanisms and the brake linings of the
brake drum will have adjusted. The play resulting from this must be compensated for.
Pos: 31.54.6 /B A/Wartung/Br emsanlage/Einstell ung am Ges tängesteller_ Ladewagen @ 0\ mod_12002913 52133_78.d oc @ 39223
Adjusting the linkage setter
TRD00071

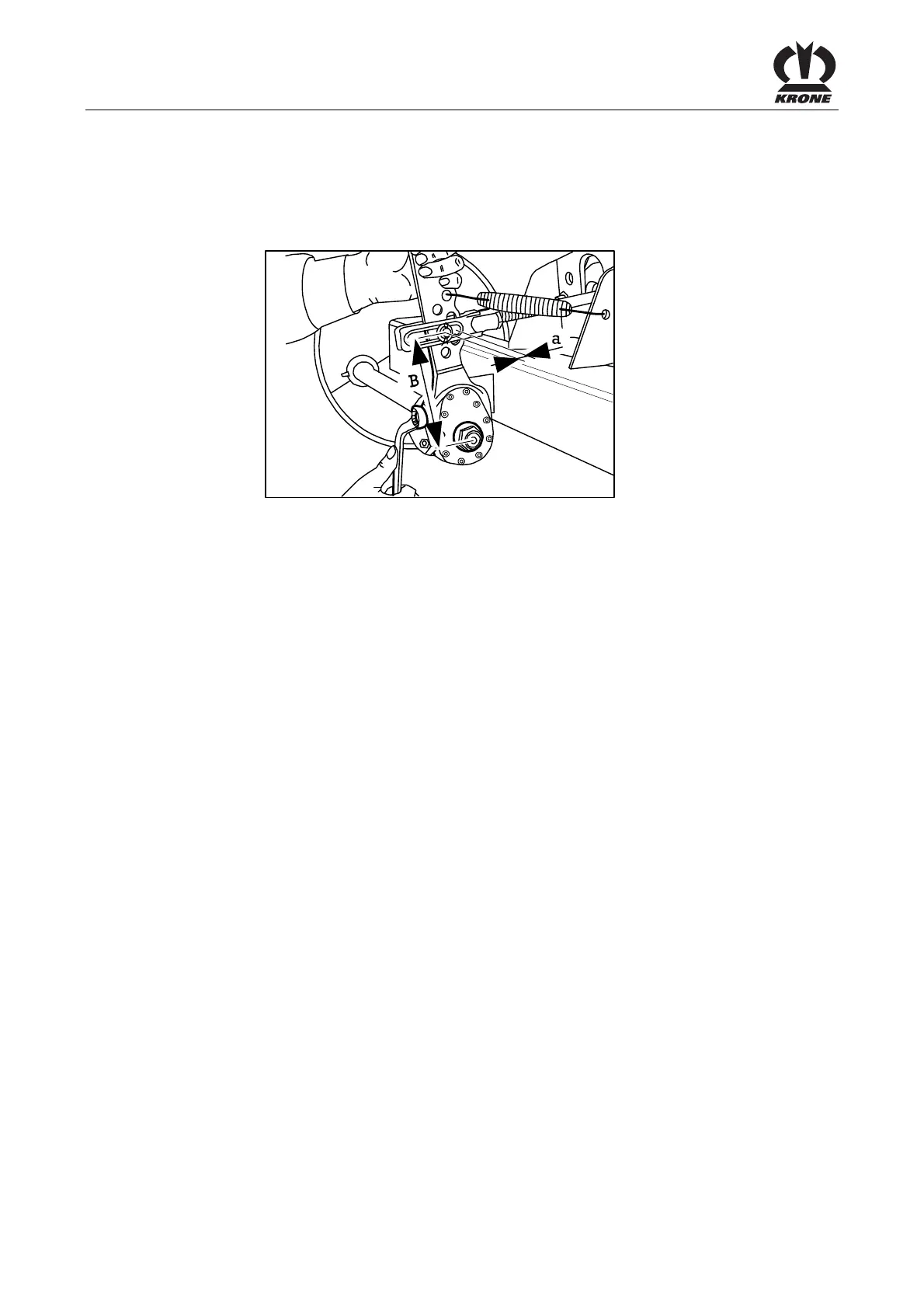

Figure 150:
• Every 200 operating hours
Activate the linkage setter manually in the pressure direction. The wheel brake must be
readjusted with a clear path of max. 35 mm for the long-stroke diaphragm cylinder pressure rod.
The setting is made on the readjustment hexagon of the linkage setter. Set clear path "a" to 10 -
12 % of the connected brake lever length "B", for example lever length 150 mm = clear path 15 -
18 mm.
