Krone MX 310 GL - Assembly of Automatic Loader

Commissioning
34
Pos: 12.9 /BA/Ersti nbetriebnah me/Ladewagen/M ontage Lade automati k MX @ 14\mod_ 1231425656569 _78.doc @ 1721 19
5.3 Assembly of automatic loader
MX000002_1
3
11
12
2x M10
2x M10x80
4x 10,5/21x2

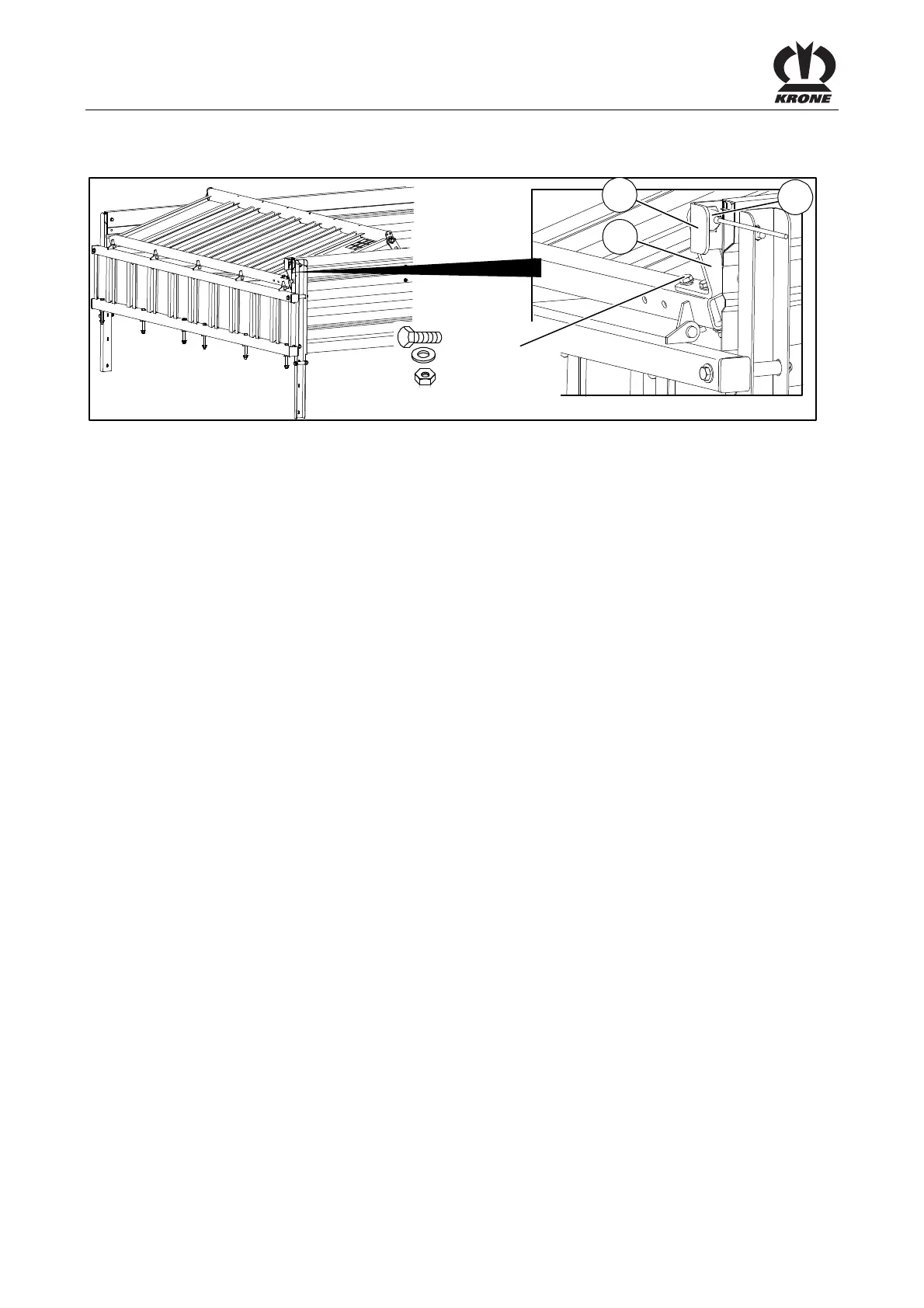

Fig. 7:
• Screw on sensor support (12)
• Screw on sensor plate (11)
• Install sensor (3) on sensor support (12).
• Adjust the sensor (3) (see section "Adjusting the Sensors")
