Krone MX 310 GL - Adjusting the Sensors; Namur Sensor D = 12 MM; Namur Sensor D = 30 MM

Maintenance
196
Pos: 31.19.7 /Üb erschriften/Üb erschriften 3/A-E/ Einstellung d er Sensoren @ 0\mod_11999 62173428_78.d oc @ 37635
13.18.1 Adjusting the Sensors
Pos: 31.19.8 /B A/Wartung/Sensor en/Namursens or d = 12 mm @ 0\mod_1 19996224703 8_78.doc @ 376 54
13.18.1.1 Namur sensor d = 12 mm
a
BP-VFS-088-1
2
1
3

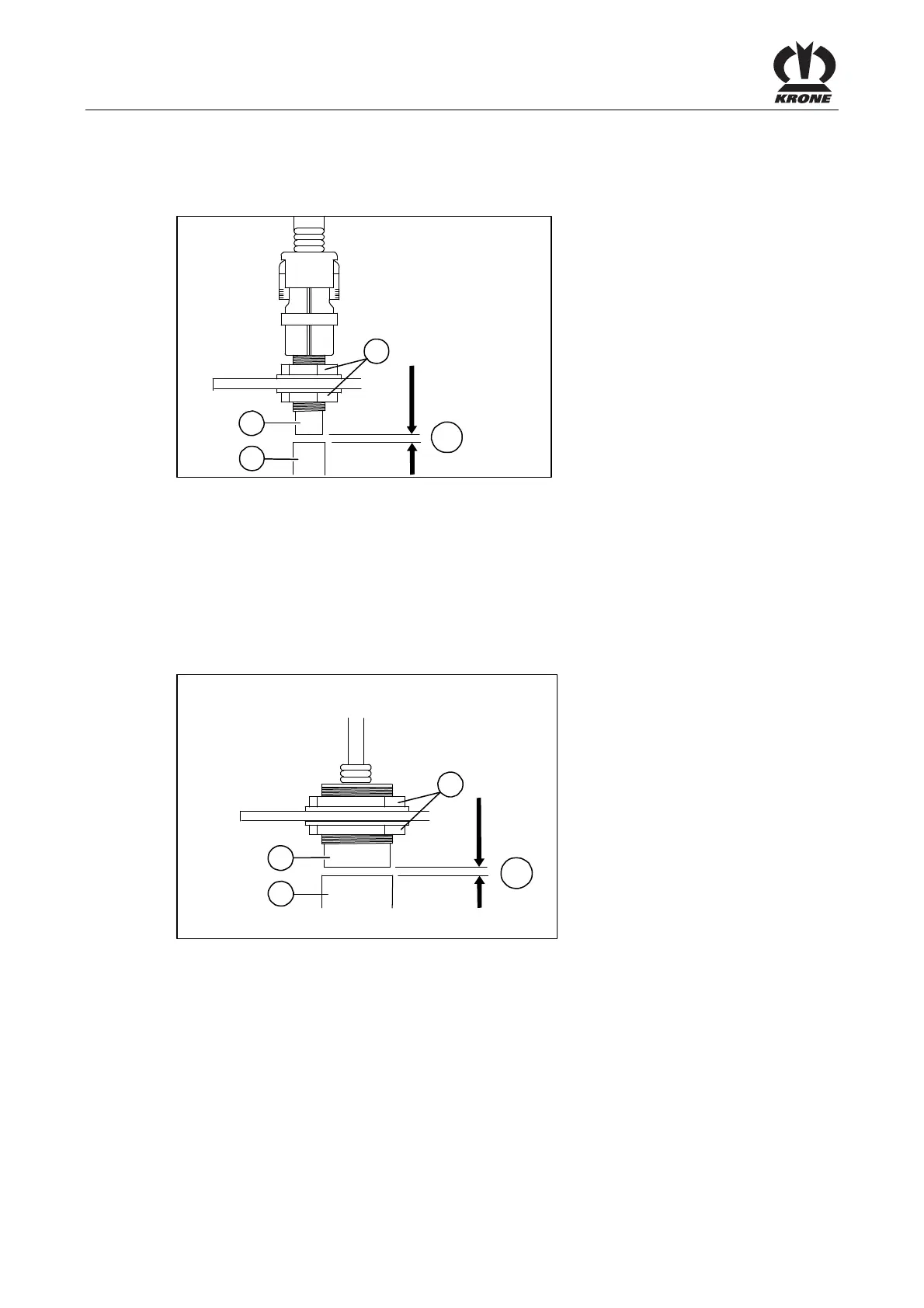

Figure 127
The dimension between the encoder (2) and the sensor (1) must be "a" = 2 mm .
Setting
• Loosen the nuts on either side of the sensor.
• Turn the nuts until dimension "a" = 2 mm is reached.
• Tighten the nuts again.
Pos: 31.19.9 /B A/Wartung/Sensor en/Namursens or d = 30 mm @ 0\mod_1 19996252010 0_78.doc @ 376 73
13.18.1.2 Namur sensor d = 30 mm
a
BPXC0172
2
1
3
Figure 128
The dimension between the encoder (2) and the sensor (1) must be "a" = 5 mm .
Setting
• Loosen the nuts on either side of the sensor.
• Turn the nuts until dimension "a" = 5 mm is reached.
• Tighten the nuts again.
