12.7 Adjusting the right cylinder to the locking bolt
1
7
4
8

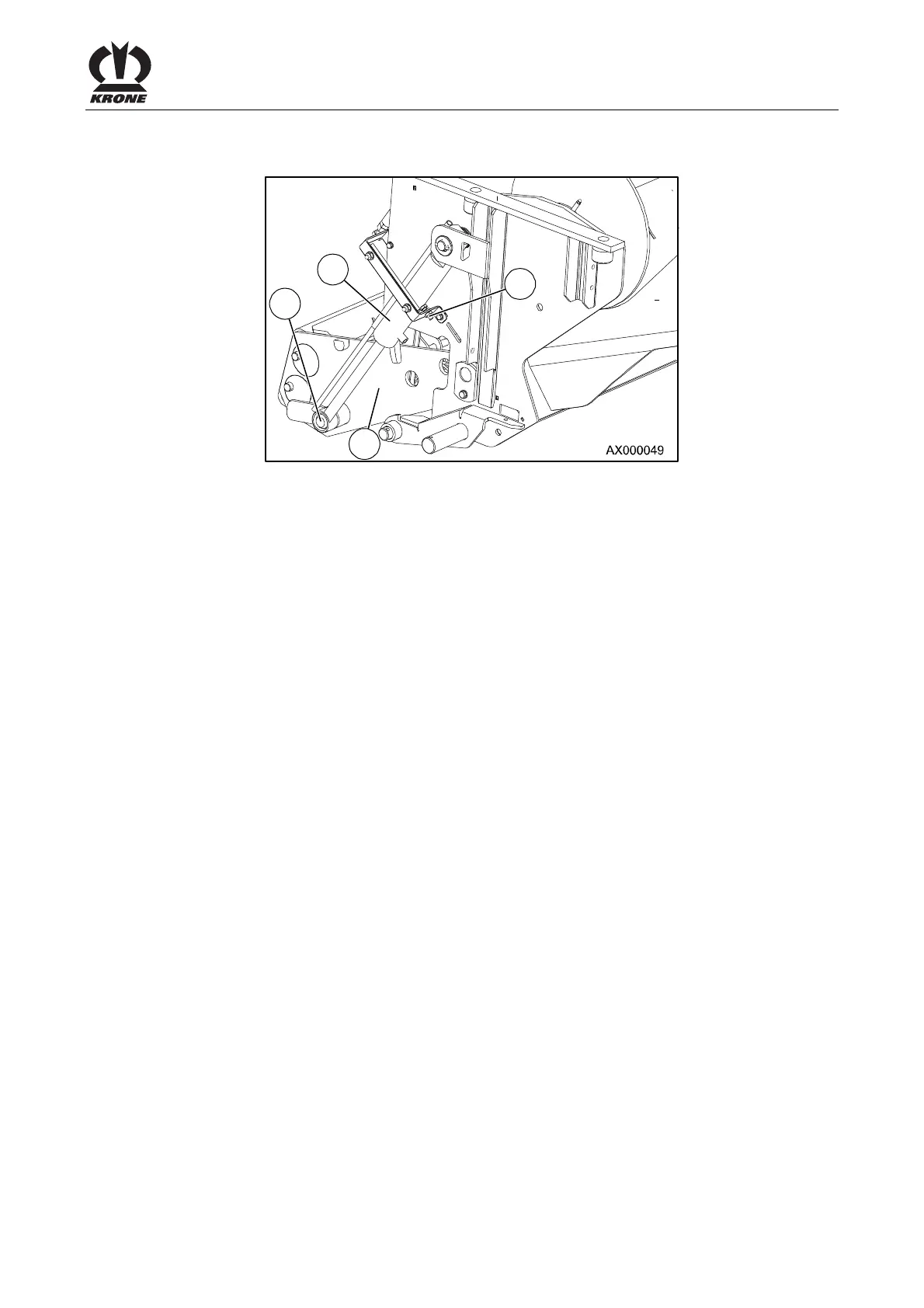

Figure 114:
• The fork pieces (1) of the blade bar must be swivelled all the way forward and be held in
this position.
• By means of the screw (7), adjust the hydraulic cylinder (4) in such a way that the locking
bolt (8) properly snaps into the bolt holder of the cylinder.
