Maintenance
191
Pos: 31.16.4 /Üb erschriften/Üb erschriften 3/P-T /Reifen prüfe n und pflegen @ 0\mod_1197 358037214_7 8.doc @ 1809 4
13.14.1 Checking and maintaining tyres
Pos: 31.16.5 /B A/Wartung/Reife n/Reihenfolg e Reifenmontage @ 0\mod_119 9954083131_ 78.doc @ 373 21
KLWOA-02
1
3
5
7
9
2
4
6
8
10

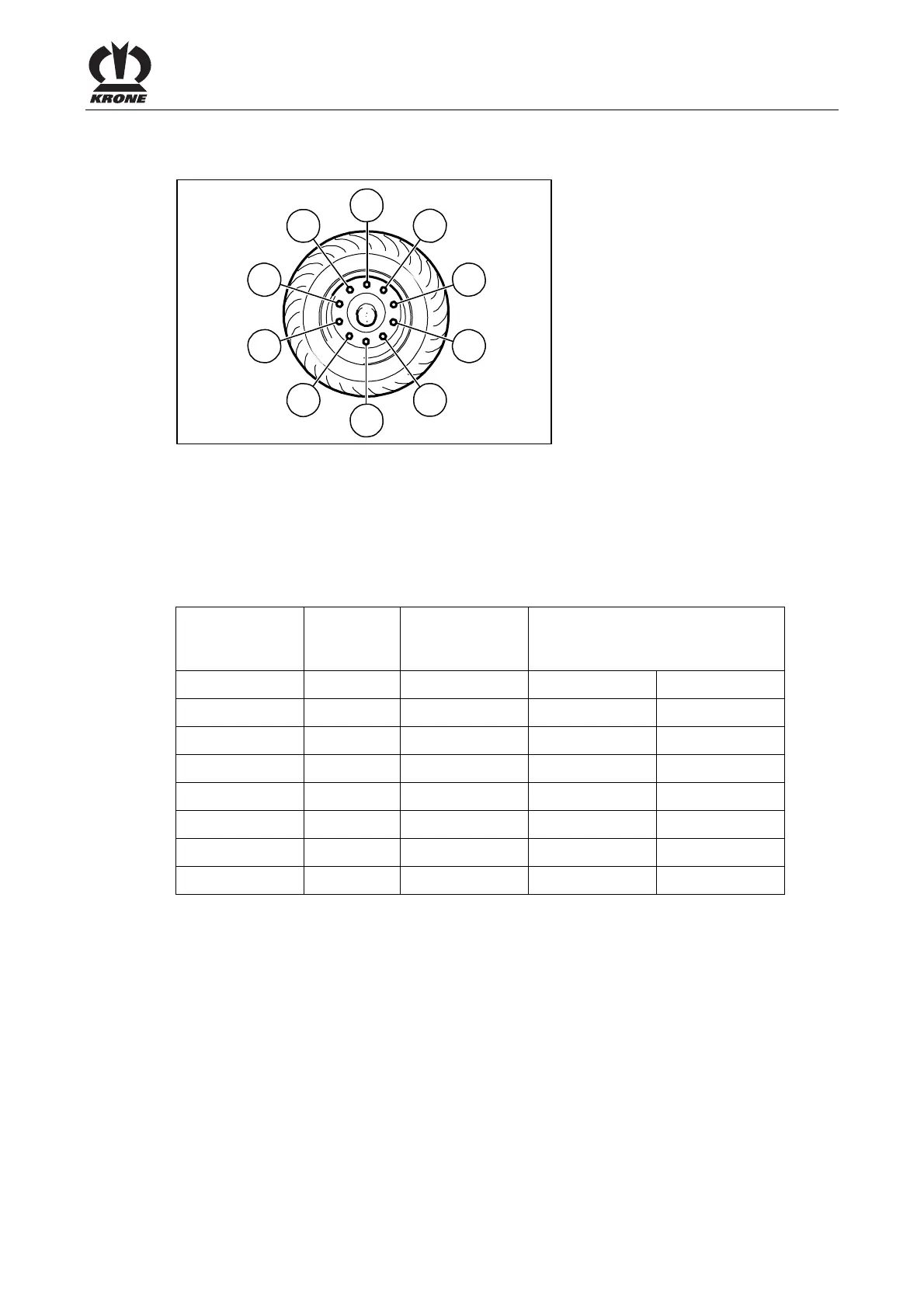

Figure 122
When loosening and tightening the wheel nuts, observe the order indicated in the illustration. 10
operating hours after they have been mounted, check the wheel nuts and retighten them if
necessary. After that, check them every 50 operating hours to make certain they are tight.
Check the tyre pressure at regular intervals and refill if necessary. The tyre pressure depends
on the size of the tyres. The values are listed in the table.
Pos: 31.16.6 /B A/Wartung/Reife n/Anziehdreh moment @ 0\m od_11999559 05460_78.doc @ 37340
Tightening Torque
Threading Key size in
mm
Number of bolts
per hub -
pieces
Max. tightening torque
black galvan.
M12 x 1.5 19 4/5 95 Nm 95 Nm
M14 x 1.5 22 5 125 Nm 125 Nm
M18 x 1.5 24 6 290 Nm 320 Nm
M20 x 1.5 27 8 380 Nm 420 Nm
M20 x 1,5 30 8 380 Nm 420 Nm
M22 x 1.5 32 8/10 510 Nm 560 Nm
M22 x 2 32 10 460 Nm 505 Nm
