Medium Control Unit
53
Pos: 19.1 /Übersc hriften/Übersc hriften 1/A-E/B edieneinheit - Medium @ 2\m od_120307 0410463_78.doc @ 64992
8 Medium Control Unit
Pos: 19.2 /BA/Sich erheit/Gefahr enhinweise/Be dieneinheit sc hützen @ 0\m od_1200308247 867_78.doc @ 39598
Caution! - Protect Control Unit.
Effect: Damage to the control unit
• The control unit must be protected against water.
• If the machine is not used for an extended period of time (for example during the winter),
the control unit must be stored in a dry place.
• For mounting and repair jobs, especially for welding jobs on the machine, disconnect the
power supply to the control unit. Overvoltage can damage the control unit.
Pos: 19.3 /BA/In fo-Center/Lad ewagen/Medium /Allgemeine Beschreibung A X/MX @ 28\m od_12499670 90458_78.doc @ 2 72441
1

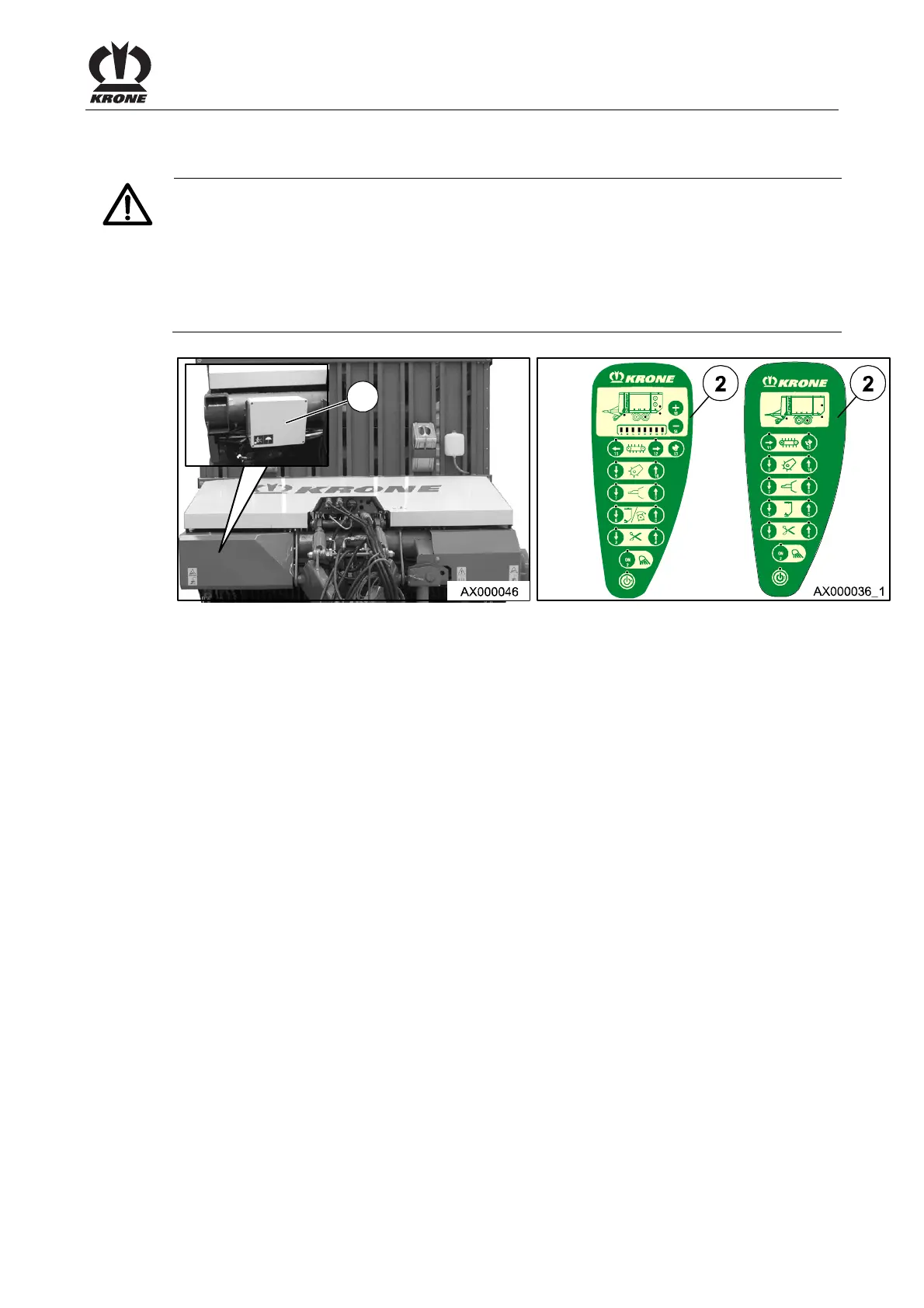

Figure. 18
The electronic equipment of the machine consists essentially of the job computer (1), the control
unit (2) and the control and function elements.
The job computer (1) is located at the front right on the frame of the machine under the guard.
The control unit (2) communicates information to the driver and performs settings to operate the
machine. This information is received and further processed by the job computer.
