Maintenance
206
Pos: 31.34 /BA/ Wartung/Ladew agen/Pick-up-A ntrieb AX @ 3 \mod_1203 942287835_78.doc @ 68395
13.28.2 Pick-up drive
AX000031
a
1

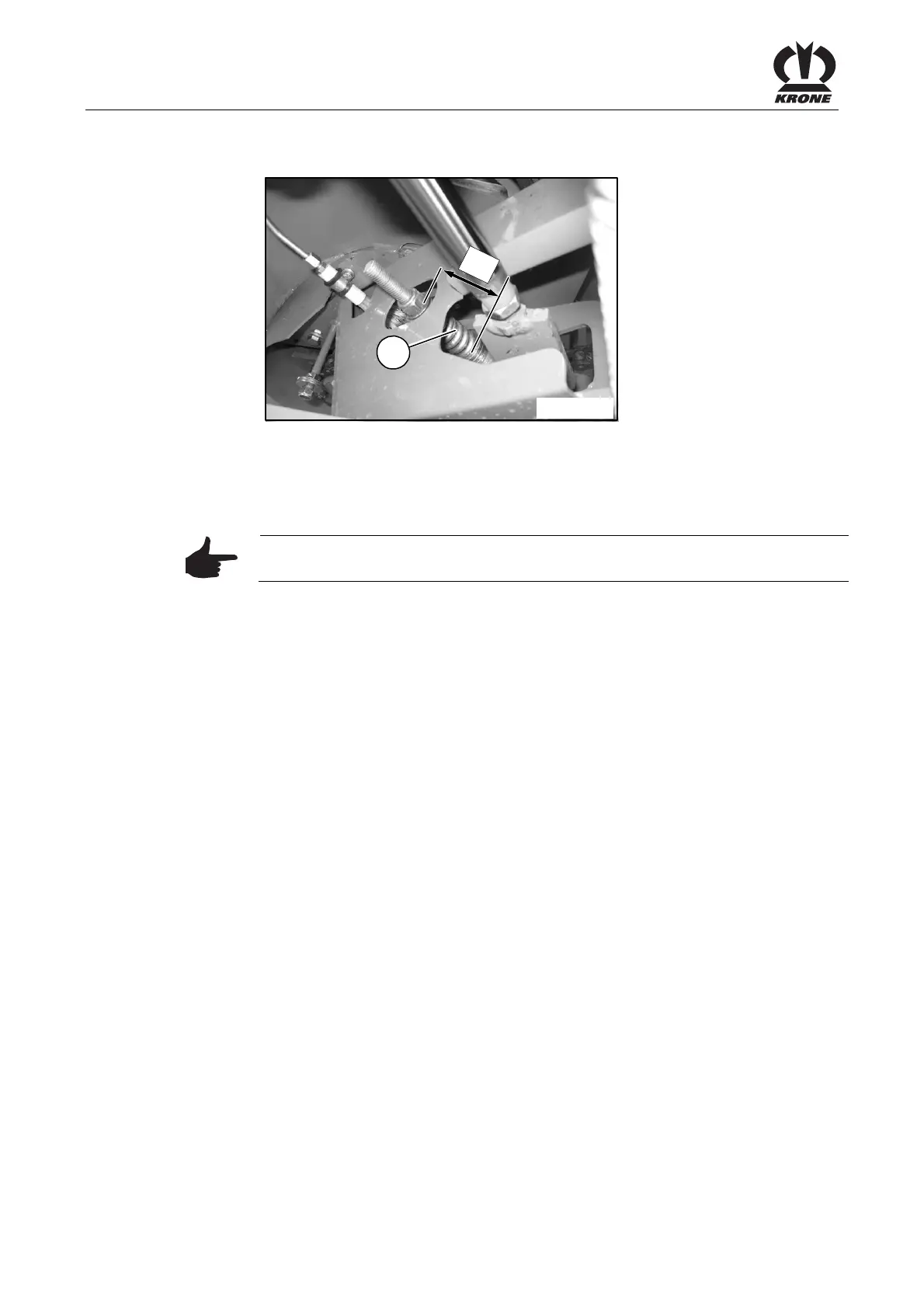

Figure 137:
Check the chain tension
Length of spring under tension a= 70 - 75 mm
Note
Measured up to the top of the washer
To correct the chain tension
Increase or reduce the spring tension of the compression spring (1) until distance a= 65-70 mm
is set.
