Comfort Control Unit
88
Pos: 21.9.1 /BA/ Info-Center/Lad ewagen/Grun dbild Entladeb etreib @ 31\ mod_125232188 3916_78.doc @ 303878

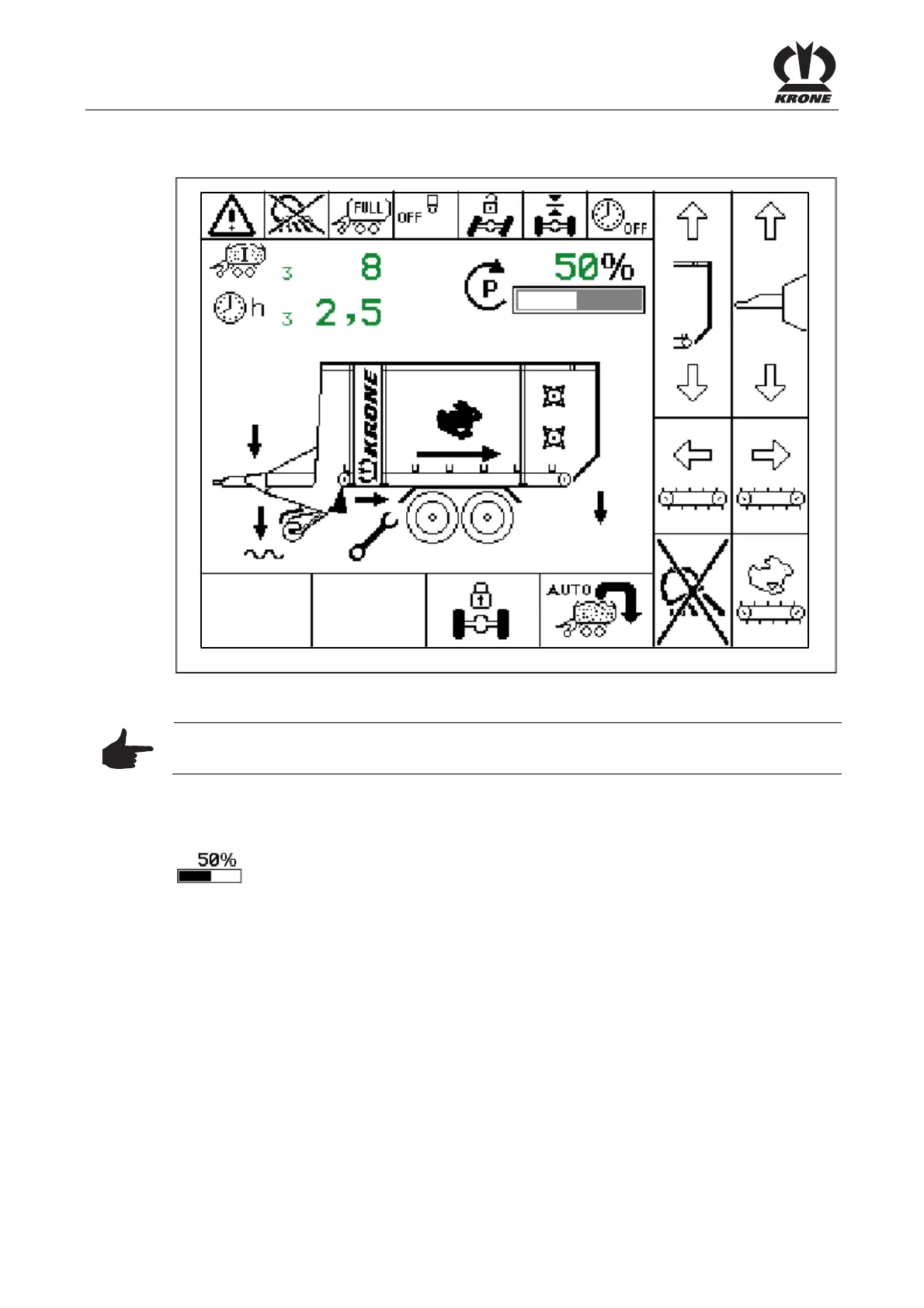

9.7.2 Basic screen image "Unloading operation"
ZX000016_1
Figure 53
Note
For a general description see Section "Basic Screen - Loading Operation"
Differences compared to loading operation.
Pos: 21.9.2 /BA/ Info-Center/Lad ewagen/Sofke ys Entladebetri eb Hauptfenst er @ 0\mod_12 00650556521_ 78.doc @ 462 26
Displays in the main window:
currently set floor conveyor supply speed as a % (only for GD)
Set floor conveyor supply speed
• Turn the rotary potentiometer to set the required floor conveyor supply speed and save
the speed by pressing the potentiometer down.
Pos: 21.9.3 /BA/--- --Seitenumbruc h------ @ 0\ mod_1196175 311226_0.doc @ 4165
