Maintenance
211
Pos: 31.47 /BA/ Wartung/Ladew agen/Abstan d Abstreifer-Tro mmel @ 36\m od_1258715116 334_78.doc @ 3 35608
13.33 Distance from Scraper to Drum
AX000057
1
5
4

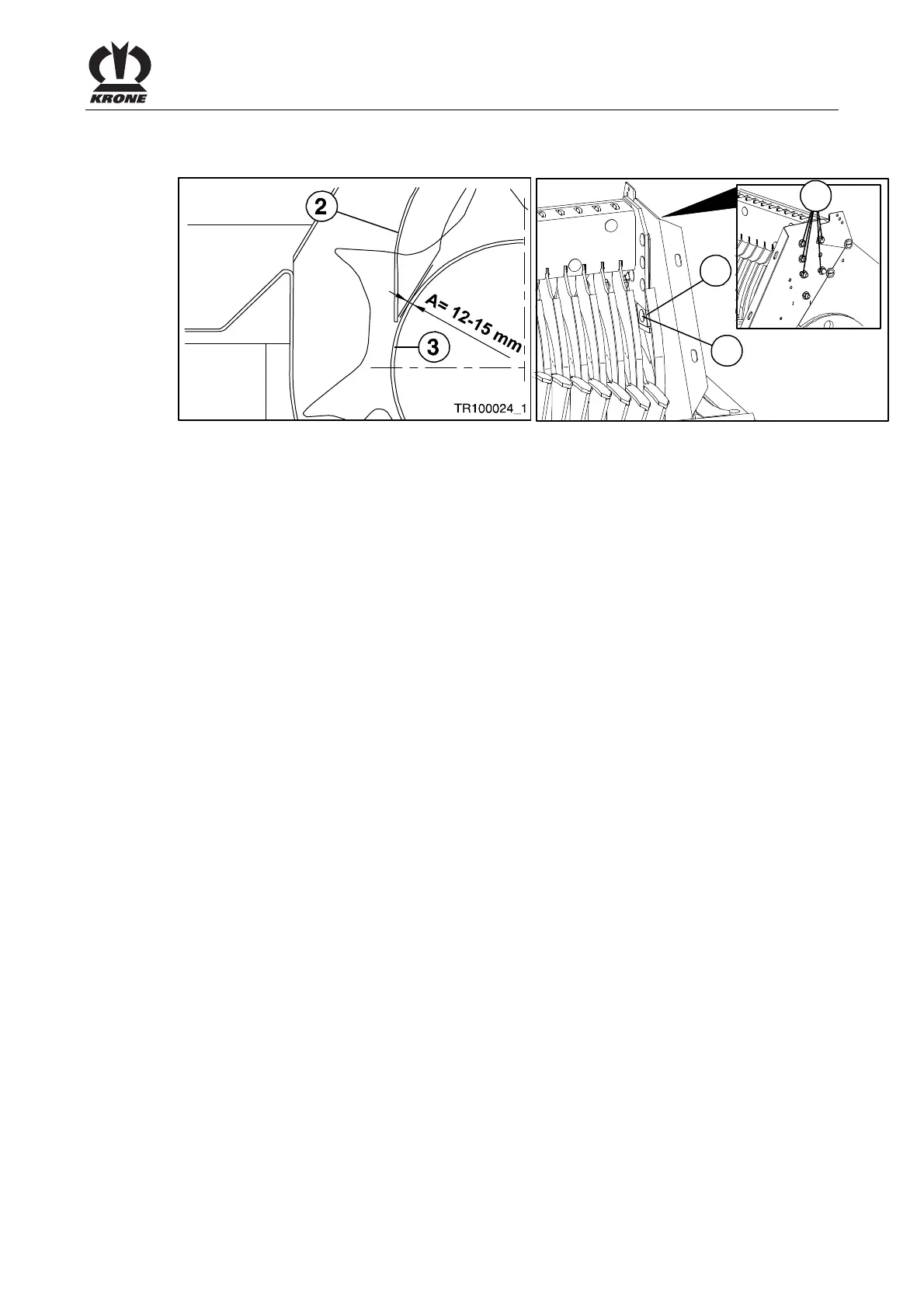

Fig. 144
The scrapers (2) must be at a distance of "A" from the rotating conveyor drum (3).
Setting distance between scraper and drum
• Disconnect all screw couplings (1) from the scraper bar on right and left
• Loosen the screw coupling (4) on the wedge plate (5) (right and left sides).
• Using the wedge plate (5), turn the entire scraper bar until dimension A = 12 - 15 mm is
reached.
• Tighten screw couplings (1) and (4).
