8.7 Swinging cutter in/out

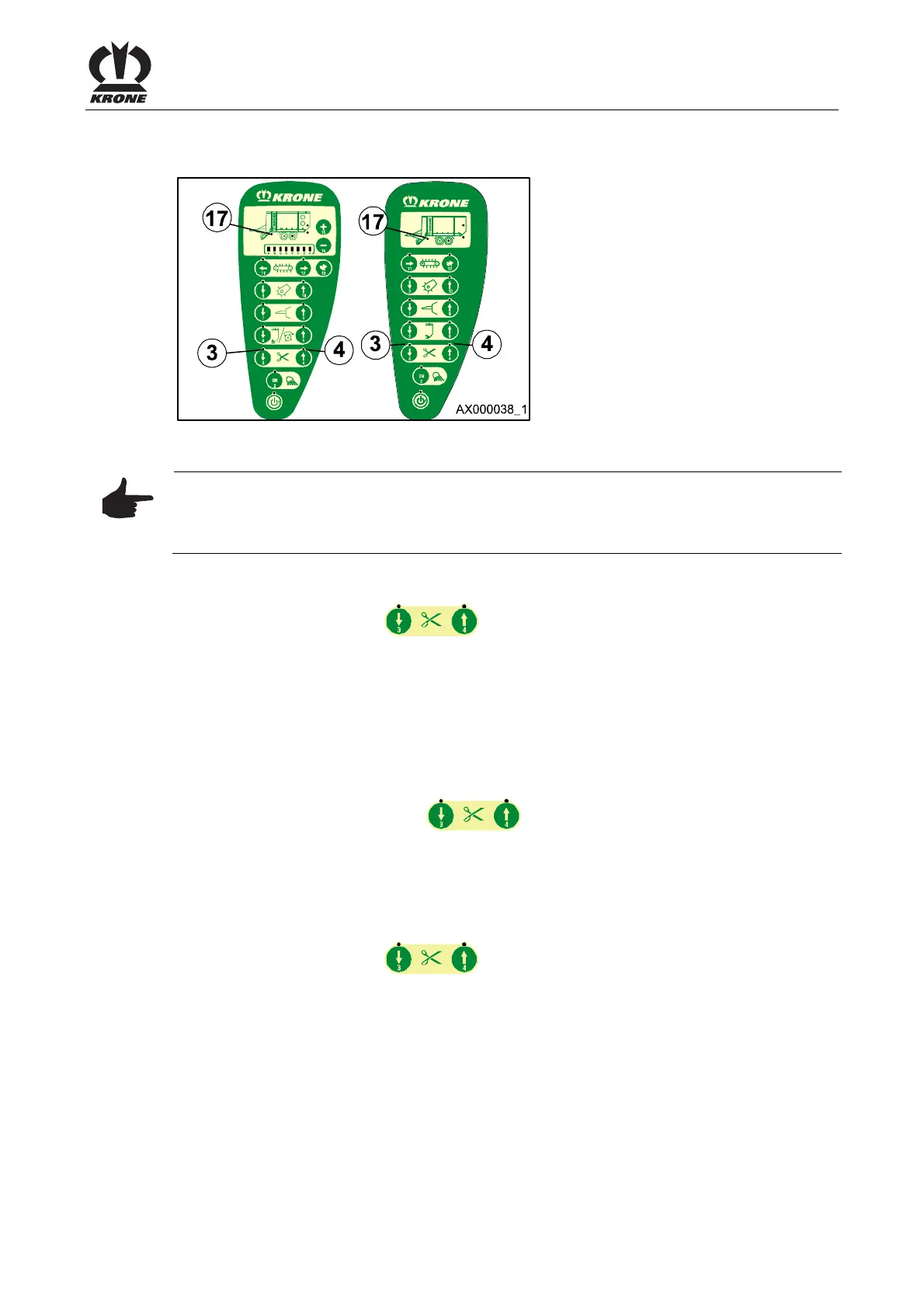

Figure. 25
Note
With the cutters swivelled in, the pilot lamp (17) will be lit permanently.
With the cutters swivelled out, the pilot lamp (17) will start flashing.
If the cutters are in the maintenance position, the pilot lamp (17) goes out.
Swinging cutters out
• By pressing the key (3), the cutters swivel out as long as the key is being
pressed (pilot lamp (3) is lit as long as the key (3) is being pressed). (Pilot lamp (17)
flashes.)
With the cutters fully swivelled out, the pilot lamp (3) will go out and the cutters do not swivel out
any further, despite the key (3) being activated.
Moving the cutters into maintenance position
Cutters are swivelled out.
• By pressing the key (3) again, the cutters swivel out as long as the key is
being pressed (pilot lamp (3) is lit as long as the key (3) is being pressed). (The pilot lamp
(17) continues flashing until the cutters are in the maintenance position). Pilot lamp (17)
goes out.
Swivelling cutters in
• By pressing the key (4), the cutters swivel in as long as the key is being
pressed (pilot lamp (4) is lit as long as the key (4) is being pressed). Once the cutters are
fully swivelled in, the pilot lamp (17) will be lit permanently.
