13.22 Main gearbox
Pos: 31.29.5.2 /BA /Wartung/Öl kontrolle_Wech sel/Ladewag en/Bild_Hauptg etriebe AX @ 3\mod_1203603 078439_78.d oc @ 67543
3
AX000014
2
1

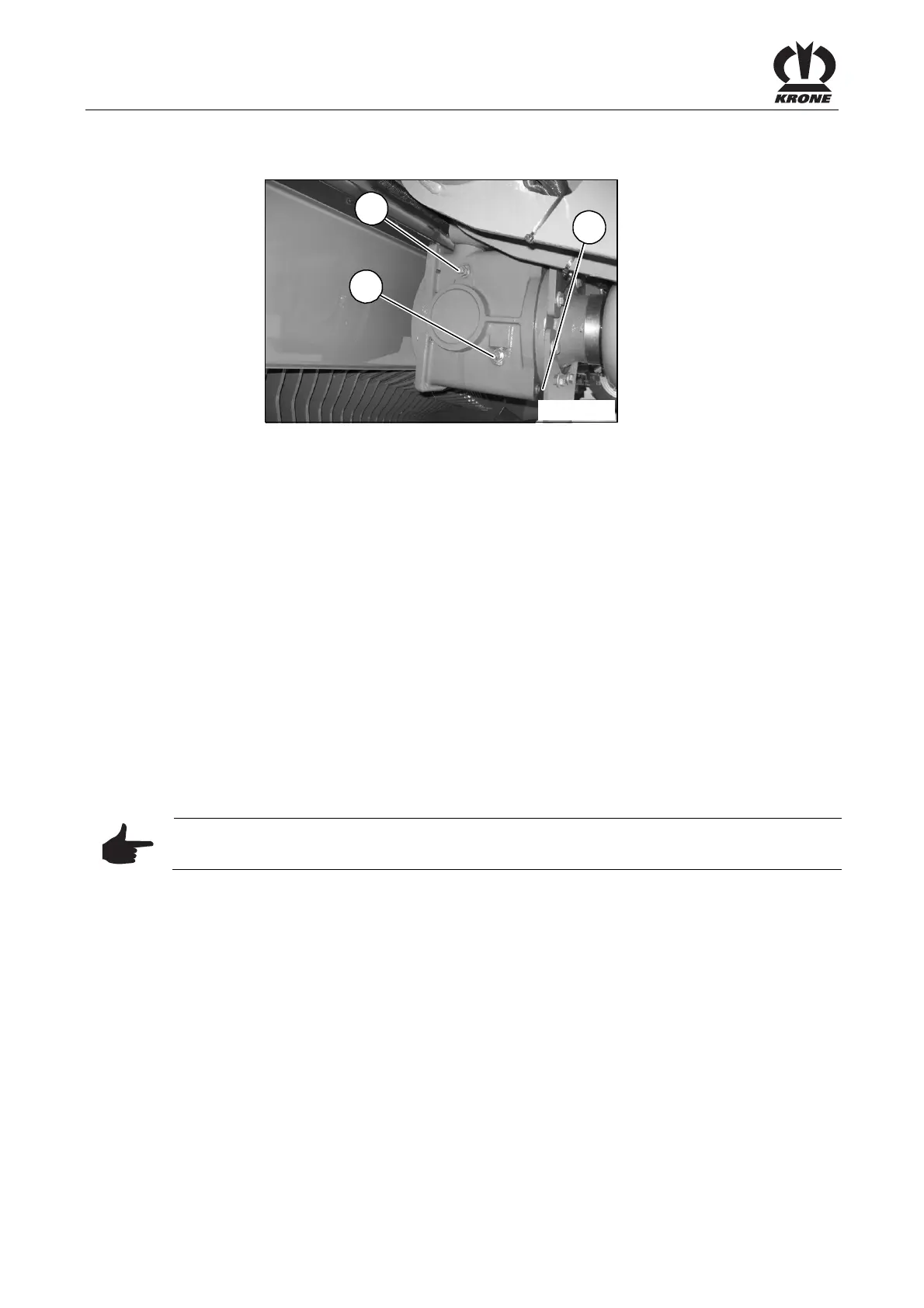

Figure 131:
Pos: 31.29.5.3 /BA /Wartung/Öl kontrolle_Wech sel/Ölkontrolle SAE 90 @ 0\ mod_1197008 973815_78.doc @ 15649
Oil level check:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Unscrew the inspection screw (1)
• Oil level up to bore hole (1)
• If necessary, top up the oil (SAE 90)
• Screw the check screw (1) back in.
Pos: 31.29.5.4 /BA /Wartung/Öl kontrolle_Wech sel/Ölwechsel Version1 (Bel üftungsfilter) @ 0\mod_11970 10026283_78. doc @ 15747
Oil change:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Screw out the screw plug (2).
• Collect the used oil in a suitable drip pan
• Screw in the screw plug (2)
• Fill oil (3) (oil level up to hole (1))
• Screw the inspection screw (1) and ventilation filter (3) back in.
Pos: 31.29.5.5 /BA /Wartung/Öl kontrolle_Wech sel/Ölqualität / Ölmenge: siehe Kapitel @ 0\ mod_1197007 859486_78. doc @ 15531
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 31.29.5.6 /BA /Wartung/Öl kontrolle_Wech sel/Altöl ord nungsgemäß entsorg en @ 0\ mod_1197008117 002_78.doc @ 15550
Note
The used oil must be disposed of correctly
