Maintenance
192
Pos: 31.16.8 /B A/Wartung/Reife n/Reifen-Luftdr uck allgemein @ 0\mod_119 9956852616_ 78.doc @ 373 65
13.14.2 Tyre air pressure
Check the tyre pressure at regular intervals and refill if necessary. The tyre pressure depends
on the size of the tyres. The values are listed in the table.
Pos: 31.16.9 /B A/Wartung/La dewagen/Reifen/R eifen-Luftdruc k Tabelle MX @ 3\mod_1205 906948053_78. doc @ 74236
Tyre identification Minimum pressure
[bar] Vmax<= 10 km/h
Maximum pressure
[bar]
Recommended tyre air
pressure* Vmax<= 10
km/h
500/55-20 TL - 12 PR 1.5 3.2 2.8
620/40 R 22.5 148 D 1.6 3.2 2.4
700/45-22.5-12PR 1.75 2.25 2.0
710/50 R26.5 TL 1.7 2.7 2.3
800/45 R26.5 TL 1.5 2.8 2.3
Pos: 31.16.10 / BA/Wartung/Reif en/Reifen-Luftdru ck Empfehlu ng Ladewage n @ 1\mod_12 01246589463 _78.doc @ 52 262
*) The recommendation applies especially to the typical mixture of operation (field/road). If
necessary, the tyre air pressure can be reduced to the minimum air pressure. In that
case, however, the change in the dynamic behaviour of the tyres must be noted,
especially for road travel.
Pos: 31.17 /BA/ Wartung/Zugöse n a=41,5 an der Deichsel @ 0\mod_119995 7816506_78.d oc @ 37406

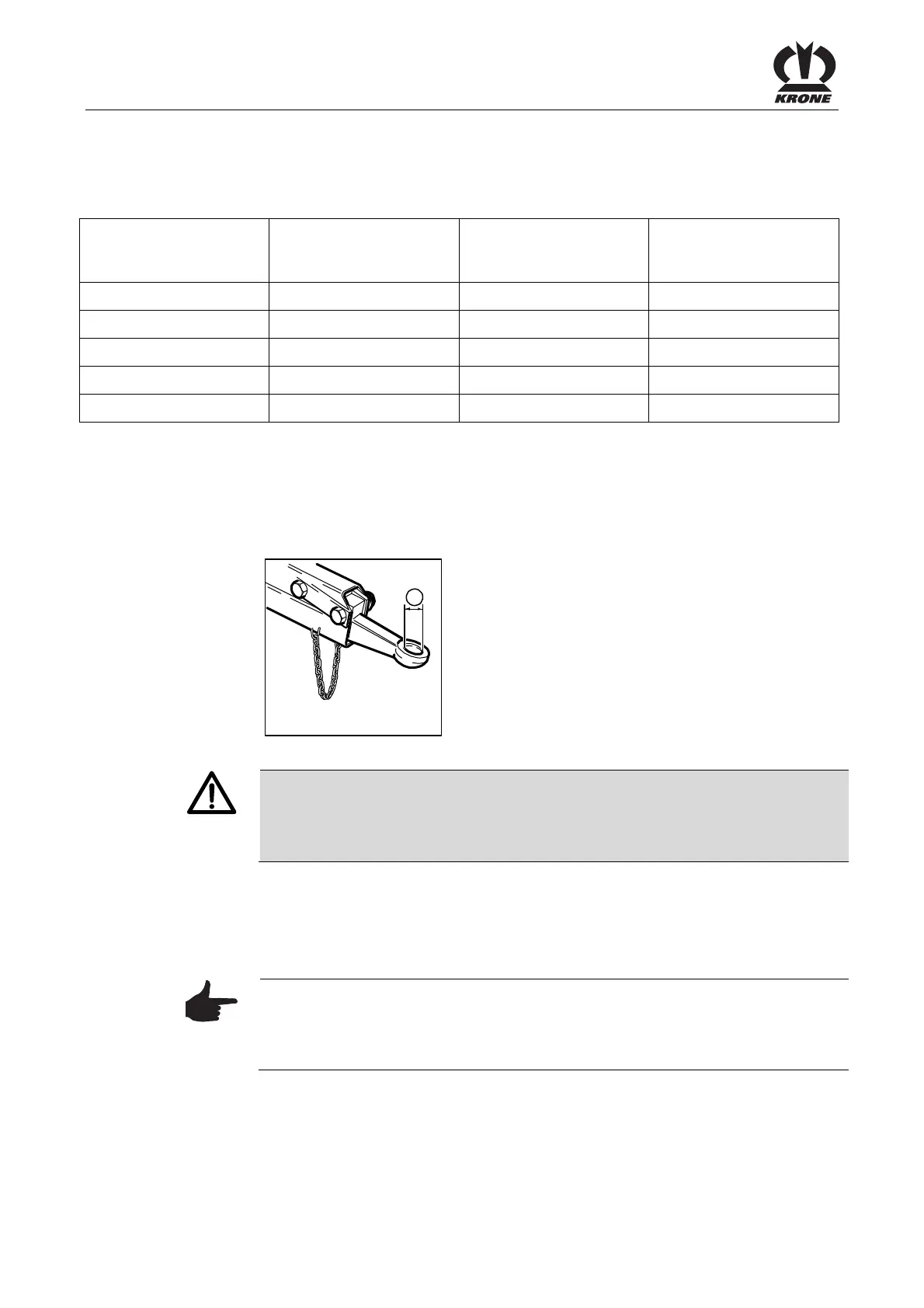

13.15 Hitches on the drawbar
KDW02330
a
Figure 123:
Caution!
If the wear limit of the socket in the hitch has been reached, it must be
replaced. Work on the drawbar must only be performed by trained
professionals.
The wear limit of the socket in the hitch (1) is a = 41,5 mm. If this value is exceeded, the socket
must be replaced. To minimise wear, clean the socket and hitch daily and lubricate them with
grease.
Note
The hitch should be coupled always horizontally in the pick-up hitch.
Observe the correct combination of hitch and pick-up hitch (observe the
specifications on the type plate!)
