Maintenance
209
Pos: 31.40 /BA/ Wartung/Ladew agen/Dosierw erk AX @ 3\m od_1203604892 798_78.doc @ 67723

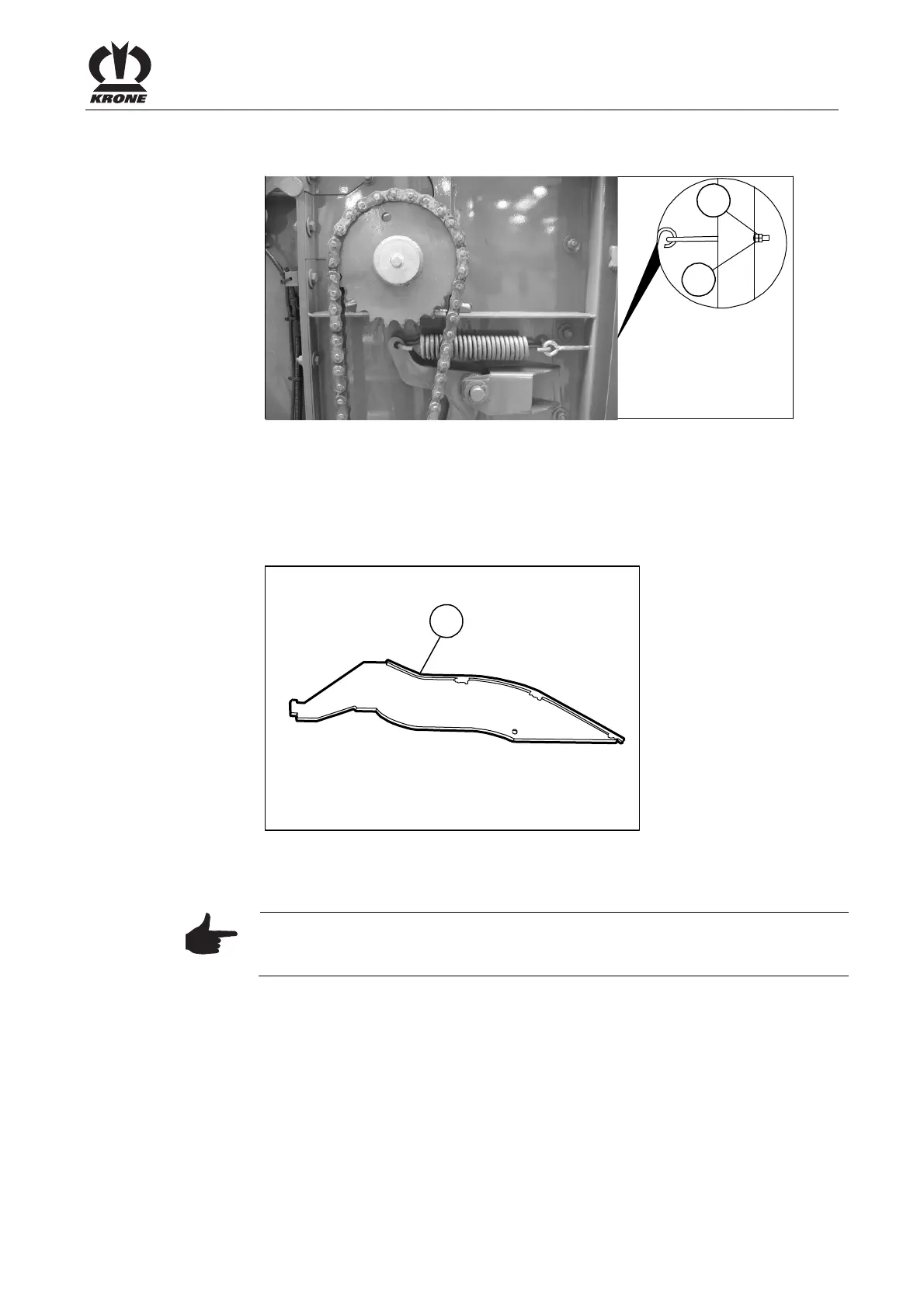

13.30 Discharger
2
1
AX000019
Figure 140:
The discharge roller chain drive is located on the rear right section of the wagon, behind the
panel. The discharge roller drive chain is automatically tensioned by a tension spring. If the
chain tension reduces, loosen the counter nut (1) and tighten the tension spring with the nut (2)
until the chain tension is sufficient. Tighten the counter nut (1) again.
Pos: 31.41 /BA/ Wartung/Ladew agen/Abstreifer @ 0\mod_12 00035326185_7 8.doc @ 3889 6
13.31 Scraper
KLW09030
1
Figure 141:
• Check the back of the scraper (1) after every season for wear and replace if necessary.
Note
The scrapers are located in the front of the loading area on the conveyor
drum.
