8.13 Sensor test
AX000034_1

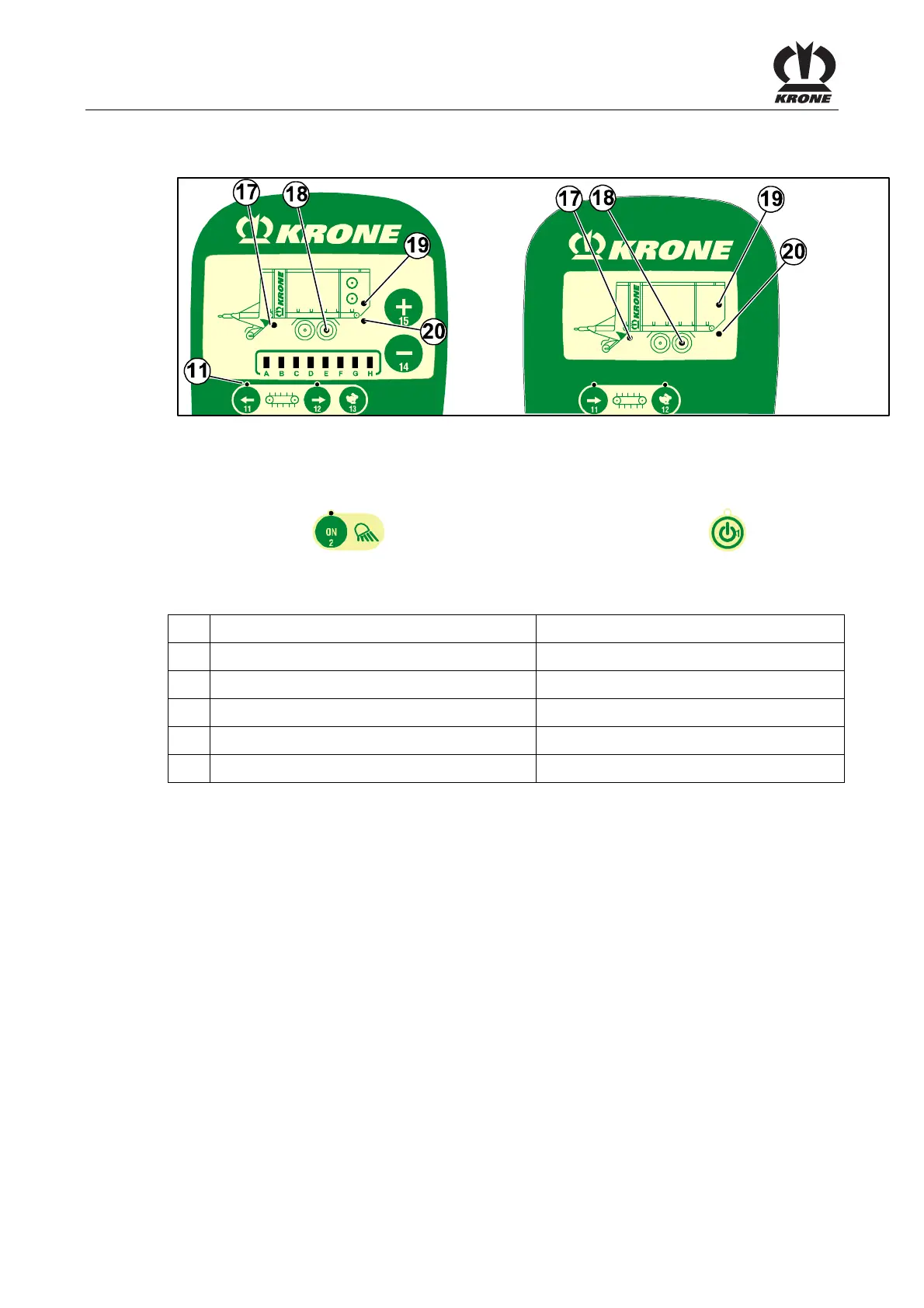

Figure. 31
In the sensor test, the sensors fitted on the machine are checked for errors.
Turning on sensor test.
By keeping the key pressed, switch on the control unit via the key .
The control unit changes to the sensor test (pilot lamp (2) flashes).
Possible sensors (depending on how the machine is equipped)
N° Sensor designation Status options
11 PTO shaft sensor 1,2,3
17 Blade sensor 1,2,3
18 Sensor for axle locked *
1
19 Sensor wagon full 1,2,3
20 Tailgate sensor 1,2,3
*1 Axle locked, pilot lamp (18) lit: Pressure above 100 bar.
Axle is not locked, pilot lamp (18) off: Pressure below 100 bar.
Status options
1 LED on: Alive (iron in front of the sensor)
2 LED off: Not alive (no iron in front of the sensor)
3 LED flashing: Sensor defective (for example: broken cable or short circuit)
