Krone MX 310 GL - Position of Sensors (GD) (Right-Hand Side of the Machine)

Maintenance
195
Pos: 31.19.5 /B A/Wartung/La dewagen/Sens oren/AX (D/GD) Lage der Sens oren rechte Ma schinenseite @ 2\mod_1203 600593408_78. doc @ 67313
13.18 Position of sensors (GD) (right-hand side of the machine)
AX000012
2
5
1
4
3

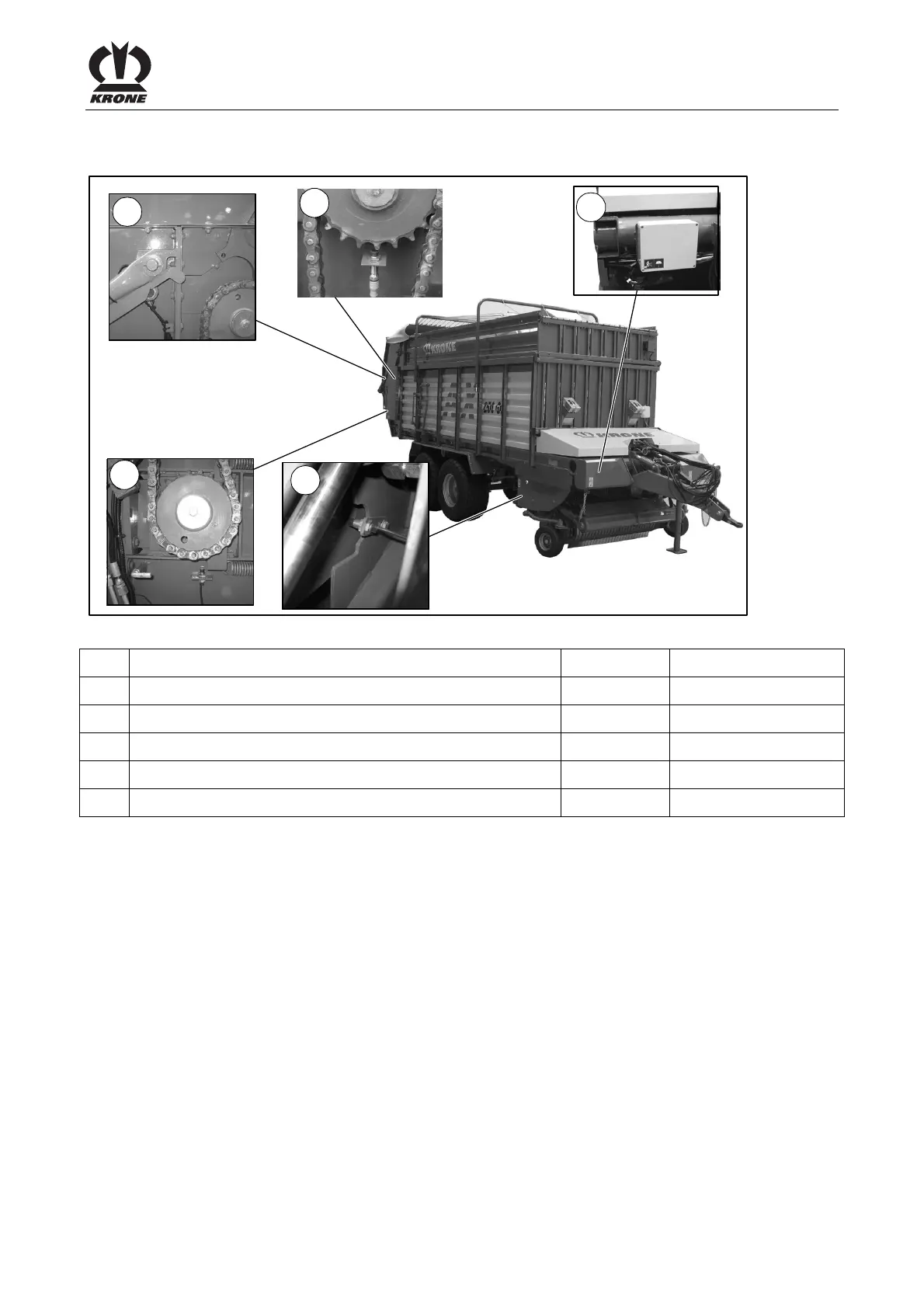

Figure 126:
Item Sensor designation Tightening torque
1 Tailgate (B6) (right) 10 Nm
2 Discharge roller control (B4) (Comfort) 10 Nm
3 Job computer (Comfort)
4 Cutter active/inactive (B1) 10 Nm
5 Floor conveyor switch-off unit (B3)
