13.32 Distance from Blade to Drum
KDW04040
1
2

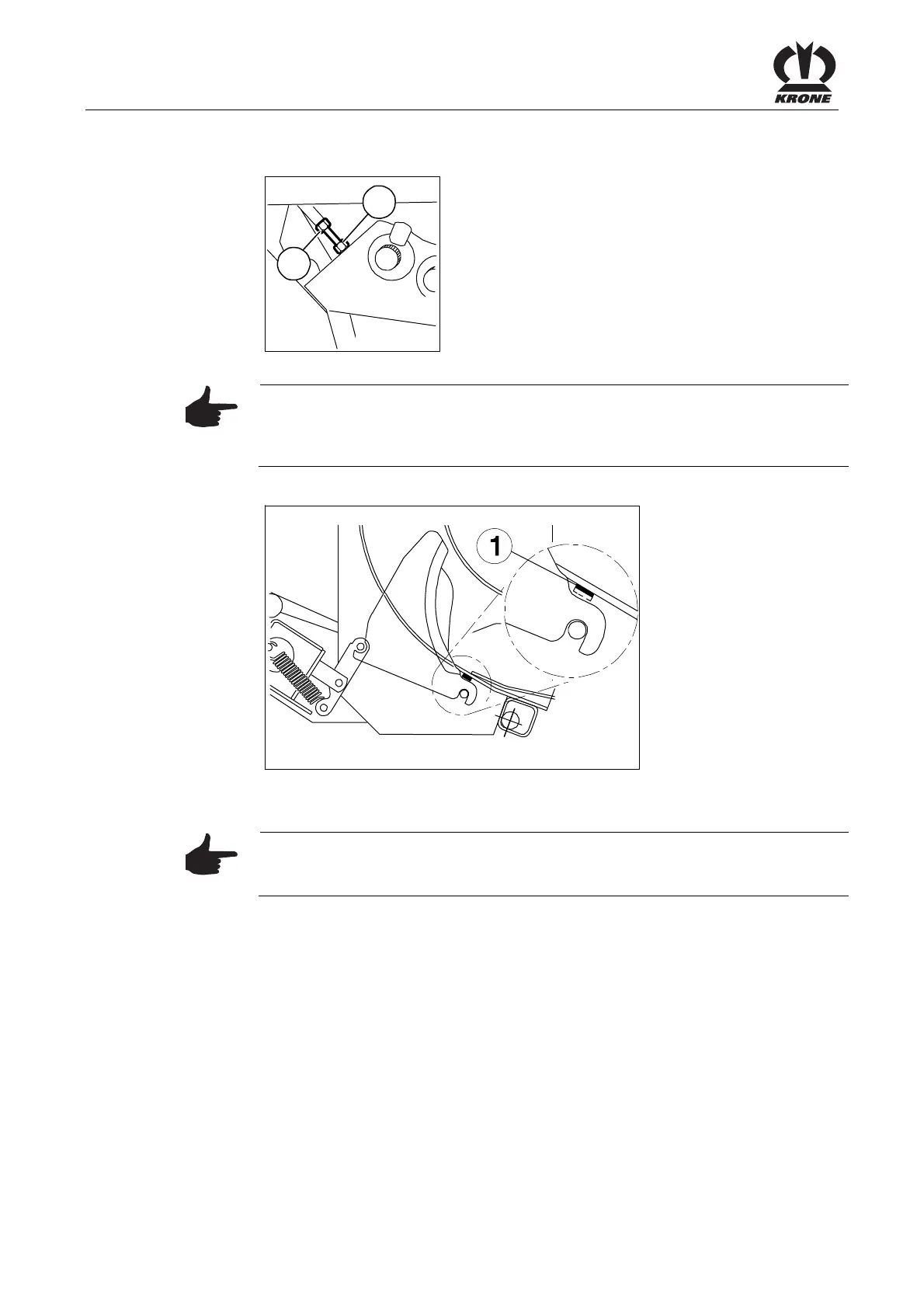

Figure 142:
Note
The distance from the blade to the drum is optimally set in the factory by
adjustment screws (2) and counter nuts (1) and must therefore not be
changed.
Pos: 31.44 /BA/ Wartung/Ladew agen/Anschlag leiste (AX/MX) @ 14\mod_12 31400723366_ 78.doc @ 171 871
XXL00004
Fig. 143:
At the end of the season, the stop bar (1) must be checked for wear.
Pos: 31.45 /BA/ Wartung/Ladew agen/Anschlag leiste Hin weis (MX) @ 14\mo d_12314009998 97_78.doc @ 171917
Note
If the thickness of the material (t=6 mm) of the stop bar
(Part No. 20 052 676 0) has been reduced by half, it must be replaced.
