Comfort Control Unit
132
Pos: 21.15.23 / BA/Info-Center/L adewagen/H auptmenüs/Ha uptmenü 4 Ser vice/Diagnose a naloge Aktoren ( GD) @ 0\mo d_120092705 2963_78.doc @ 48588

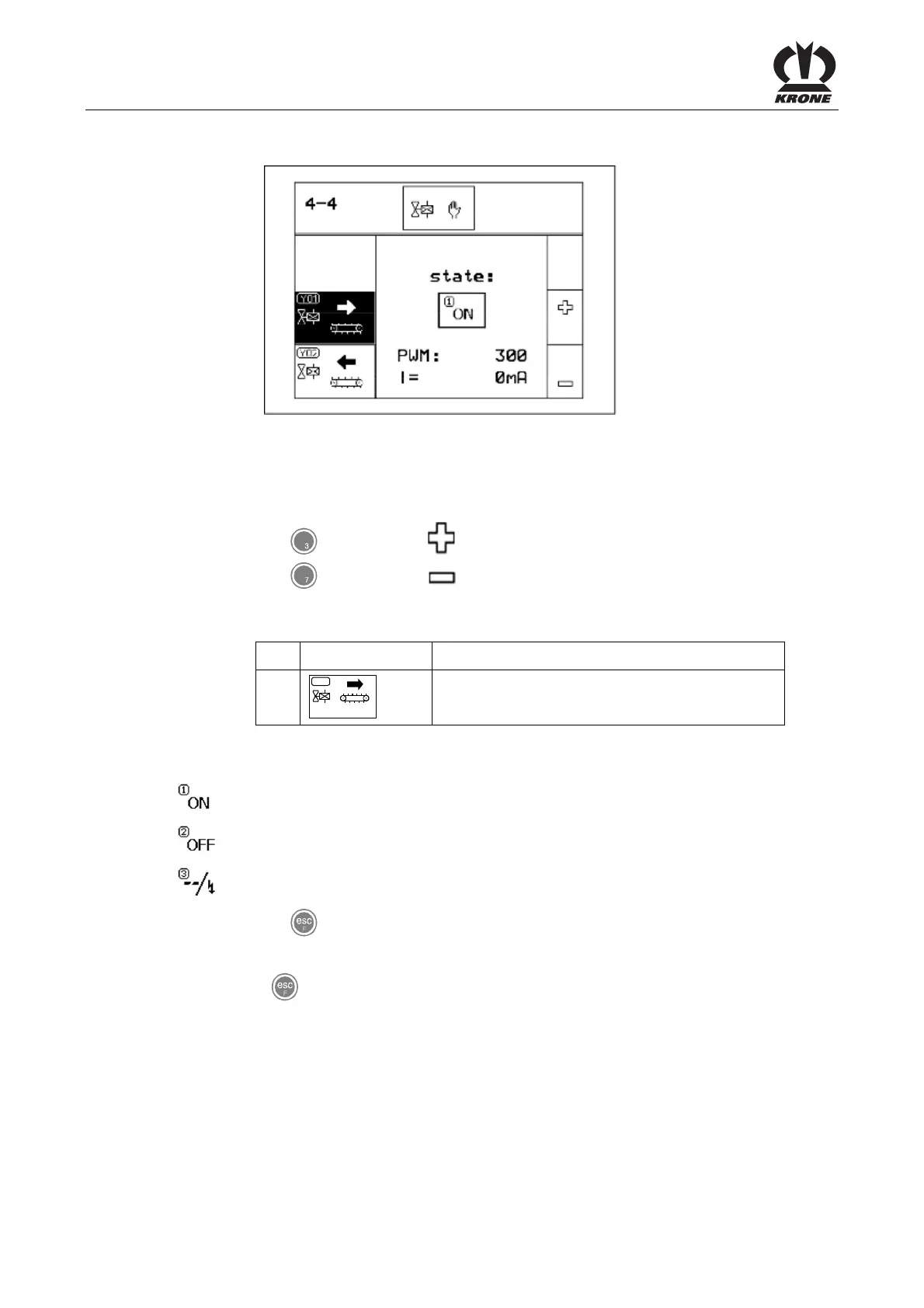

Diagnostics analogue actuators (GD)
DL400260
Figure 92:
A current (in mA) can be created with the PWM value (in parts per thousand).
If the PWM value = 500, the current should be between 500 mA and 3000 mA (depending on
the valve that is used)
• Press the
key for softkey ; PWM is increased.
• Press the
key for softkey ; PWM is decreased.
Possible analogue actuators
No. Icon Description
Y01
Y05
Floor conveyor SUPPLY
State:
Actuator on
Actuator off
No power supply; fuse is probably defective
• Press the
key to close the menu currently displayed.
The display shows menu level 4 "Service".
Pressing the key and holding it down brings up
the
basic screen.
