Comfort Control Unit
131
Pos: 21.15.21 / BA/Info-Center/L adewagen/H auptmenüs/Ha uptmenü 4 Ser vice/Diagnose dig itale Aktoren (G L + GD) @ 4 \mod_1211371 682125_78. doc @ 83675

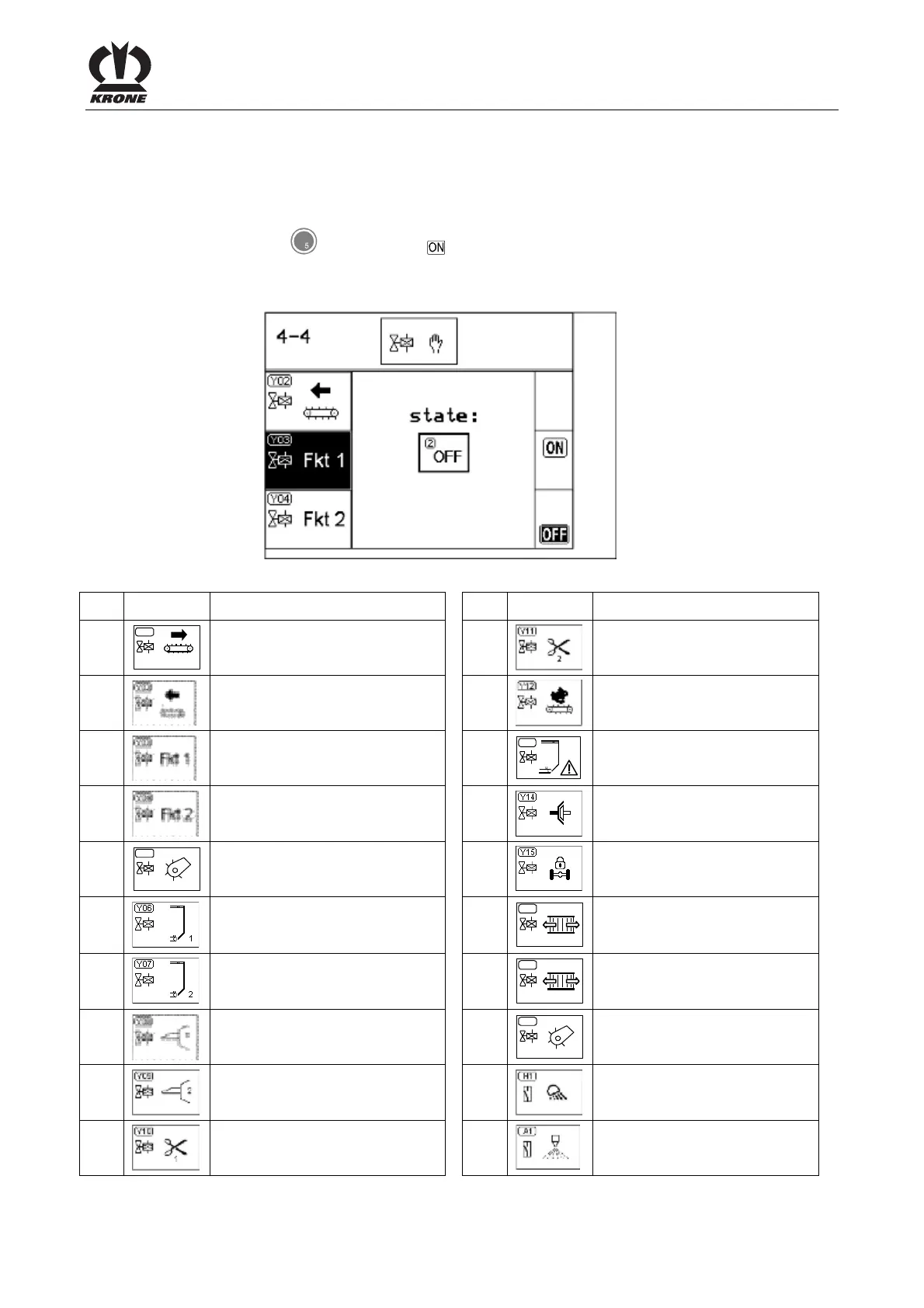

Diagnostics digital actuators (GL + GD)
Errors are only displayed if the actuator is turned on and a test is possible for the actuator (see
the table called "Possible digital actuators"). If necessary, the LED on the plug right on the
actuator can be used for monitoring.
• Press the key for softkey to activate the floor conveyor.
Possible digital actuators. (depending on how the machine is fitted)
DL400270
Fig. 91:
N° Icon Description
N° Icon Description
Y01
Y05
Floor conveyor SUPPLY (GL) Y11
Blade bar 2
Y02
Floor conveyor REVERSE (GD)
Y12
Rapid traverse
Y03
Function valve 1 Y13
Y13
Tailgate safety valve
(Titan (GL)/5XL,6XL (R/GL))
Y04
Function valve 2 Y14
Discharge roller coupling (GD)
Y05
Y05
1
Pick-up 1 Y15
Axle lock
Y06
Tailgate 1 Y16
Y16
1
Cross conveyor 1
Y07
Tailgate 2 Y17
Y17
2
Cross conveyor 2
Y08
Offset drawbar 1 Y18
Y18
2
Pick-up 2
Y09
Offset drawbar 2 H1
Machine lighting
Y10
Blade bar 1 A1
Silage agents
