Operation
160
Pos: 25.16.4 /B A/Bedienung /L adewagen/Abst ellen/Bild Abst ellen AX @ 3\ mod_120393 7011460_78.doc @ 68215
TRD00051
9
1
AX000026
4
5

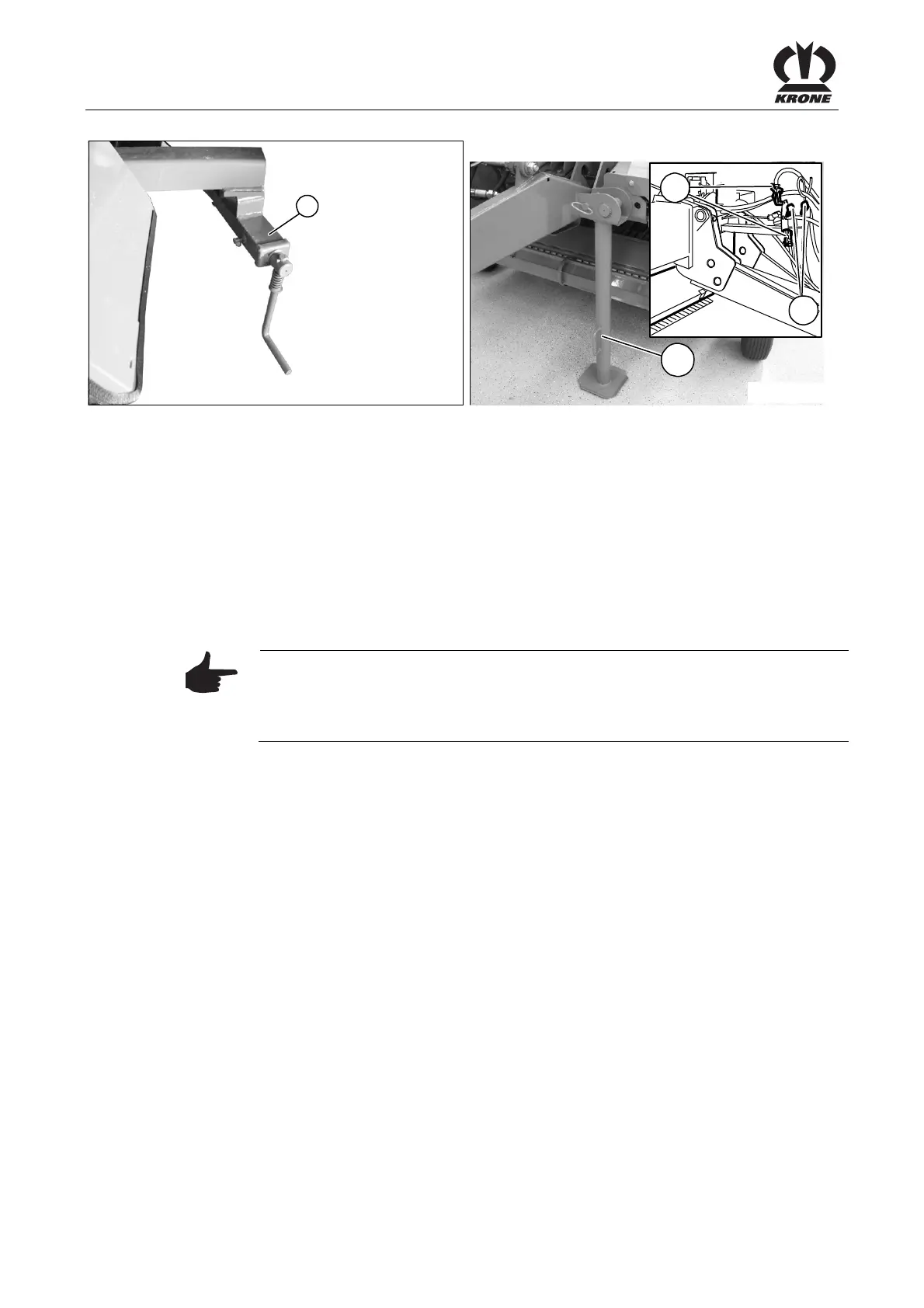

Figure 103:
Pos: 25.16.5 /B A/Bedienung /L adewagen/Abst ellen/Abstelle n_1_AX @ 3\ mod_1203926 224585_78.doc @ 68055
When parking the machine, follow these steps:
• Secure the machine with the parking brake (9).
• Raise the wagon slightly with the offset drawbar.
• Lower the support (1) and secure it in place.
• Carefully lower the offset drawbar until the support (1) rests on the ground.
Pos: 25.16.6 /B A/Bedienung /L adewagen/Abst ellen/Abstelle n_2 @ 1\mod _120118269260 6_78.doc @ 51 877
• Relieve all pressure from the hydraulic system.
• Disconnect the hydraulic hoses (4) from the tractor.
• Disconnect the compressed air hoses (5).
Note
Insert the disconnected hydraulic hoses (4) into the designated receiving
pieces on the offset drawbar to prevent dirt from getting into the connection
pieces. Use cover caps to close off the hose ends.
• Disconnect the electrical connections.
