Danger!
Road travel and start-up
Effect: Danger to life, injuries or damage to the machine.
Before road travel or start-up, make certain the cutting system is properly
swivelled in and secured.
The cutting system must be raised (working position).
Pos: 27.6.20 /B A/Einstellungen/ Ladewagen/Sc hneidwerk/Mess er einbaue n AX @ 2\mod_1 203586735283 _78.doc @ 66 935
1
2
AX000010
3
5
4
6
7

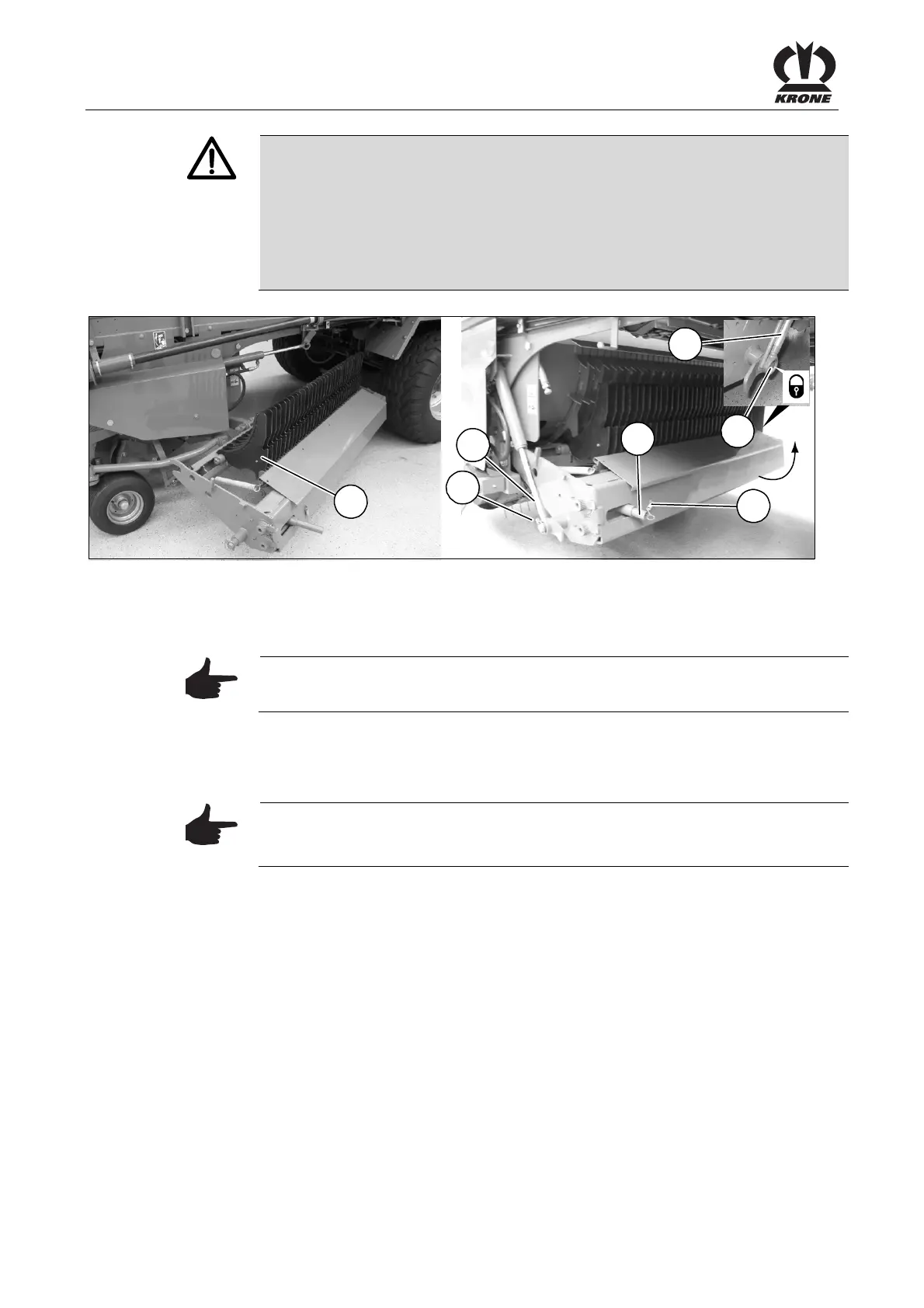

Figure 112:
• Inserting cutters (5).
• Swivel in the cutting system
Note
Make sure that the cutting system is locked properly.
• Retract lever (2) and secure with spring (1).
• Connect the cylinder (3) to the cutting system and secure it with the linch pin (4).
Note
Before the cutting system is retracted, check to make certain all the cutters
(5) are correctly installed. They should form a straight line.
• Raise the cutting system via the control panel.
• Switch off the engine and remove the ignition key.
• Adjust the desired number of cutters (chop length) (see chapter "Adjusting the chop
length").
