Medium Control Unit
57
Pos: 19.13 /BA/I nfo-Center/La dewagen/Mediu m/Übersicht B eschreibung der Tasten und K ontrollleuchten @ 28\mod_1 249906060160_ 78.doc @ 2720 83

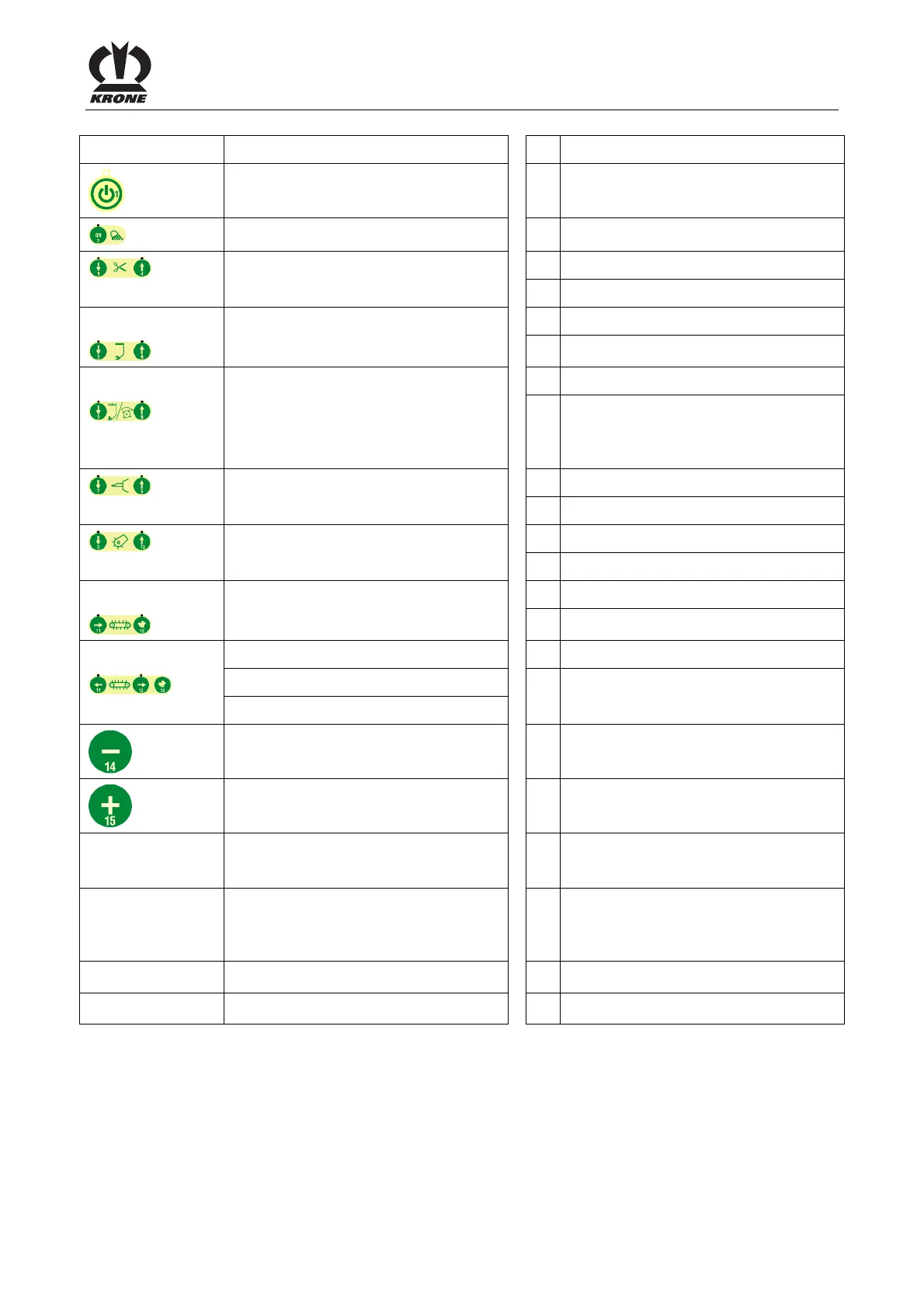

Keys
Indicator lamps
ON/OFF key
1 ON/OFF and messages/alarms
Work lights ON/OFF
2 Work lights
Swivel out cutter (3)
Swivel in cutter (4)
3 Cutter is swivelled out
4 Cutter is swivelled in
GL design
Close tailgate (5)
Open tailgate (6)
5 Tailgate is opened
6 Tailgate is closed
GD design
Close tailgate (5)
Open tailgate (6)
5 Tailgate is opened
6 Tailgate is closed
With activated cross conveyor the
metering rollers are switched on.
Lower offset drawbar (7)
Lift offset drawbar (8)
7 Offset drawbar is lowered
8 Offset drawbar is lifted
Lower pick-up (9)
Lift pick-up (10)
9 Pick-up is lowered
10
Pick-up is lifted
GL design
Floor conveyor supply (11)
Floor conveyor rapid traverse (12)
11
Floor conveyor supply active
12
Floor conveyor rapid traverse active
GD design
Floor conveyor reverse (11)
11
Floor conveyor reverse active
Floor conveyor supply (12)
12
Floor conveyor supply active
Floor conveyor rapid traverse (13)
"-" minus key
16
Bar graphs (floor conveyor speed)
"+" plus key
17
Position cutter
18
Axle locked (indicator lamp lit)
Axle released (indicator lamp off)
19
Position wagon full (indicator lamp on)
Position wagon empty (indicator lamp
off)
20
Position tailgate
