Kyocera TASKalfa 6501i - Page 705

2N8/2N7
1-5-93

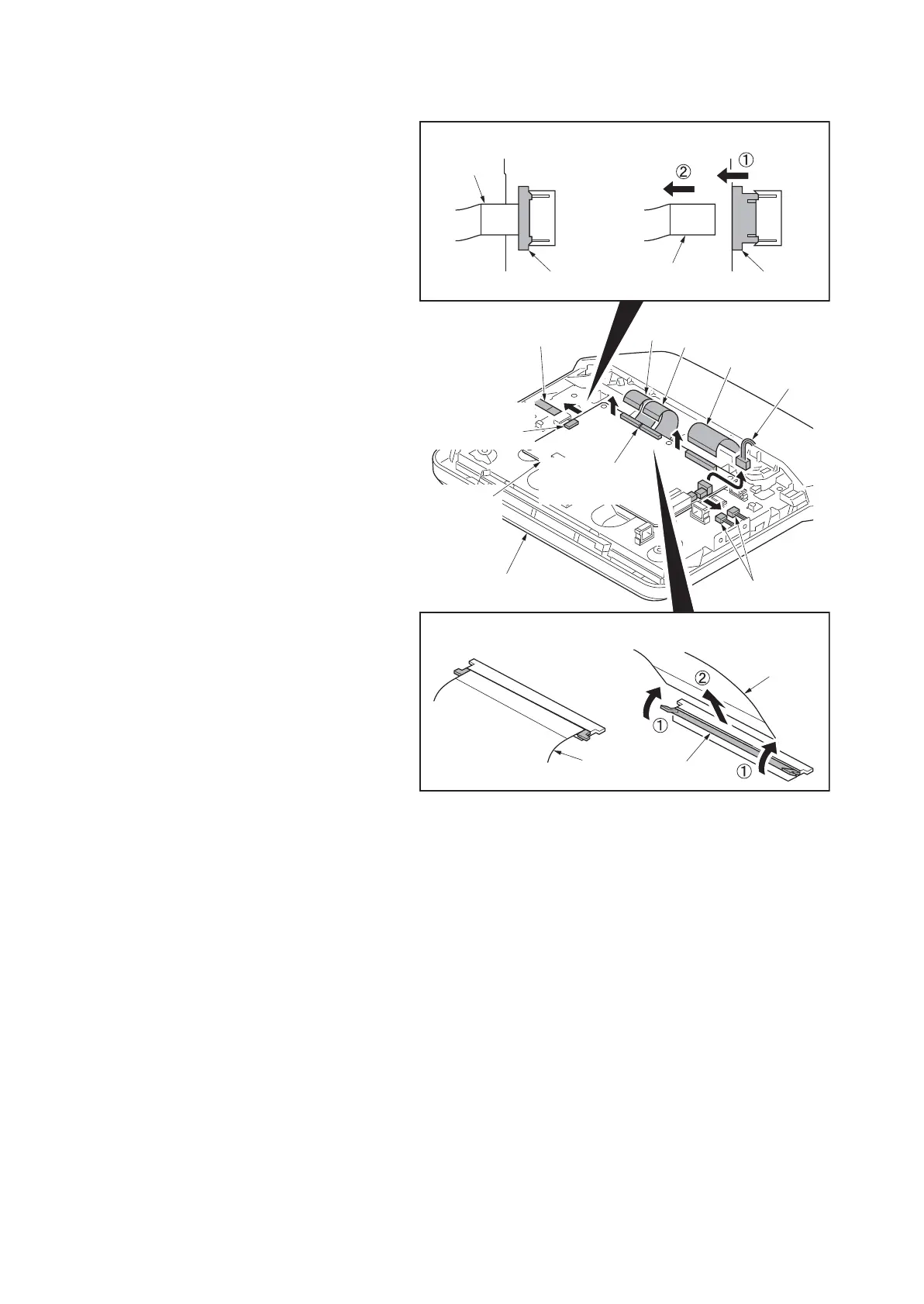

10. Remove three connectors and four
FFCs from the operation PWB.
*: To remove the FFC from the locked
connector A, unlock the connector by
raising the lock lever.
*: To remove the FFC from the locked
connector B, unlock the connector by
sliding the stopper.
Figure 1-5-147
Operation unit
FFC
FFC
FFC
Operation
PWB
FFC connector
with a lock A
FFC connector
with a lock B
Connectors
Connectors
FFC
FFC
FFC
FFC
[State of lock]
[State of lock]
Lock lever
[Lock release/FFC detaching]
[Lock release/FFC detaching]
Stopper
Stopper
FFC
