Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 169

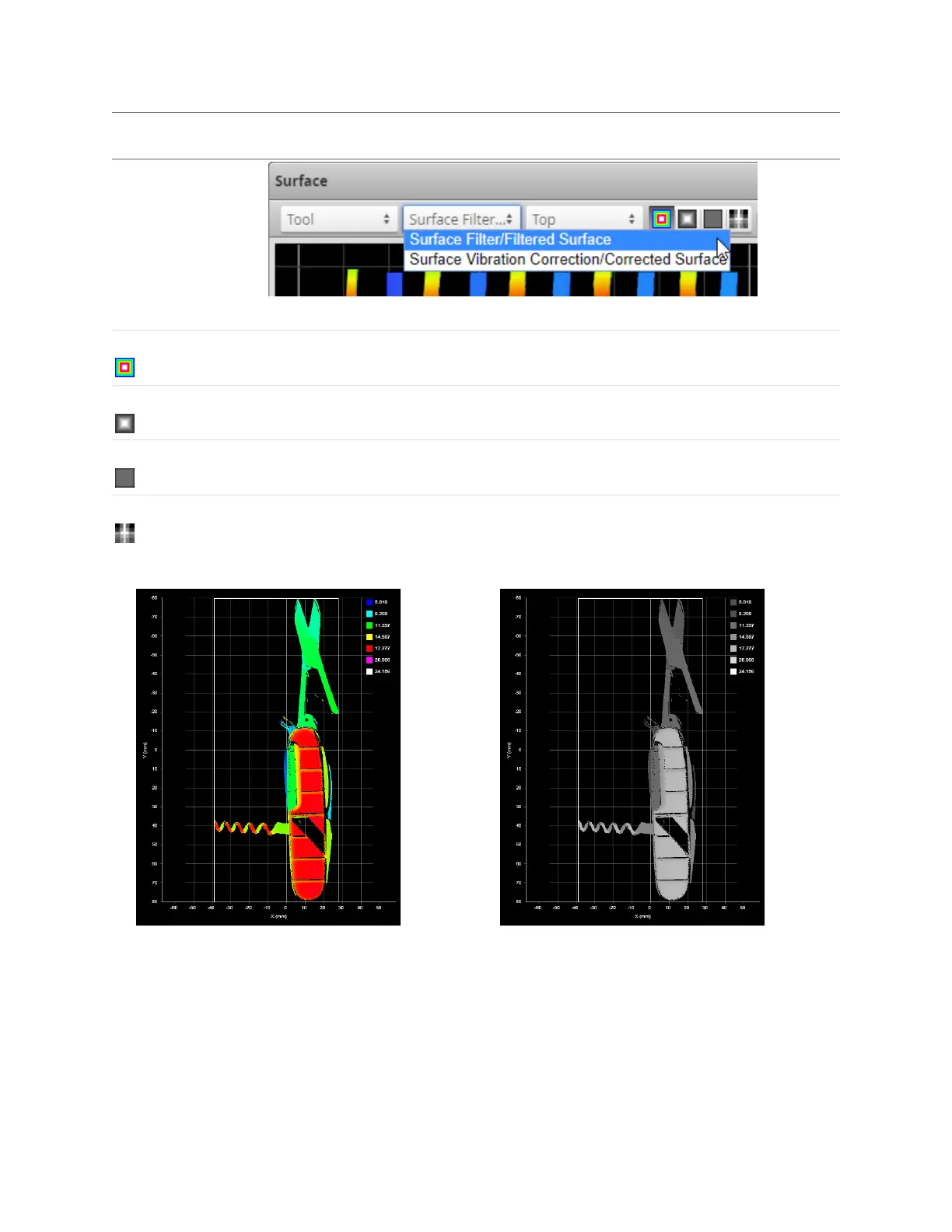

Data Type Option or
Button
Description
For more information on tool data output, see Tool Data on page 73.
Heightmap button In 2D view, displays the pseudo color height map.
In 3D view, overlays the 2D pseudo color height map on the 3D model.
Grayscale button In 2D view, displays the grayscale height map.
In 3D view, overlays the grayscale height map on the 3D model.
Uniform button Overlays a uniform shaded surface on the 3D model. (Only available in 3D view.)
Intensity button In 2D view, displays the intensity.
In 3D view, overlays the intensity map on the 3D model.
(Acquire Intensity must be checked in the Scan Mode panel for this button to be visible.)
2D viewer with height map overlay 2D viewer with grayscale overlay
