LMI Technologies Gocator 2500 Series User Manual

Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 212

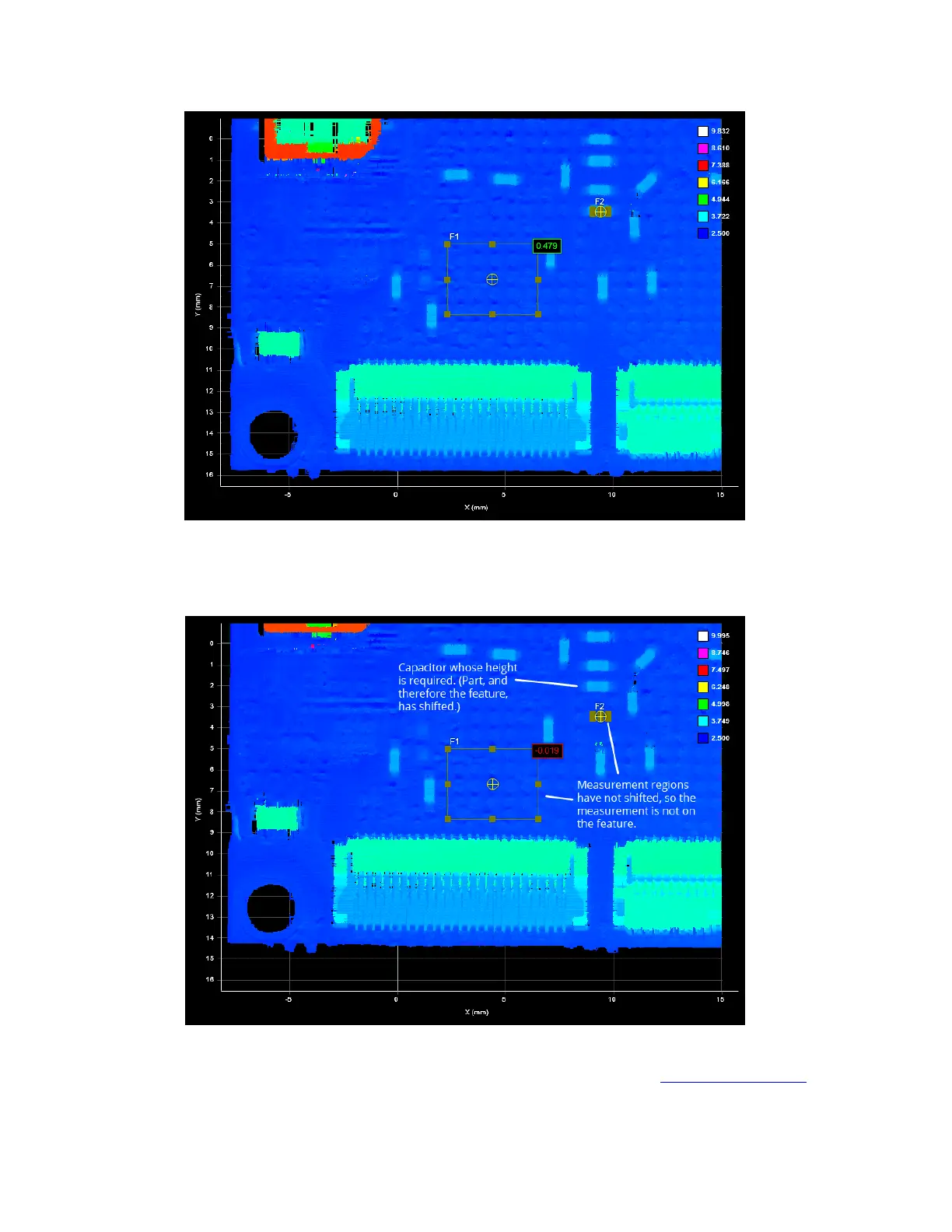

In the following scan, the part has shifted, but the measurement regions remain where they were
originally configured, in relation to the sensor or system coordinate system, so the measurement
returned is incorrect:
When you set a tool's anchor source, an offset is calculated between the anchored tool and the anchor
source. This offset is used for each frame of scanned data: the anchored tool's measurement region is
placed in relation to the anchor source, at the calculated offset.
